LOWER UNIT 9-3
!
To prevent injury from propeller blades, wear gloves
and place a block of wood between the anti-cavitation
plate and the propeller blade tips to lock the propeller
in place.

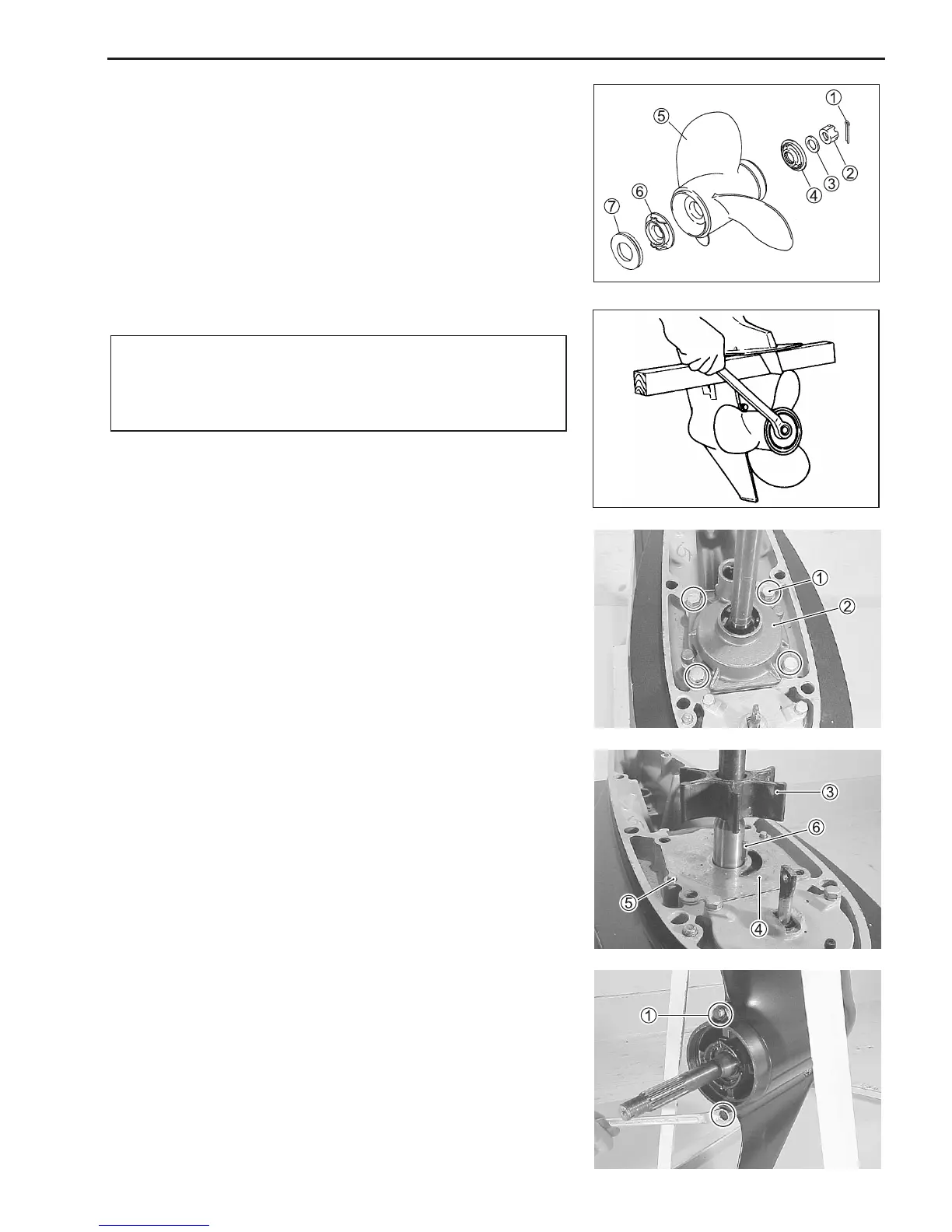

6. Remove the cotter pin 1 from the propeller nut and remove
the propeller nut 2.
7. Remove the washer 3, the spacer 4, the propeller 5, the
stopper 6 and the spacer 7 from the propeller shaft.
8. Loosen the four bolts 1, then remove the water pump case
2, the impeller 3, the impeller key 6, the pump under
plate 4 and the dowel pins 5.
9. Keep the impeller key for reuse and discard the plate gas-
ket.
10. Remove the two bolts 1 securing the propeller shaft bear-
ing housing to the gearcase.
