9-4 LOWER UNIT

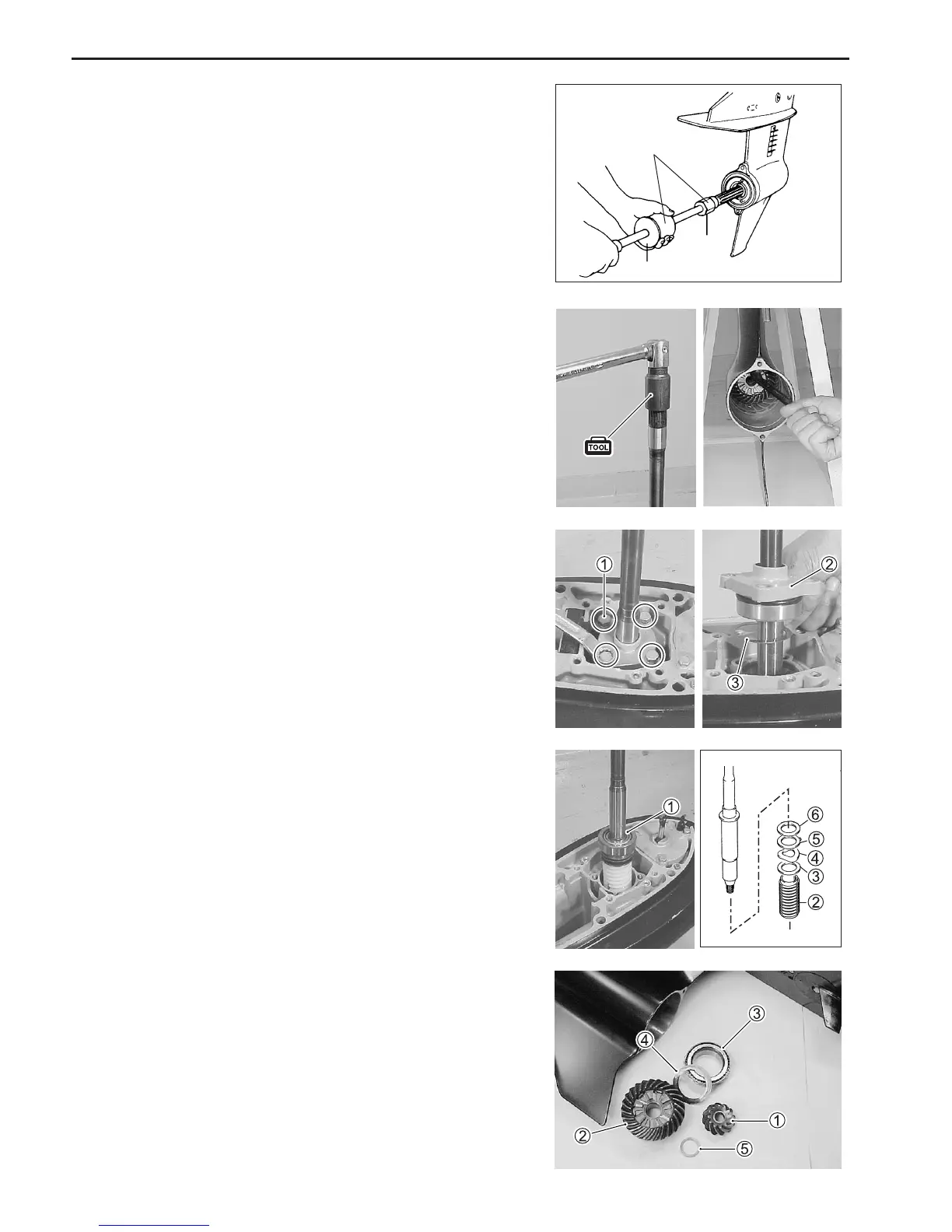

11. Using the special tools, draw out the propeller shaft bearing
housing.
Remove the propeller shaft and the bearing housing assem-
bly.
" 09930-30104: Sliding hammer A
09930-30161: Propeller shaft remover B
"
A
B
12. Hold the pinion nut securely, then fit the special tool to the
driveshaft and loosen the pinion nut.
" 09921-29410: Driveshaft holder
13. Remove the four bolts 1, then remove the driveshaft oil seal
housing 2 and the pinion shim 3.
14. Lift out the driveshaft assembly 1.
Remove the driveshaft collar 2, the washer 3, the wave
washer 4, the washer (with tab) 5 and the washer 6 from
the driveshaft.
15. Remove the pinion gear 1.
Remove the forward gear 2 (with the thrust washer 5, the
back-up shim 4 and the bearing 3).
To Next Page
