ELECTRICAL SYSTEM 8-35

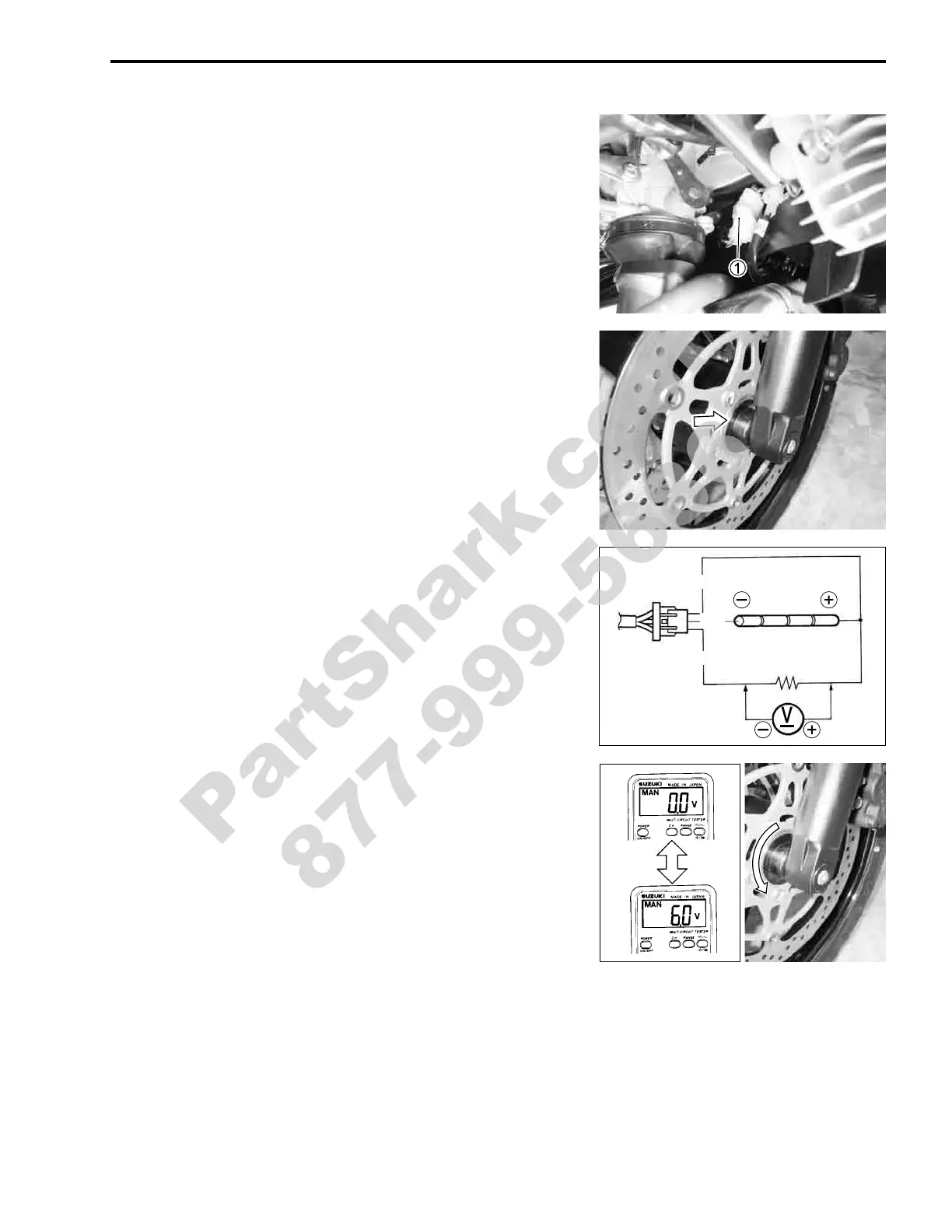

SPEEDOMETER AND SPEED SENSOR
If the speedometer, odometer or trip meter does not function
properly, inspect the speed sensor and connection of coupler
1.
If the speed sensor and connection are all right, replace the
meter with a new one.
SPEED SENSOR REMOVAL AND INSTALLATION
• Remove the front wheel. (!7-10)
• Disconnect the speed sensor coupler. (!8-35)
• Remove the speed sensor.
• Install the speed sensor in the reverse order of removal.
SPEED SENSOR INSPECTION
• Connect the four 1.5 V dry cells, 10 kΩ resistance and the
tester to the speed sensor lead wire coupler as shown.
# 09900-25008: Multi-circuit tester set
' Tester knob indication: Voltage (&)
Lift and turn the front wheel and check that voltage varies be-
tween 0 – 6 V.
If any abnormal condition is noted, replace the sensor.
10 kΩ
P
B/W
O/R
