097-58001-02 Revision C – August 2005 TimeProvider User’s Guide 21
Chapter 1 Overview of the TimeProvider
Overview
Event log management – Event log retrieval has been enhanced to provide a
more user-programmable lookup. In the new format, there are two additional
methods to retrieve the event log. 1) The user can specify a beginning point (the
“index”) within the event log and display a number of events (“count” value)
starting from the index. 2) The user can display events within a specified “start
date” and “stop date.”
When you use redundant IOC cards, Symmetricom recommends that you use the
same revision of firmware for proper operation.
Shelves
The TimeProvider is available in two shelf models. Each shelf supports up to 32
redundant output channels.
The TimeProvider 1000 is a 175 mm tall ETSI shelf that meets the requirements
of ETSI 300 119-4 January 1994. Figure 1-1 shows the TimeProvider 1000 shelf.
The TimeProvider 1100 is a 130 mm tall rear-access shelf; indicators are on the
front panel and connections are available on the rear panel. Figure 1-2 shows the
front panel of the TimeProvider 1100.

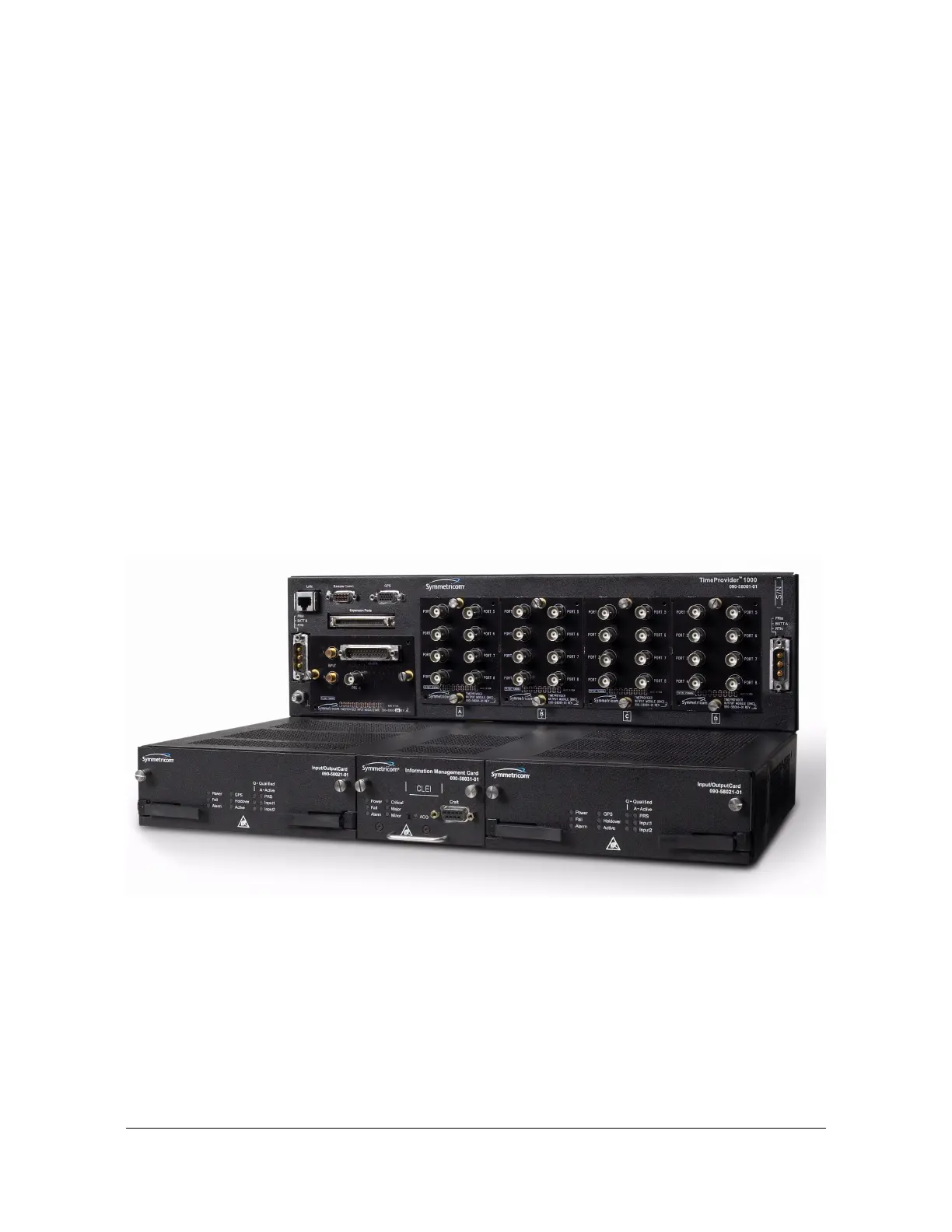

Figure 1-1. TimeProvider 1000 ETSI-style Shelf
