Symmetricom TimeProvider 1000 - Installing the Model 1000 Shelf and Expansion Panel - 23-Inch Rack; Installing the Model 1100 Shelf and Expansion Panel - 23-Inch Rack

097-58001-02 Revision C – August 2005 TimeProvider User’s Guide 53
Chapter 3 Installing the TimeProvider
Rack Mounting the Shelf and Expansion Panel

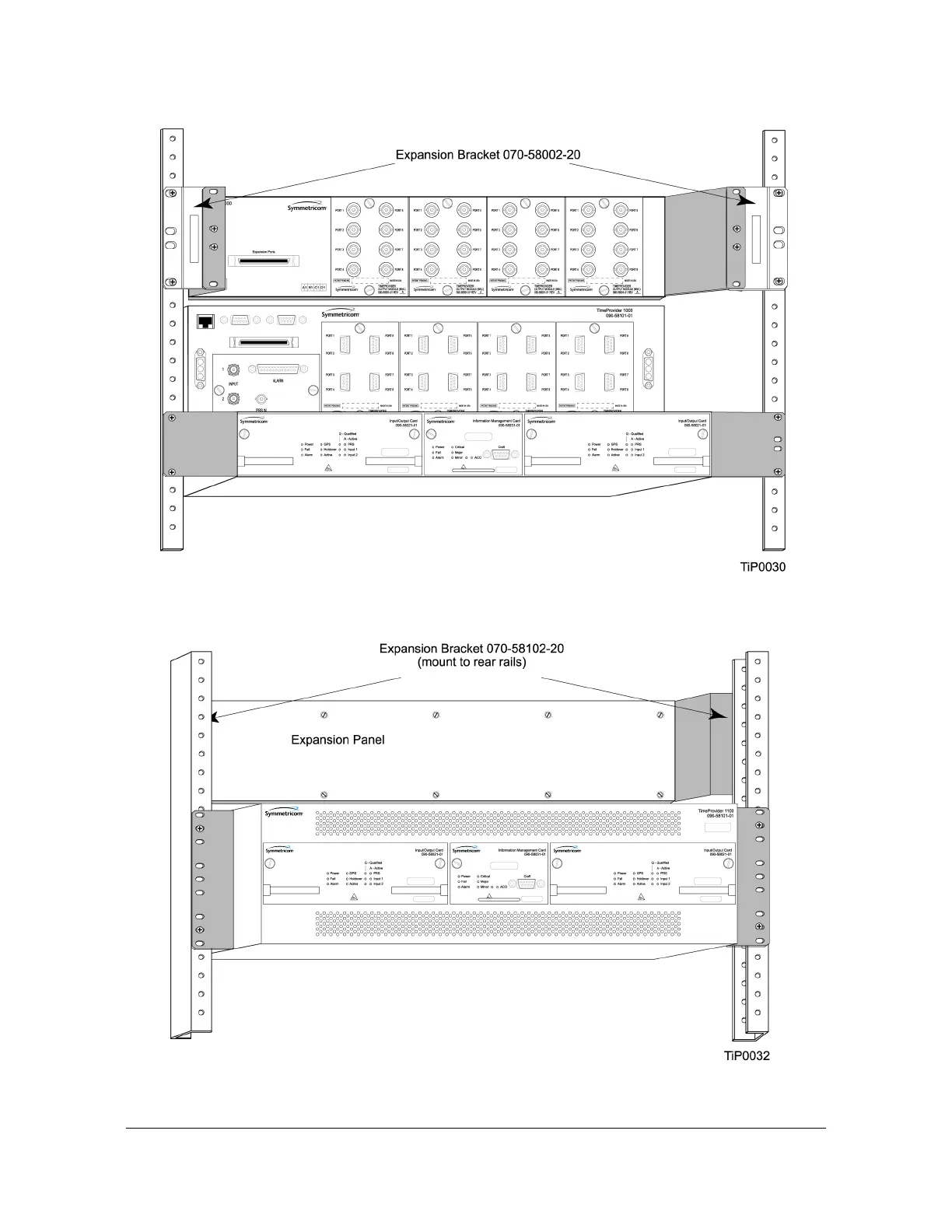

Figure 3-3. Installing the Model 1000 Shelf and Expansion Panel - 23-inch Rack
Figure 3-4. Installing the Model 1100 Shelf and Expansion Panel - 23-inch Rack
