Chapter 3 Installing the TimeProvider
Making Connections
64 TimeProvider User’s Guide 097-58001-02 Revision C – August 2005

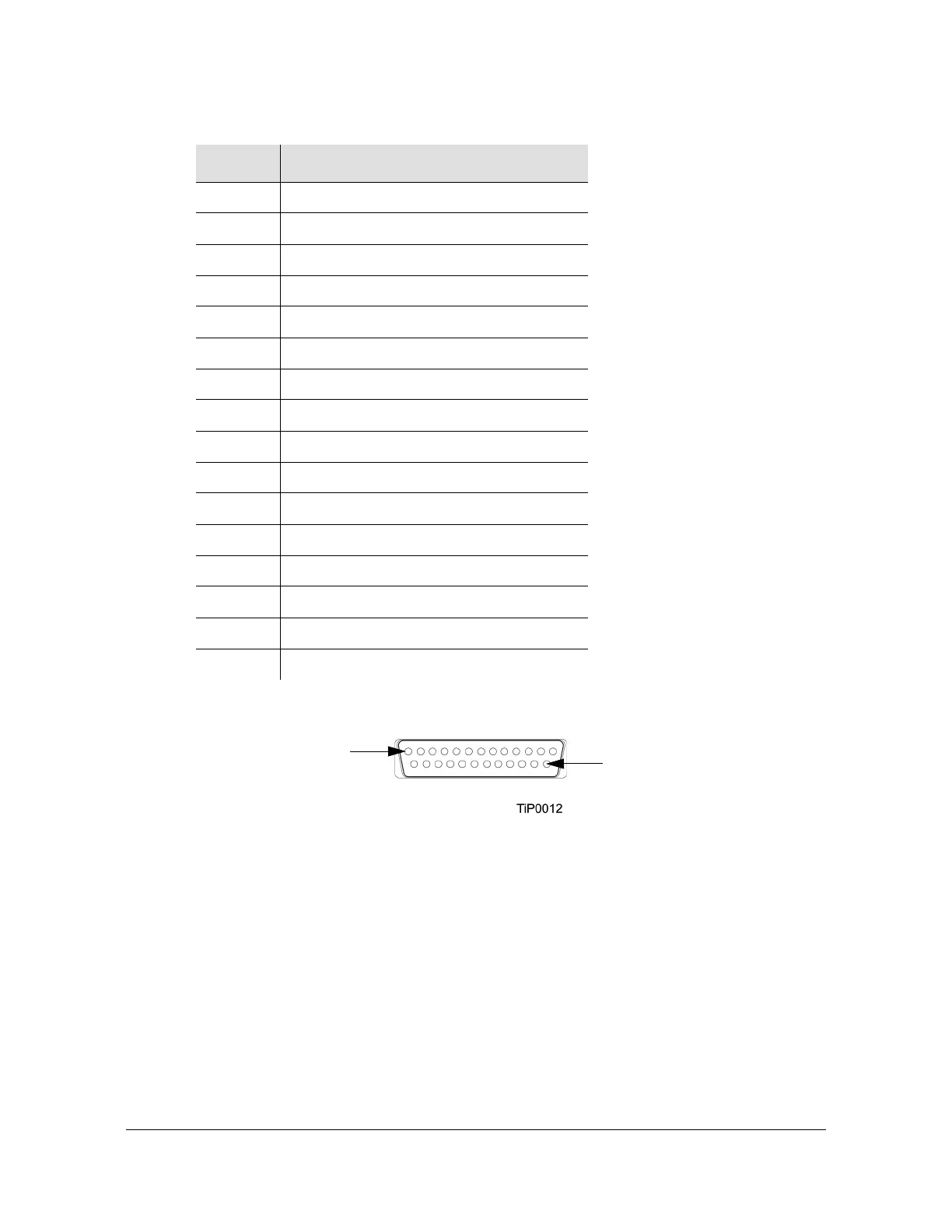

Figure 3-16. DB-25 Alarm Connector (Front View)
Making GPS Connections
To connect a GPS signal to the TimeProvider, you must install a GPS antenna and
the TimeProvider Interface Unit (TPIU) using the procedure in this section.
Installing the GPS Antenna
These installation procedures are to be used in support of local company
procedures and the Installation Job Specification.
10 Critical NC Audible
11 Critical Common Audible
12 Critical NC Visual
13 Critical Common Visual
14 Ground
15 Minor Normally Open (NO) Audible
16 Critical PRS Input NO
17 Minor NO Visual
18 Critical PRS Input Common
19 Major NO Audible
20 Major PRS Input NO
21 Major NO Visual
22 Major PRS Input Common
23 Critical NO Audible
24 No Connection
25 Critical NO Visible
Table 3-6. Alarm Connector Pinout (Continued)
Pin Description
Pin 1
Pin 25
