Chapter 3 Installing the TimeProvider
Making Connections
66 TimeProvider User’s Guide 097-58001-02 Revision C – August 2005

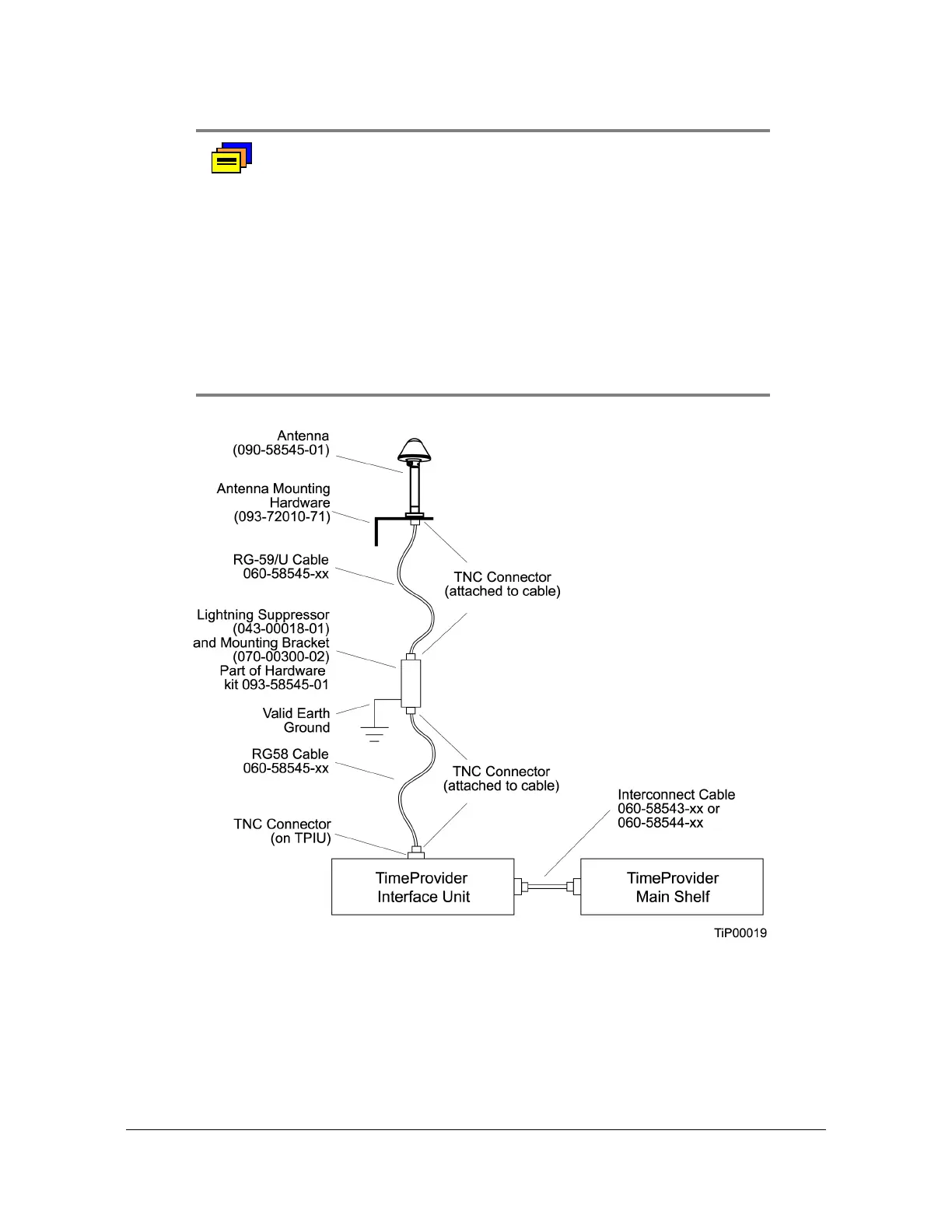

Figure 3-18. Antenna-to-Shelf Cabling
Recommendation: Symmetricom recommends that you use one of
the following grounding points:
Valid roof ring ground system.
Cad weld to building structural steel.
Central office ground plate within 15 m of antenna cable entrance
into building.
Order two cables, or a single cable run can be made from the
antenna to the TimeProvider shelf. The cable can then be cut at the
lightning suppressor location, and TNC connectors attached to the
cut ends of the cable. The “xx” in the part number indicates the cable
length.
