TDK-Lambda GENESYS 750W - Connecting Single Loads, Remote Sensing; Connecting Multiple Loads, Radial Distribution Method

45
83507013 Rev G
3.9.8 Connecting Single Loads, Remote Sensing

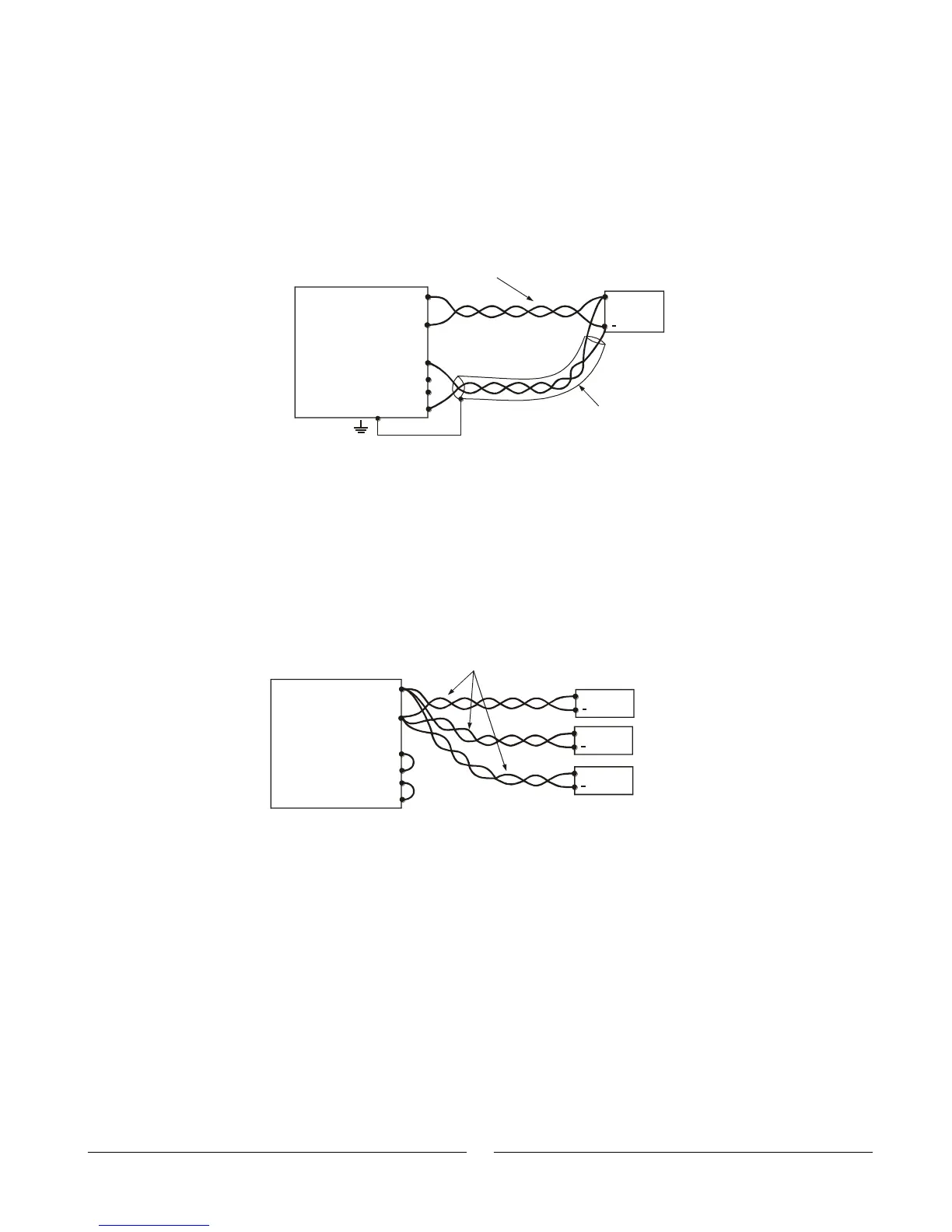

Fig.3-11 shows recommended remote sensing connection for single loads. Remote
sensing is used when, in Constant Voltage mode, the load regulation is important at the
load terminals. Use twisted or shielded wires to minimize noise pick-up. If shielded wires
are used, the shield should be connected to the ground at one point, either at the power
supply chassis or the load ground. The optimal point for the shield ground should be
determined by experimentation.
-
-
Rem.sense
Local sense
ocal sense
Rem.sense
+L
+
Sense lines.
Twisted pair or
+V
-V
Load
+
Power
Supply
Load lines. Twisted pair
shortest length possible.
Fig.3-11: Remote sensing, single load
Fig. 3-11: Remote sensing, single load
3.9.9 Connecting Multiple Loads, Radial Distribution Method
Fig.3-12 shows multiple loads connected to one supply. Each load should be connected
to the power supply’s output terminals using separate airs of wires. It is recommended
that each pair of wires will be as short as possible and twisted or shielded to minimize
noise pick-up and radiation. The sense wires should be connected to the power supply
output terminals or to the load with the most critical load regulation requirement.
-
-
Rem.sense
Local sense
ocal sense
Rem.sense
+L
+
Load lines, twisted pair,
shortest length possible.
+V
-V
Load#1
+
Load#3
+
Load#2
+
Power
Supply
Fig.3-12: Multiple loads connection, radial distribution, local sense
Fig. 3-12: Multiple loads connection, radial distribution, local sense
