58

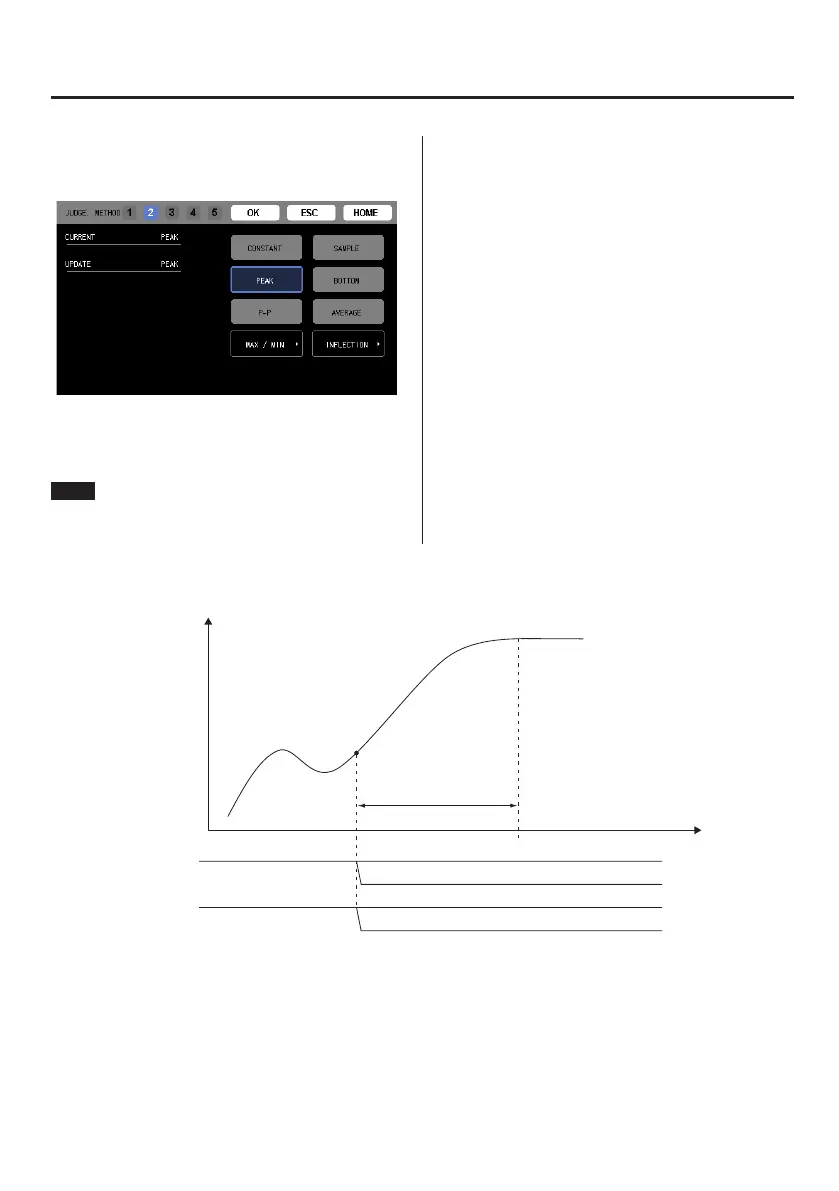

4-6-4-2. Judgment method
Select the hold method used when measurement data is in
the zone.
The following types of holds are possible.
CONSTANT, SAMPLE, PEAK, BOTTOM, P-P, AVERAGE, MAX/MIN,
INFLECTION
NOTE
After selecting MAX/MIN or INFLECTION, touch it again to
open the settings screen
4. Settings
4-6-4-2-1. Constant comparison
When a measurement value is within a zone, it is compared to
the high and low limits and judged.
HI: high limit value < measurement value
LO: measurement value < low limit value
Judgment output (load)
This becomes ON at the moment that the load meets a HI or
LO condition. Both HI and LO can become ON.
If the load is never outside the zone, the zone judgment will
be OK.
4-6-4-2-2. Sampling
The measurement value is held when it enters a zone. The hold is released when it leaves the zone.
OFF
ON
HI
OFF
ON
LO
Load
Judgment output (load)
Zone interval
Hold point
Time or displacement
Judgment output (load)
If the hold point meets a HI or LO condition, this becomes ON.
If the hold point is within the management value range, judgment for this zone will be OK.
