4 Description of Function
Purpose of This
Chapter
This chapter explains the basic principle of the Te-Stack, shows how it is
structured and gives a functional description of the assemblies.
4.1 Overview of Modules and Components
4.1.1 Te-Stack With the Te-MO
Each of the three Te-MO slides can be equipped with a Te-Stack base unit. The
Te-Stack base units are mounted in front of the slides using a Te-Stack support.
The slide in the middle of the Te-MO can be equipped with a DiTi waste.
4.1.2 Te-Stack With Freedom EVO
The Freedom EVO version can be equipped with up to four Te-Stack base units.
A transfer station is located in front of the Te-Stack base units.

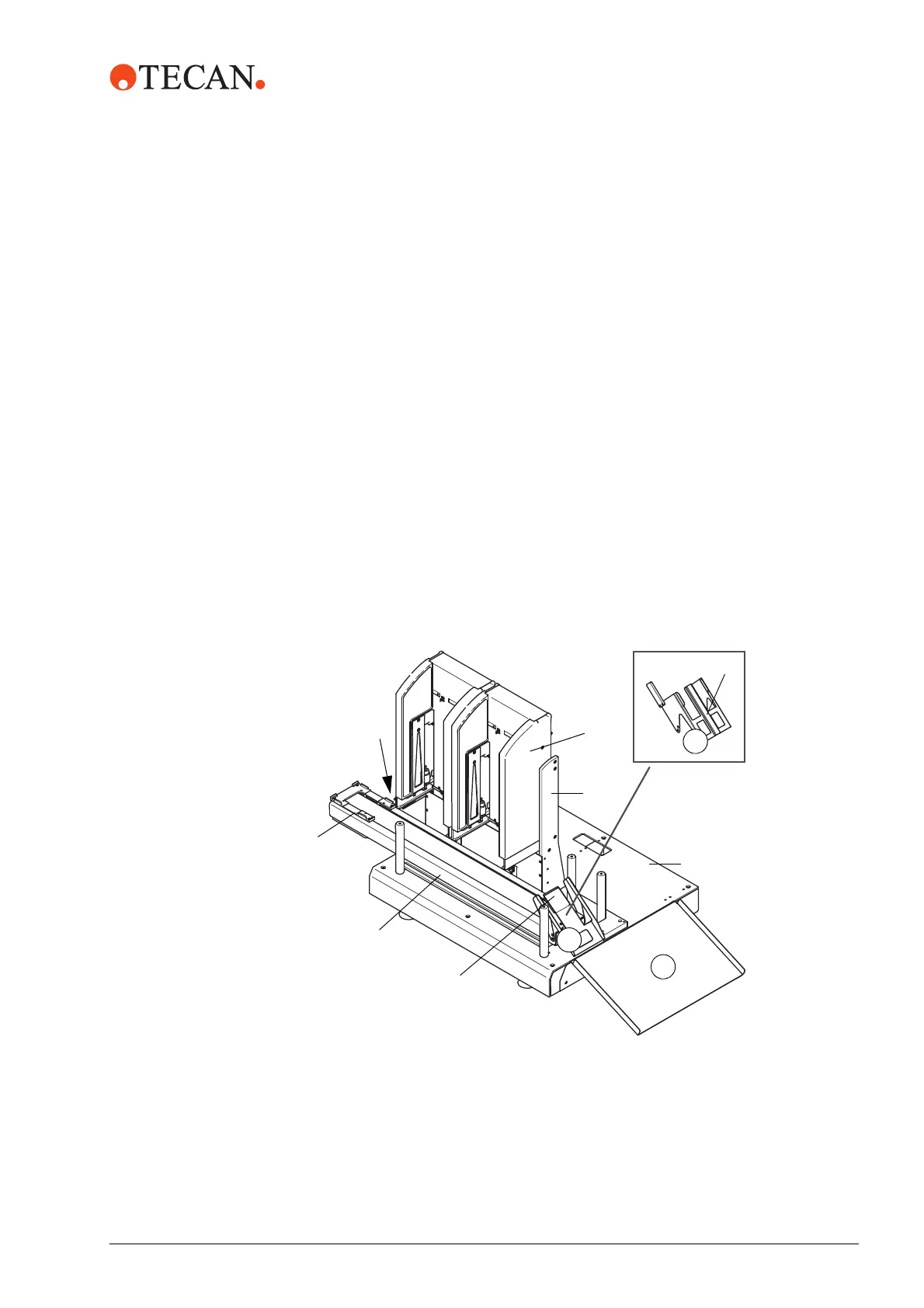

Fig. 4-1 Overview of Freedom EVO version in front position
A Transfer carrier (upper part)
B Slide (assembly)
C Barcode scanner (invisible in figure)
D Transfer station
E1 Waste station (assembly)
E2 Waste station (assembly nested DiTi)
F1 Waste tray
F2 Waste tray (nested DiTi)
G Waste chute
H Worktable extension
I Base unit support (front)
J Te-Stack base unit
Other variants see chapter 3.1.1,
