4 - Description of Function
Nested DiTi Stack
Te-Stack Operating Manual, 391862, en, V2.3 4 - 9
Discarding The empty insert (B) still loaded on the support carrier (A) are moved to the waste
station (C) to be discarded. The support carrier (A) remains on the Te-Stack slide
to continue collecting loaded DiTi inserts from the nested DiTi Stack.
ATTENTION
Risk of jamming. Discarding Inserts charged with DiTi will jam the Te-Stack.
Only discard empty DiTi inserts.

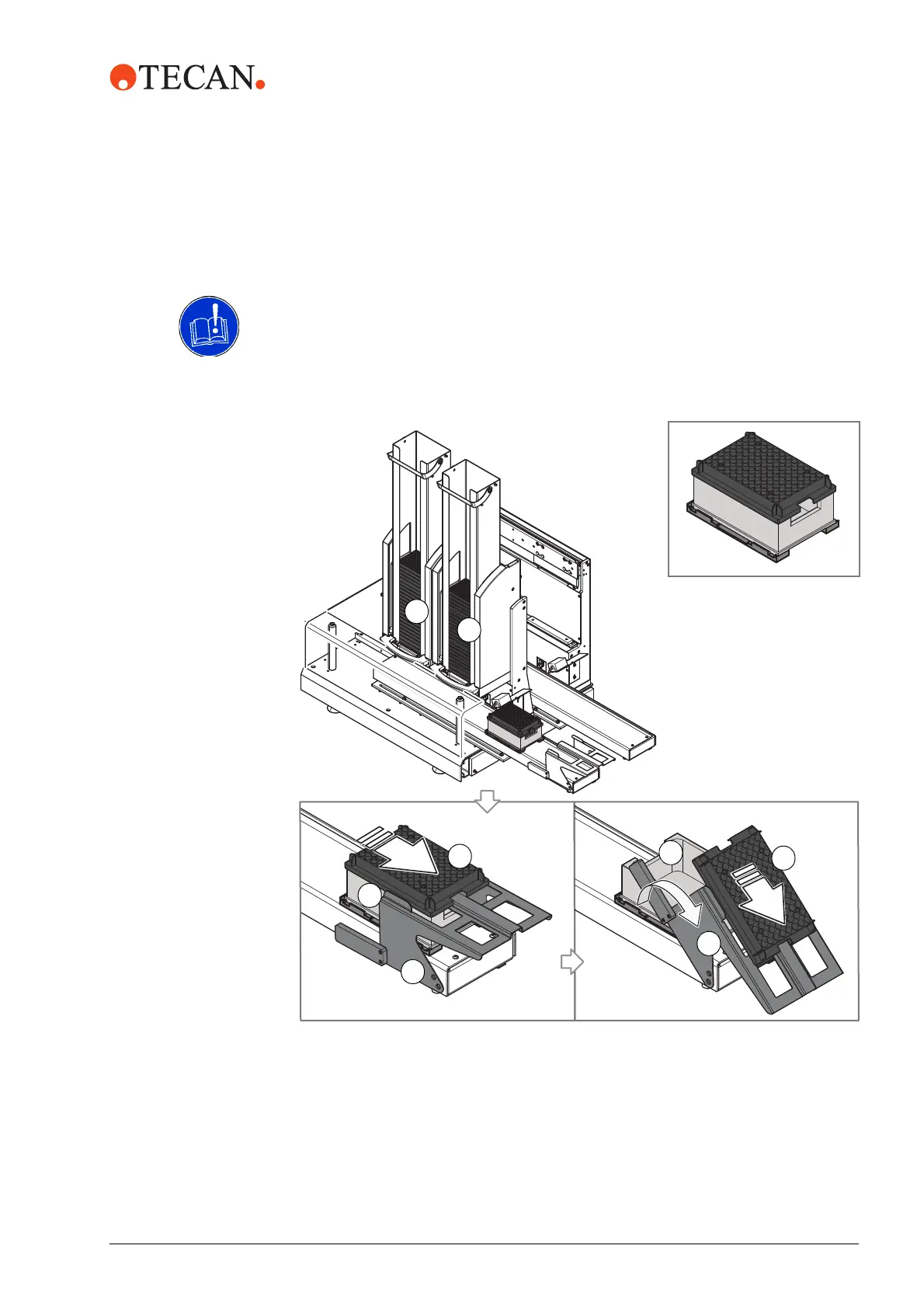

Fig. 4-13 Te-Stack with Nested DiTi
A Support Carrier
B Insert
C Nested DiTi stack
D Waste station
