CROSS PERSONAL: Service & maintenance manual - rev. 1.1
Page 3.7
3.2.15. CARDIO RECEIVER HR
This is the Board that manages the signal sent by the Telemetric Transmitter (Heart Rate Band),
used by the user during training sessions. The Receiver Board receives a power supply of +5Vdc
from the Display Board.

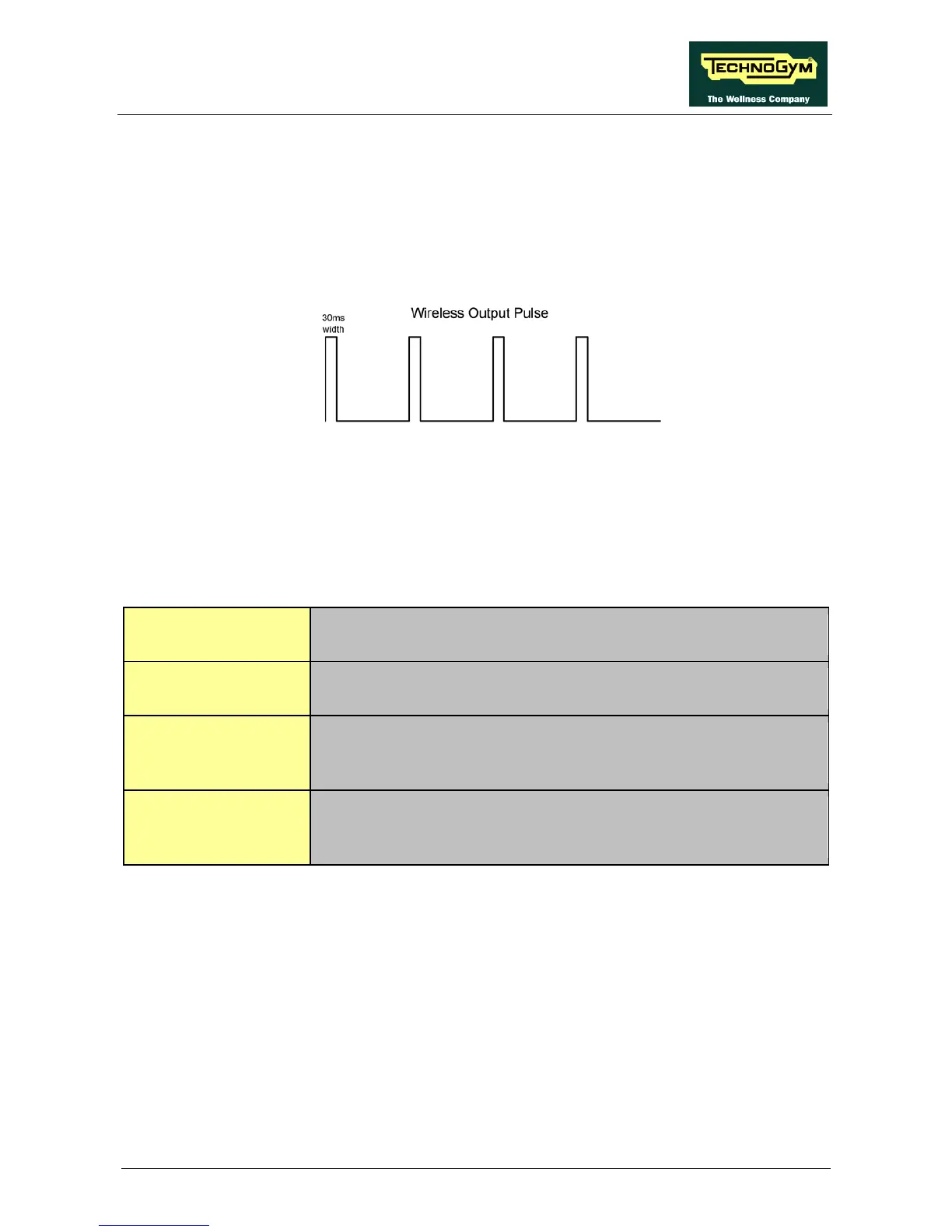

The Receiver Board communicates with the Display Board using negative logic procedures. When
it is in stand-by, the signal has a +5Vdc value and with every heart beat it picks up, it generates an
impulse of +0Vdc with an amplitude of 30msec.
3.2.16. IPOD DOCKING STATION
The Board allows you to connect iPod devices and to control them directly from the VISIO
interface.
Connecting with VISIOWEB allows you to: power, recharge and fully control iPod devices.
In the table below, you can see all the compatible iPod (APPLE) models:
Recharging battery
All iPod & iPhone models
(exception: iPod shuffle and first generations*)
All iPod & iPhone models
(exception: iPod shuffle and first generations*)
All iPods starting from iPod 5th generation, all iPod Nano starting from
Nano 3G & 4G, all iPod Touch from iPod Touch 1G & 2G, all iPhone
from iPhone & iPhone 3G
All iPod Nano from iPod Nano 3G, all iPod from Touch 2G all iPhone
(for more information: http://www.apple.com/ipod/nike/workout.html)
* The equipment is compatible with all devices which have the standard iPod connector. That
means ALL iPod devices EXCEPT the iPod shuffle and EXCEPT the iPod release before July
2004 (1st, 2nd and 3rd generation).
NOTE: In order to have video in iPhone and iPod Touch it is necessary to update the device
with the latest firmware via iTunes.
