3.4. AUDIO SIGNAL AND AUDIO OUT CONTROL
The equipment provides the following outputs for listening to and playing audio devices:
- Two speakers positioned on the central upright of the frame.
- Two tweeters, on the upper part of the Total levers, one on the right and one on the left.
- One non-amplified audio output jack socket, in the upper/central part of the frame in the area
where the Total levers are connected, normally used for connecting headphones.
- One non-amplified audio output jack socket, at the base of the equipment in the power input
area, normally used for connection to an external audio system.
3.4.1. CONTROL

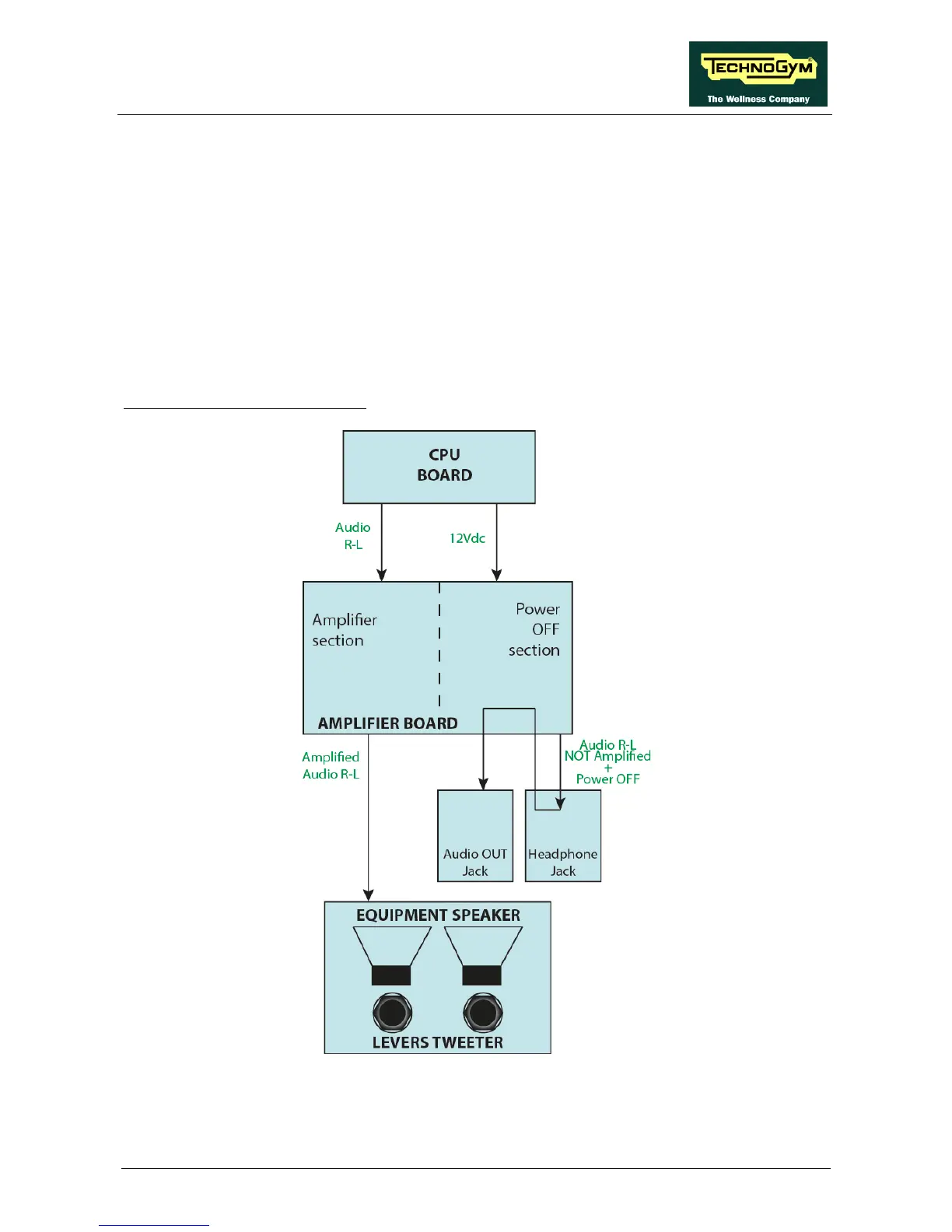

The control diagram is as follows:
The audio signal in this equipment is controlled and sent towards the output channels (sockets and
speakers) by an amplifier, which, in the case of the sockets, simply channels to signal towards them,
or, in the case of the speakers, amplifies the signal before sending it.
