Technogym CROSS PERSONAL - Dismantling the Total Levers

CROSS PERSONAL: Service & maintenance manual - rev. 1.1
Page 7.8
7.8. DISMANTLING THE TOTAL LEVERS
OPERATION
DESCRIPTION
Dismantling the Total
Levers
1. Remove the “Front guards”.
2.
Remove the screws anchoring the internal plastic lever guard
(platform lever connection area), using a 2.5 mm hex key.
3.
Separate the internal lever guard (assembly with Fast Milano
fastener).
4. Unscrew the nut anchoring the Total lever to the platform lever.
17 mm bush
NOTE:
during reassembly, tighten using a 44Nm/33lbf.ft
torque spanner
5. Remove the headphone jack socket on the central frame.

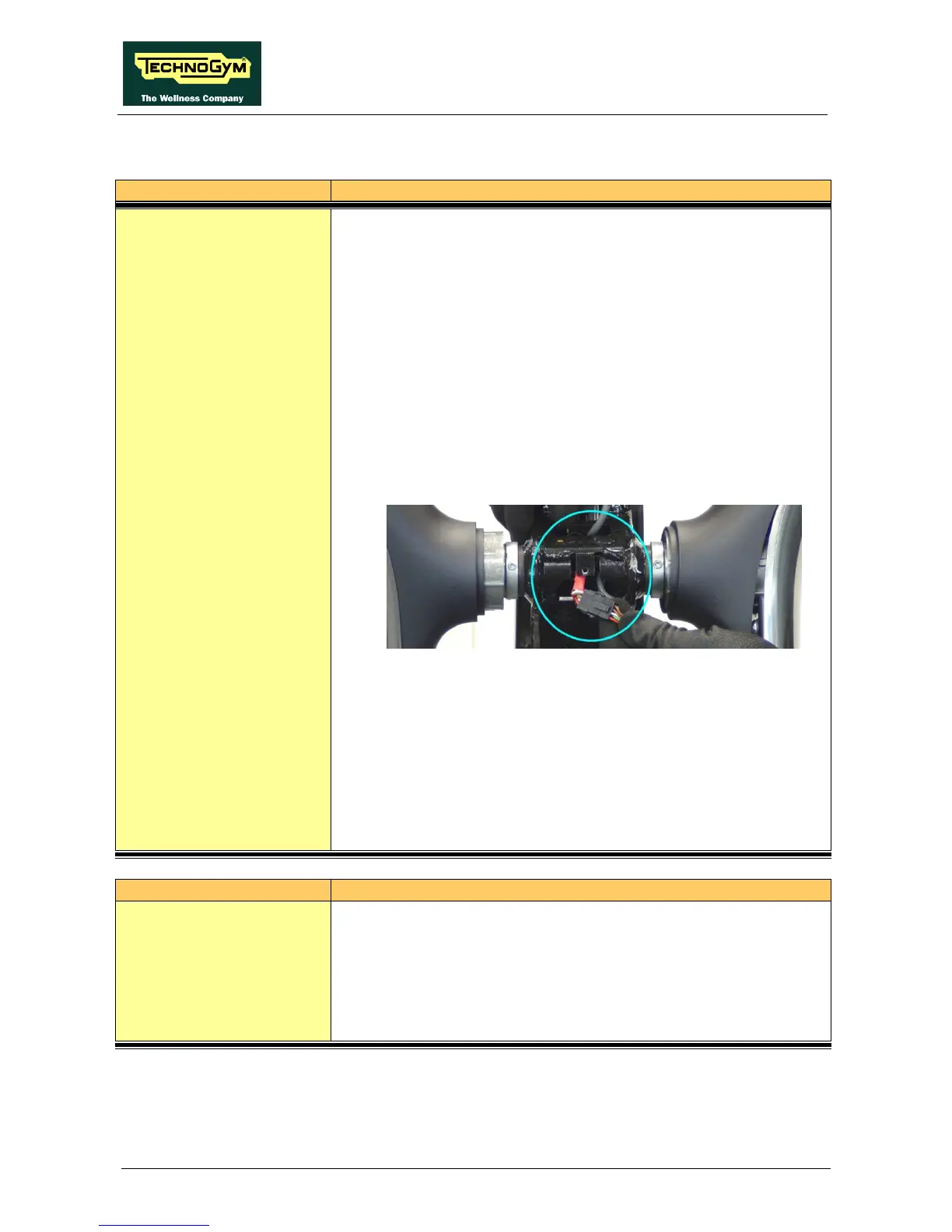

6. Slide out the lever cable connector from the slot in the frame of
the central headphone jack socket housing (see photo below).
7. Loosen the 2 grub screws anchoring the Total lever to the frame
pin, using a 3 mm hex key.
NOTE:
during reassembly, place a couple of drops of
Loctite threadlocker on the grub screws.
8. Slide the lever off sideways.
NOTE:
Take care not to pinch the cable when
reassembling.
OPERATION
DESCRIPTION
Dismantling the upper
part of the Total Lever
1.
Open the Total Lever internal guard, referring to the related
dismantling procedure.
2. Unscrew the 4 screws anchoring th
e upper part, using a 5 mm
hex key.
3. Remove the upper lever.
