Technogym CROSS PERSONAL - Dismantling the Platform Lever

CROSS PERSONAL: Service & maintenance manual - rev. 1.1
Page 7.10
7.10. DISMANTLING THE PLATFORM LEVER
OPERATION
DESCRIPTION
Dismantling the Platform
Lever

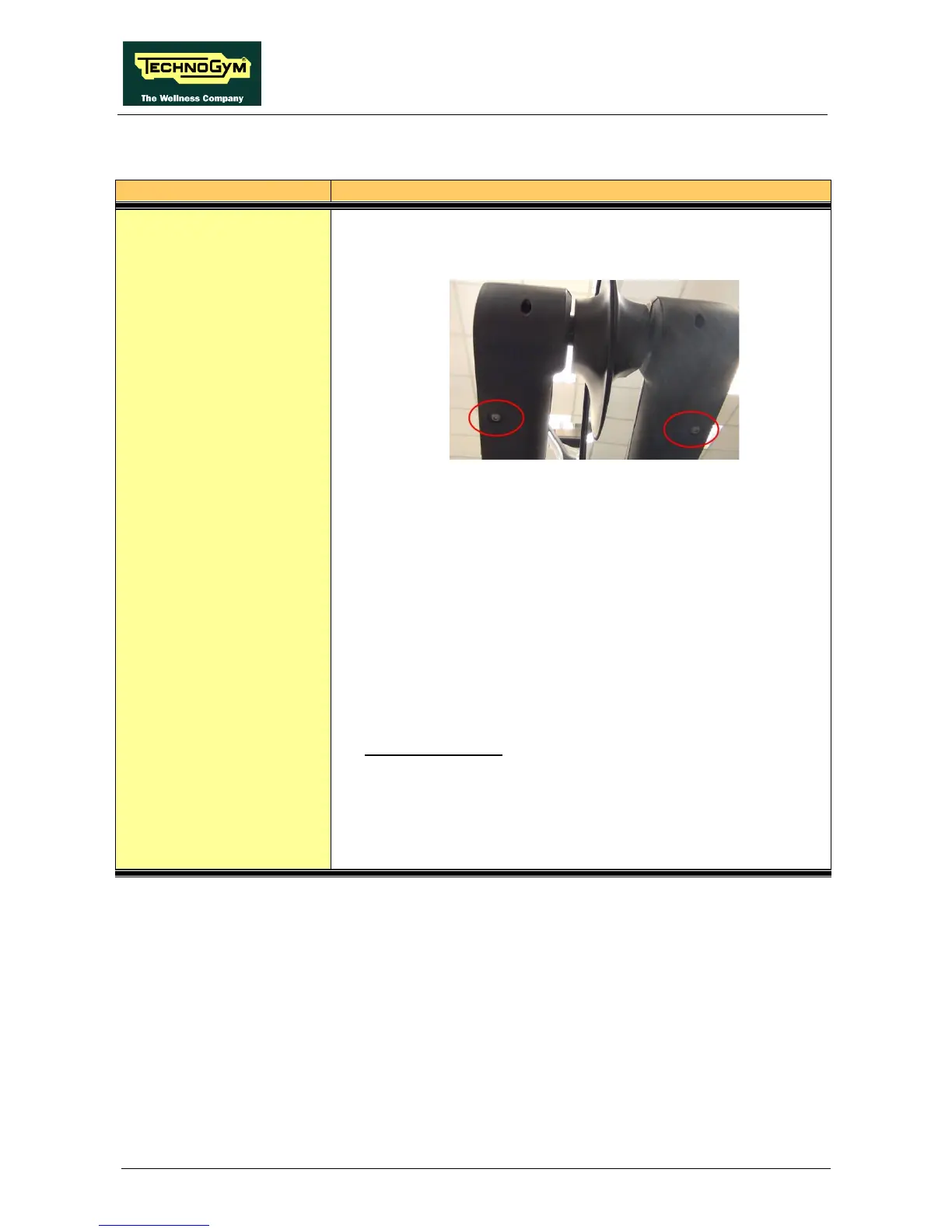

1. Unscrew the screws in the lower-
rear platform lever area (see
photo below), using a 4 mm hex key.
2. Remove the end part of the chrome-plated lever guard.
3.
Unscrew the screw anchoring the platform lever to the crank,
using a 5 mm hex key.
NOTE: during reassembly, tighten using a 23Nm/17lbf.ft
torque spanner
4. Disconnect the lever from the crank.
5.
Disconnect the platform lever from the Total lever. (see
procedure for dismantling the “Total Lever”).
6. Remove the lower lever guard. 11 screws in the lower part of the
lever, using a Phillips screwdriver.
7. Remove the upper platform lever guard. 5 screws with washers
in the lower part of the lever, using a Phillips screwdriver.
Removing the hub.
8. Unscrew the hub assembly anchor nut, using a 13 mm spanner.
9. Unscrew the hub assembly anchor screws, usin
g a 5 mm hex
key.
10. Screw in an M10 bolt on the screw side and use it to take out the
hub anchor pin.
