RUN 600 XTPRO: Service & Maintenance Manual - rev. 1.3
Page 7.18

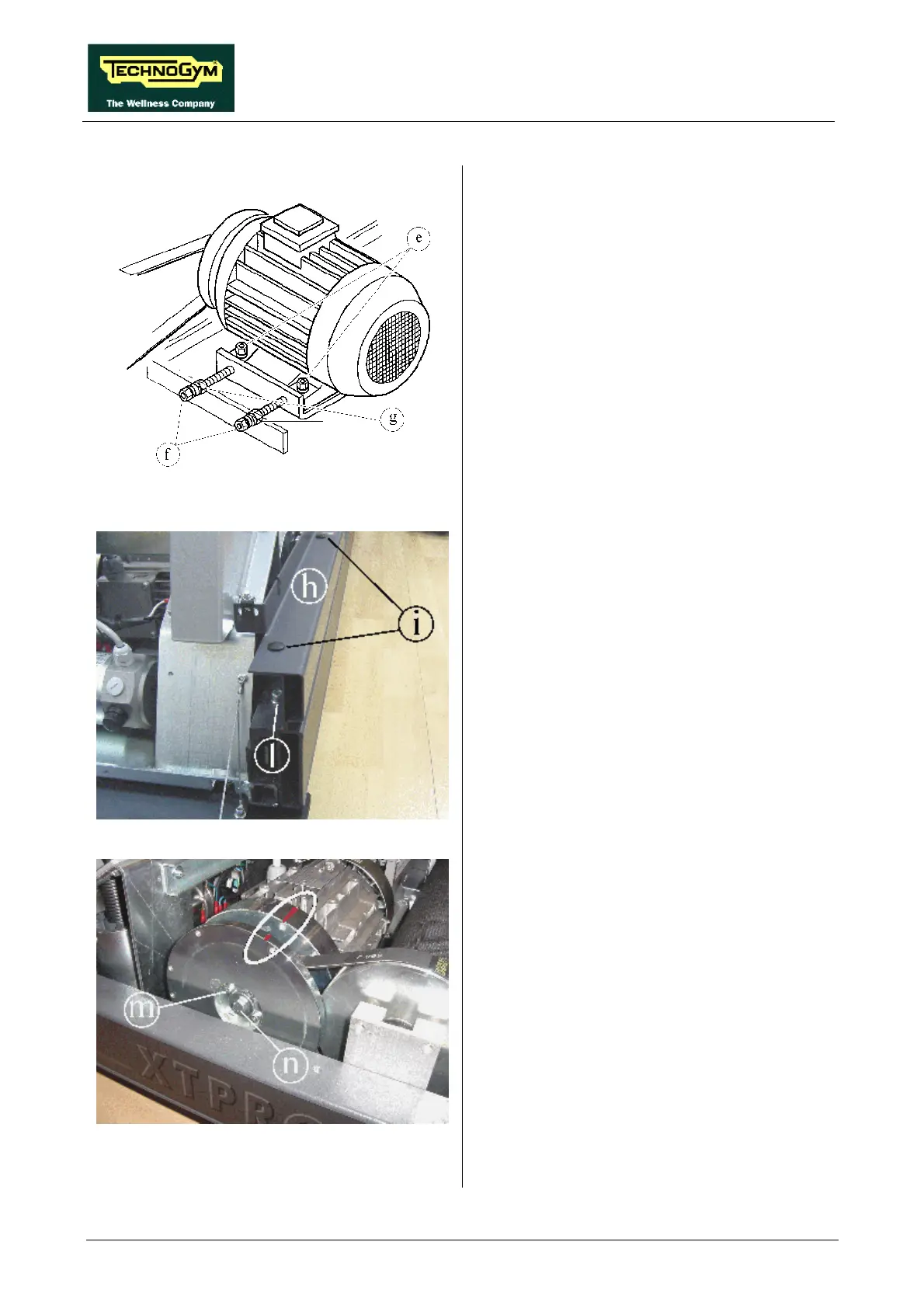

Figure 7.12-4
8. Back off the 4 nuts d (2 are concealed by the
motor in the figure at left) which fix the belt
motor to the machine frame using a 13-mm
wrench, and holding the screw underneath in
place with a 6-mm Allen T wrench.
9. Back off the 2 outer nuts e and the 2 inner
nuts f using a 13-mm wrench.
Figure 7.12-5
10. Remove the 2 caps h.
11. Back off the 2 bolts i using a 6-mm allen
wrench through the holes previously closed
by the caps h.
12. Remove the plate g.
Figure 7.12-6
13. Using a felt-tip pen, mark the top part of both
flywheels as shown in the figure.
14. Disassemble the outer flywheel by backing
off the four screws l using a 4-mm Allen
wrench and the bolt m using a 13-mm
wrench.
Continued on the following page →
