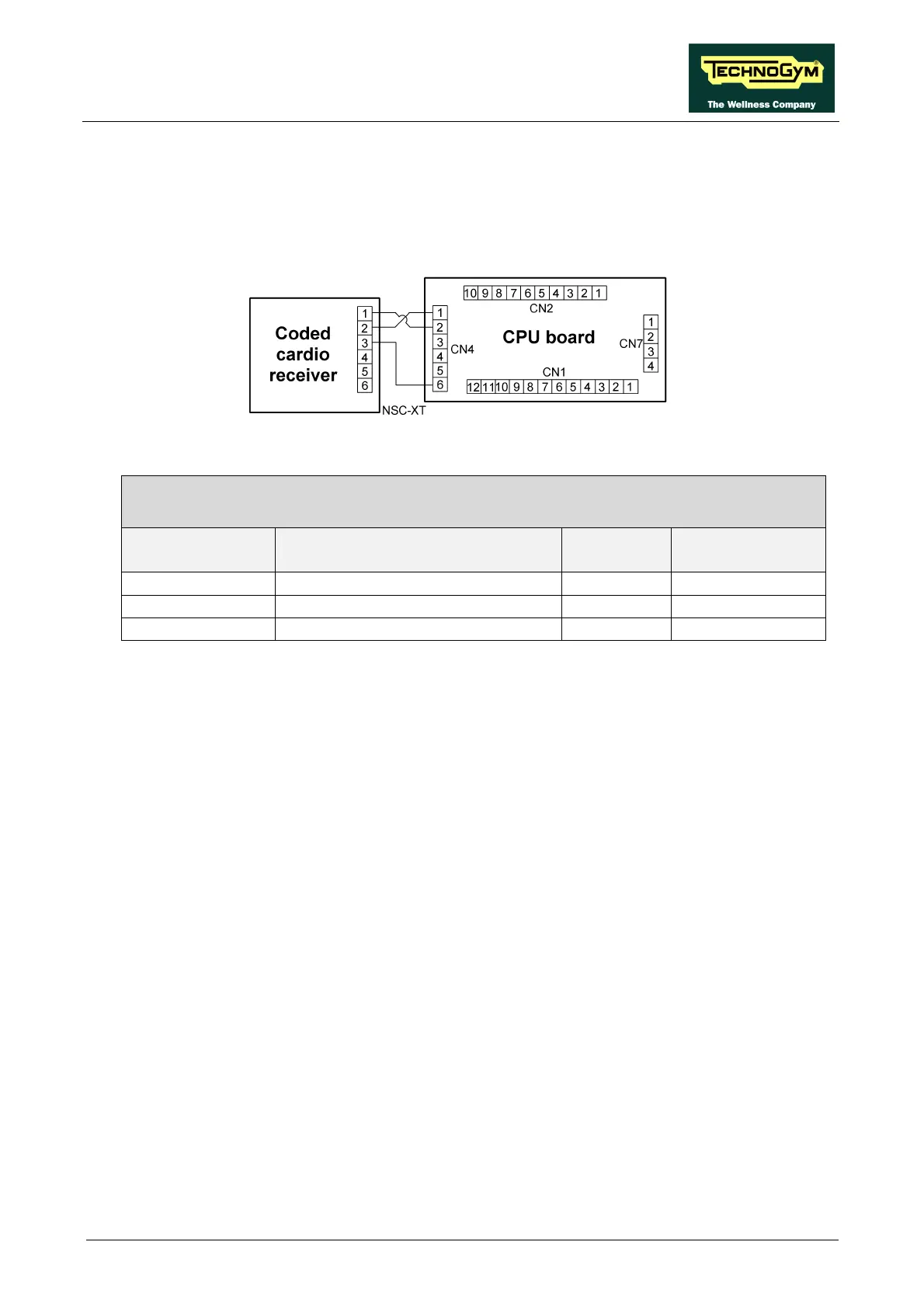

2.8. WIRING DIAGRAM WITH CODED RECEIVER
The only difference compared to the model with non-coded receiver is the NSC-XT cable between
the CPU board and the coded receiver, which is described below:
NSC-XT: Non coded heart rate meter cable
CPU board – Cardio receiver
CPU board
CN4
Signal Color Receiver
1 +5 Vdc Red 2
2 Pulse per beat Blue 1
6 Ground Black 3
