Technogym RUN 600 XTPRO - Wiring Diagram with Hitachi J100 Inverter

RUN 600 XTPRO: Service & Maintenance Manual - rev. 1.3
Page 2.12

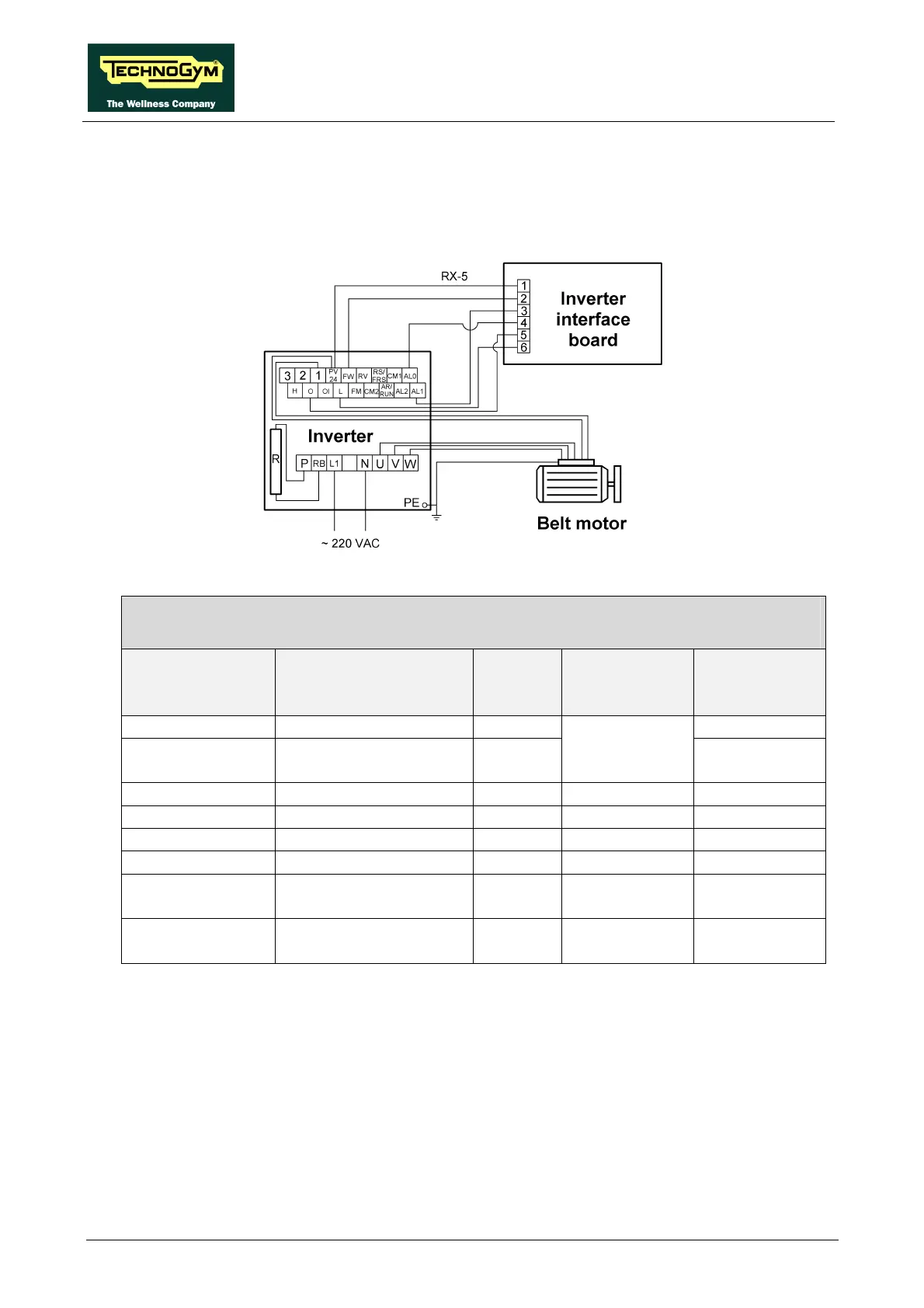

2.9. WIRING DIAGRAM WITH HITACHI J100 INVERTER
The difference with respect to the model with Hitachi SJ100 inverter lies in the inverter itself, and
its connection to the motor and to the inverter interface board as illustrated below:
RX-5: Inverter cable
Inverter interface board – Inverter – Motor thermal cutout
Inverter interface
board
CN1
Signal Color Inverter Motor thermal
cutout
1 Reference White -
- Thermal cutout
reference
Red
PV24
1
- NC thermal cutout Red 1 2
2 Start Gray FW -
3 NC Alarm Violet AL1 -
4 Alarm reference Red AL0 -
5 Inverter control
(0-10 Vdc)
Brown O -
6 Inverter control
reference
Black L -
