7. DISASSEMBLY OF COMPONENTS
7.1. DISASSEMBLING THE DISPLAY

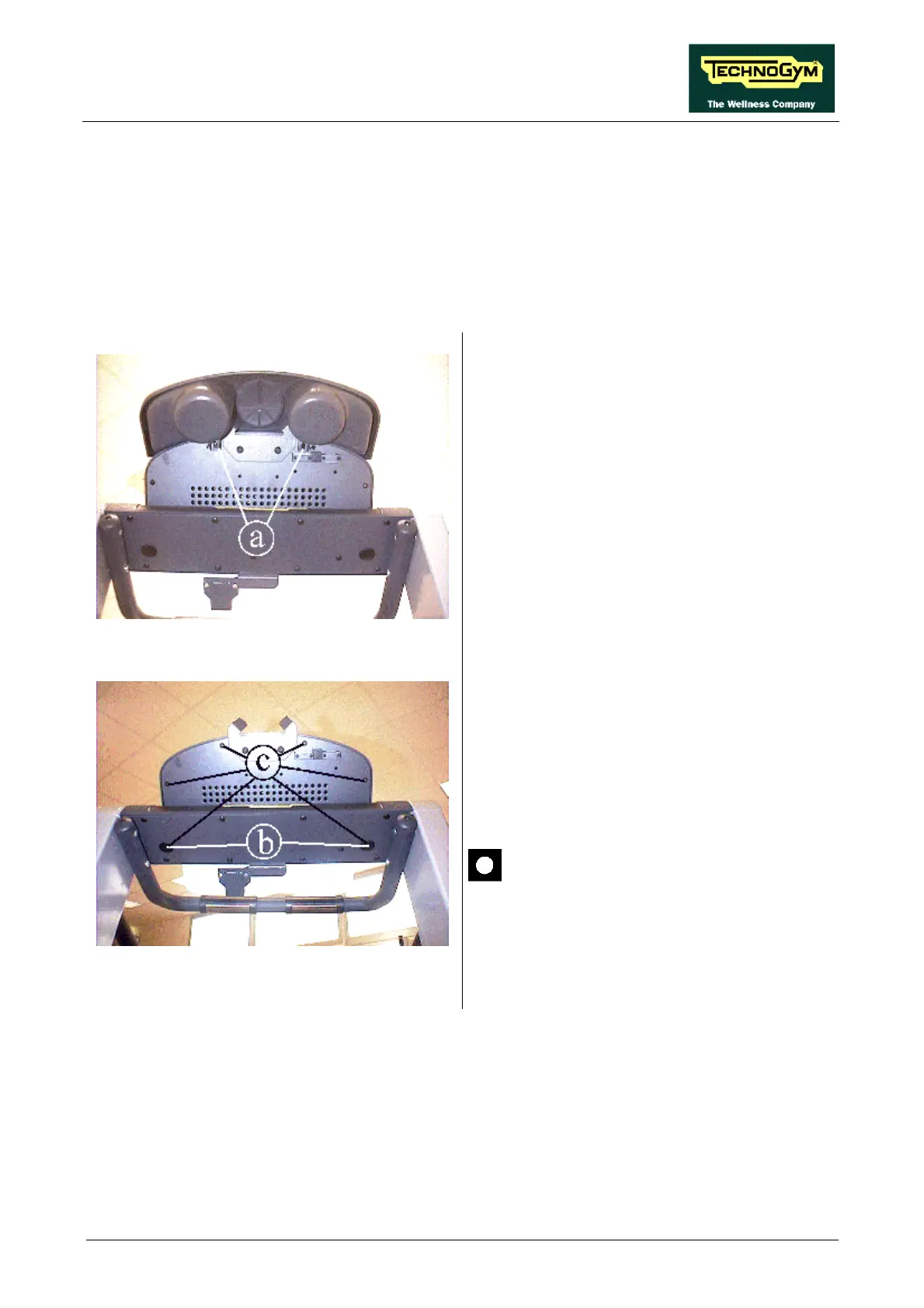

Figure 7.1-1
1. Turn off the machine and unplug the mains
lead from the wall output.
2. Unscrew the 2 screws a using a large Phillips
screwdriver.
3. Remove the tidy rack.
Figure 7.1-2
4. Remove the 2 caps b.
5. Unscrew the 6 screws c, using a large
Phillips screwdriver.
Support the DISPLAY before removing
the last screw.
Continued on the following page →
