2.10. WIRING DIAGRAM WITH ZT30 POWER SUPPLY
The difference with respect to the model with SWT40 power supply lies in the power supply itself,
and its connection to the inverter interface board as illustrated below:

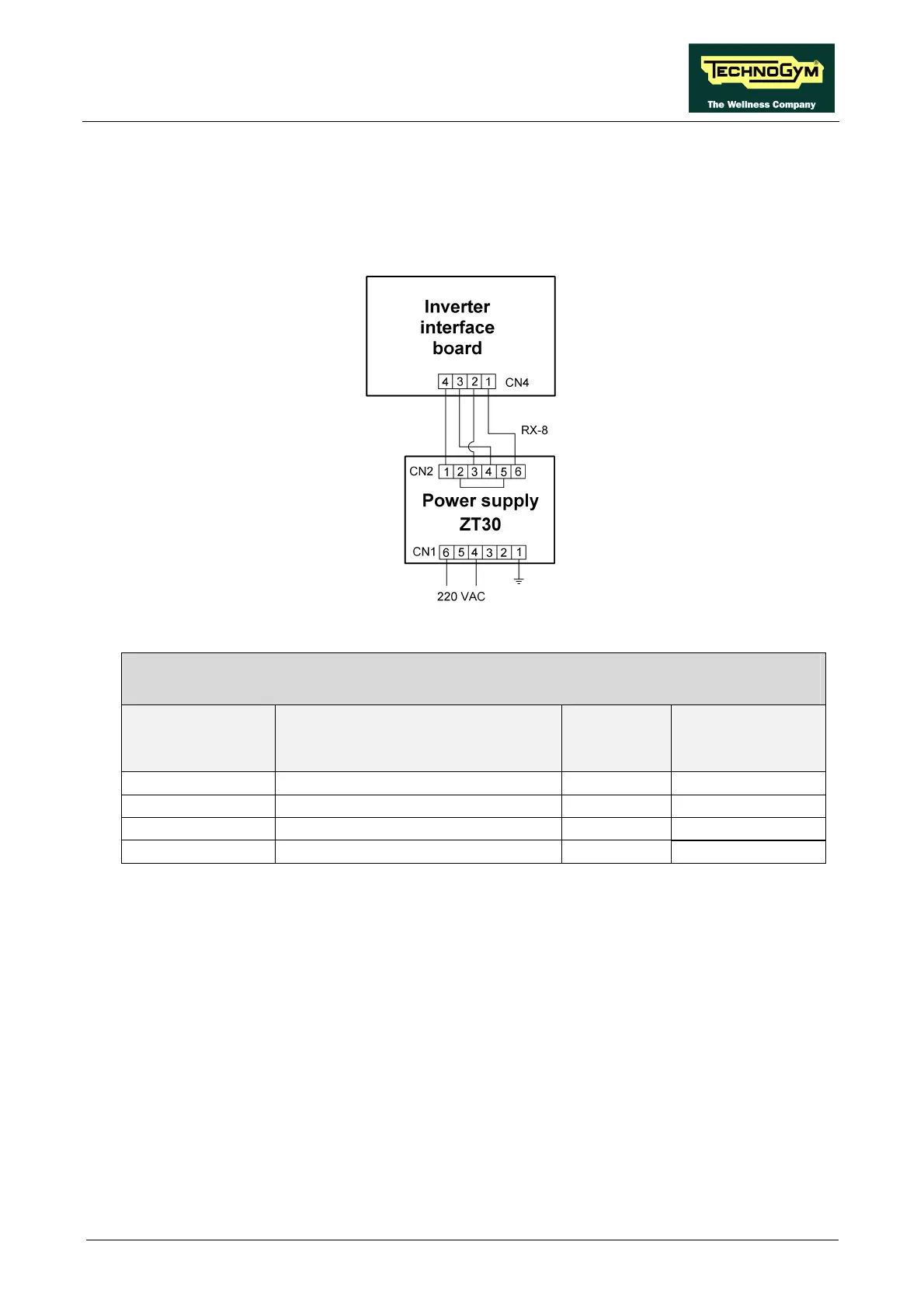

RX-8: Low voltage power supply cable
Power supply – Inverter interface board
Power supply
CN2
Signal Color Inverter interface
board
CN4
1 +12 Vdc Red 4
2-4-5 Ground Black 3
3 +5 Vdc Yellow 2
6 -12 Vdc Blue 1
