Technogym RUN 600 XTPRO - Disassembling the Cardio Receiver

RUN 600 XTPRO: Service & Maintenance Manual - rev. 1.3
Page 7.6
7.5. DISASSEMBLING THE CARDIO RECEIVER
Version A: receiver housed inside the display.

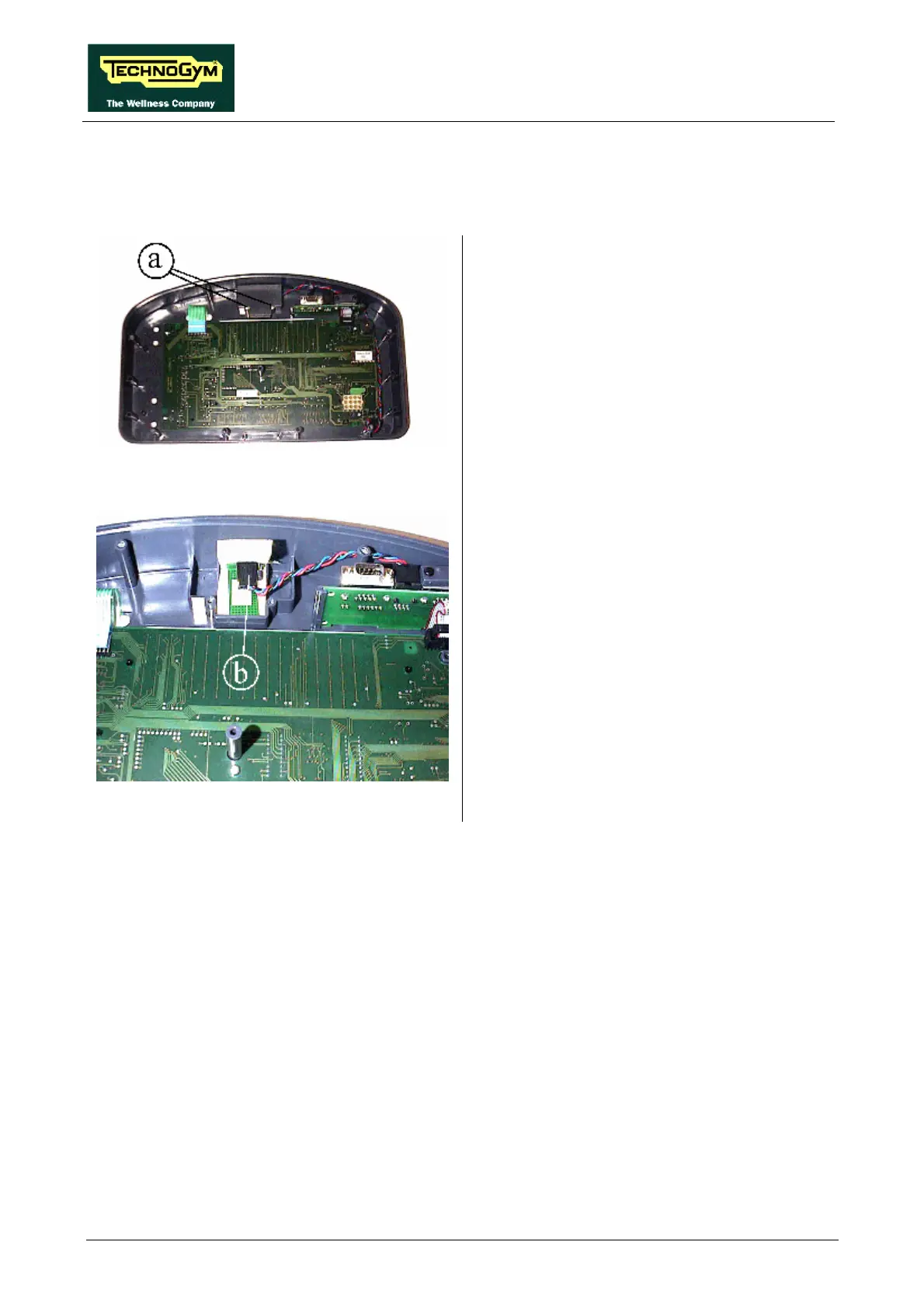

Figure 7.5-1
Carry out the procedure described in paragraph
7.1. “Disassembling the display”.
With the display on a work bench:
1. Unscrew the 2 screws a using a small
Phillips screwdriver.
2. Open the cover.
Figure 7.5-2
3. Disconnect connector b.
4. Remove the RECEIVER.
To reassemble the RECEIVER, carry out the
above steps in reverse order.
