RUN 600 XTPRO: Service & Maintenance Manual - rev. 1.3
Page 7.7
Version B: receiver positioned under the display.

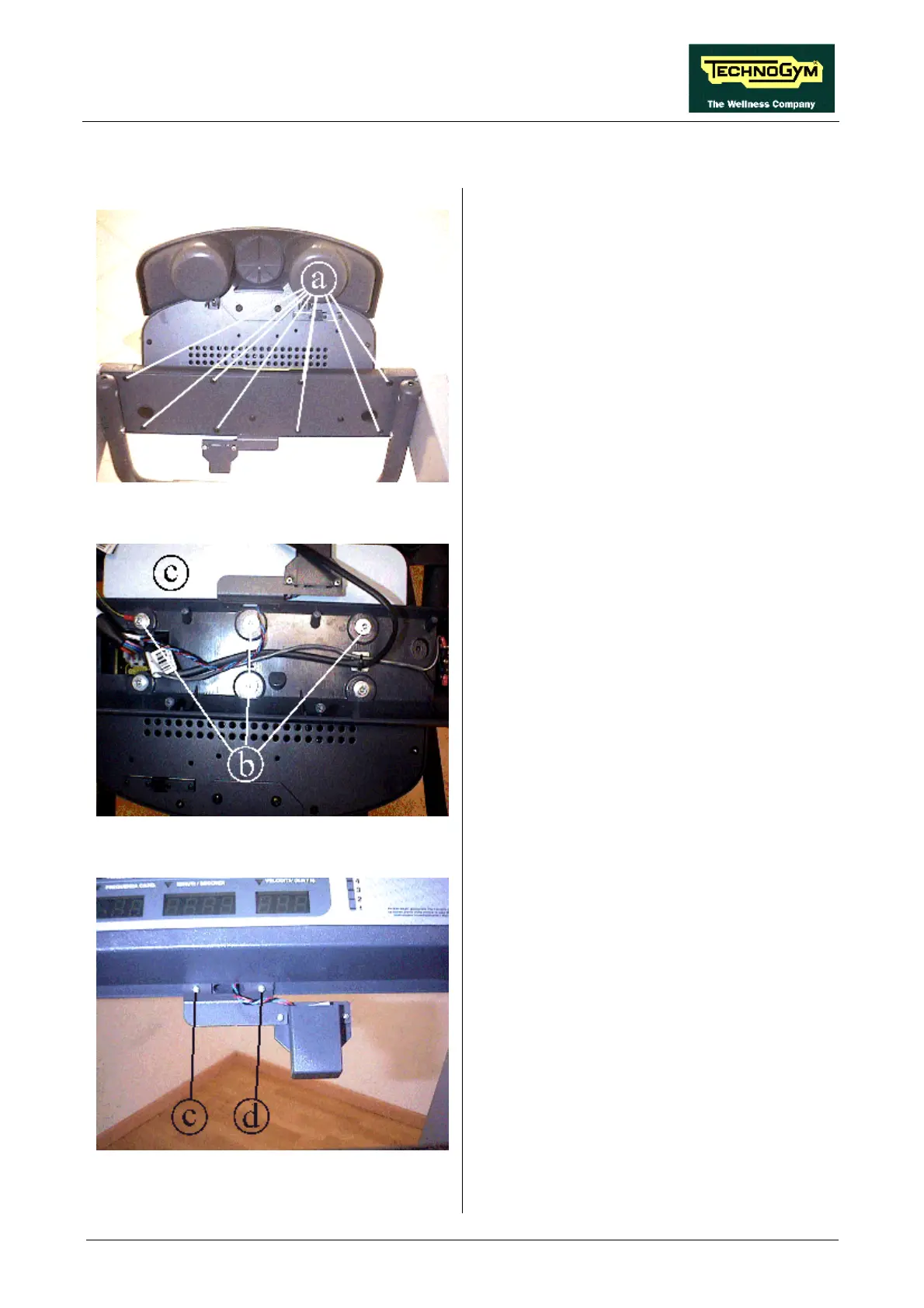

Figure 7.5-3
1. Turn off the machine and unplug the mains
lead from the wall output.
2. Unscrew the 8 screws a using a large Phillips
screwdriver.
3. Rotate the display group through 180°.
Figure 7.5-4
4. Back off the 3 screws b using a 5-mm hex T
wrench.
5. Remove the lexan instruction panel c.
6. Rotate the display group back through 180°.
Figure 7.5-5
7. Undo screw c using a medium phillips
screwdriver.
8. Back off screw d using a medium phillips
screwdriver.
Continued on the following page →
