RUN 600 XTPRO: Service & Maintenance Manual - rev. 1.3
Page 7.17
7.12. DISASSEMBLING THE DRIVEN ROLLER, THE DRIVING
ROLLER, THE TREAD BELT AND THE MOTOR BELT

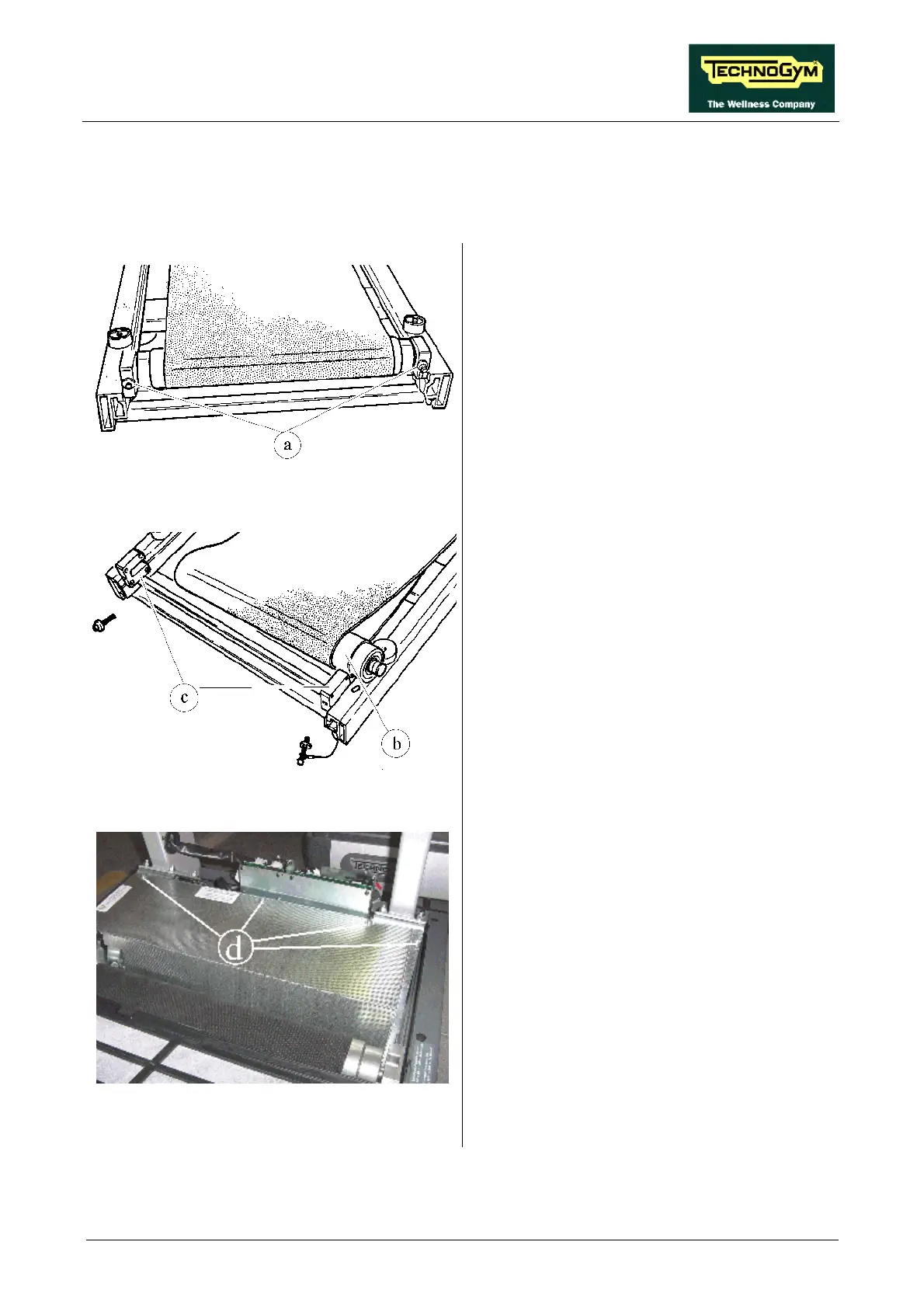

Figure 7.12-1
1. Place the machine in the maximum elevation
position.
2. Carry out the procedure described in
paragraphs 7.9. “Disassembling the motor
guard” and 7.11. “Disassembling the running
track”.
3. Remove the dust guard.
4. Unscrew the 2 screws a using a 6-mm Allen
T wrench.
Figure 7.12-2
5. Pull out the DRIVEN ROLLER b from its
supports c.
6. Remove the DRIVEN ROLLER.
Figure 7.12-3
7. Remove the grid that shield the motor and
inverter area, backing off the 4 screws d
using a 4-mm Allen T wrench.
Continued on the following page→
