RUN 600 XTPRO: Service & Maintenance Manual - rev. 1.3
Page 7.33
7.21. DISASSEMBLING THE LIMIT SWITCHES

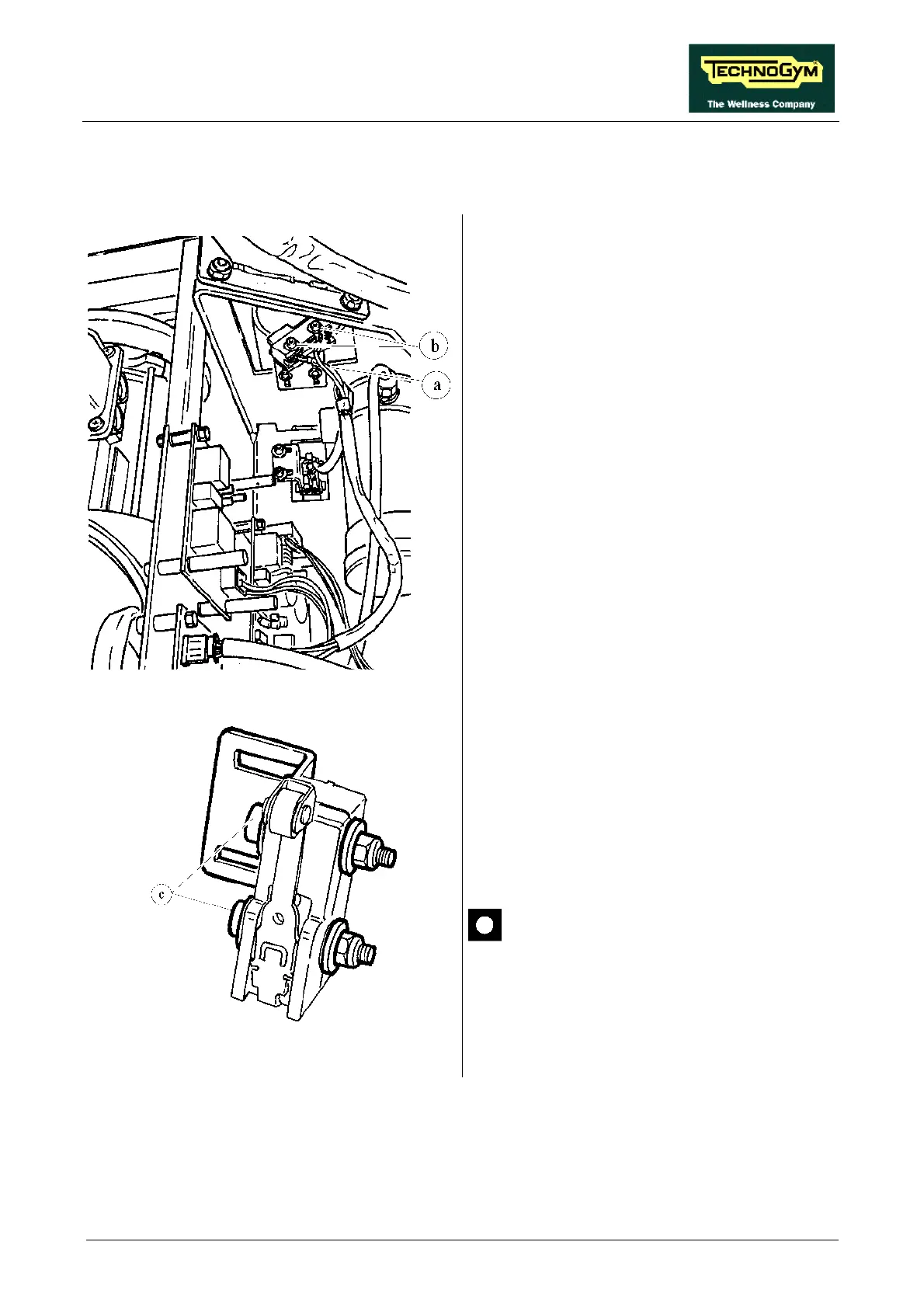

Figure 7.21-1
Carry out the procedures described in paragraphs
7.9. “Disassembling the motor guard” and 7.10.
“Disassembling the front plate”.
To remove the LIMIT SWITCHES:
1. Disconnect the cables a.
2. Unscrew the 2 fixing screws b of the LIMIT
SWITCH support bracket using a 3-mm
Allen T wrench.
3. Remove the LIMIT SWITCH group and the
supporting bracket.
Figure 7.21-2
4. To remove the LIMIT SWITCHES from the
supporting bracket, unscrew the 2 screws c
using a 3-mm Allen T wrench while holding
the nut underneath in place with an 8-mm
wrench.
To reassemble the LIMIT SWITCHES, carry out
the above steps in reverse order.
When reconnecting the cables,
remember that the UPPER LIMIT
SWITCH is connected between
terminals 1 and 3, and the LOWER
LIMIT SWITCH is between terminals 1
and 2.
