7.13. DISASSEMBLING THE BELT MOTOR

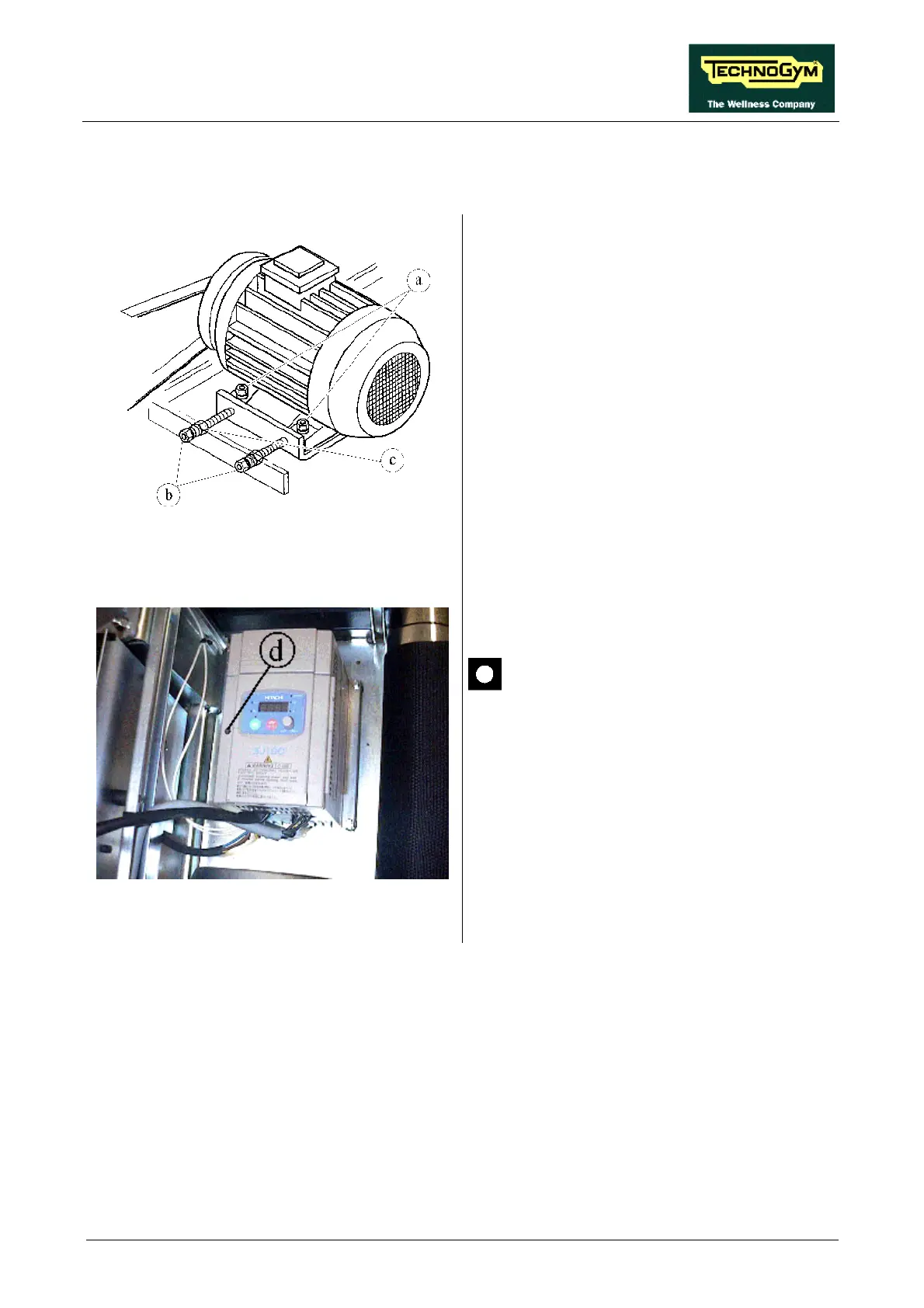

Figure 7.13-1
Carry out the procedure described in paragraph
7.9. “Disassembling the motor guard”.
1. Remove the dust guard.
2. Unscrew the 4 nuts a (2 are concealed by the
motor in the figure at left) which fix the belt
motor to the machine frame using a 13-mm
wrench and holding the screw underneath in
place with a 6-mm Allen T wrench.
3. Back off the 2 outer nuts b and the 2 inner
nuts c using a 13-mm wrench.
4. Move the BELT MOTOR toward the driving
roller.
5. Disengage the motor belt.
Figure 7.13-2
The motor cable is directly connected to
the TREAD BELT MOTOR and must
therefore be disconnected from the
inverter.
6. Unscrew the screw d using a small Phillips
screwdriver.
7. Remove the cover.
Continued on the following page →
