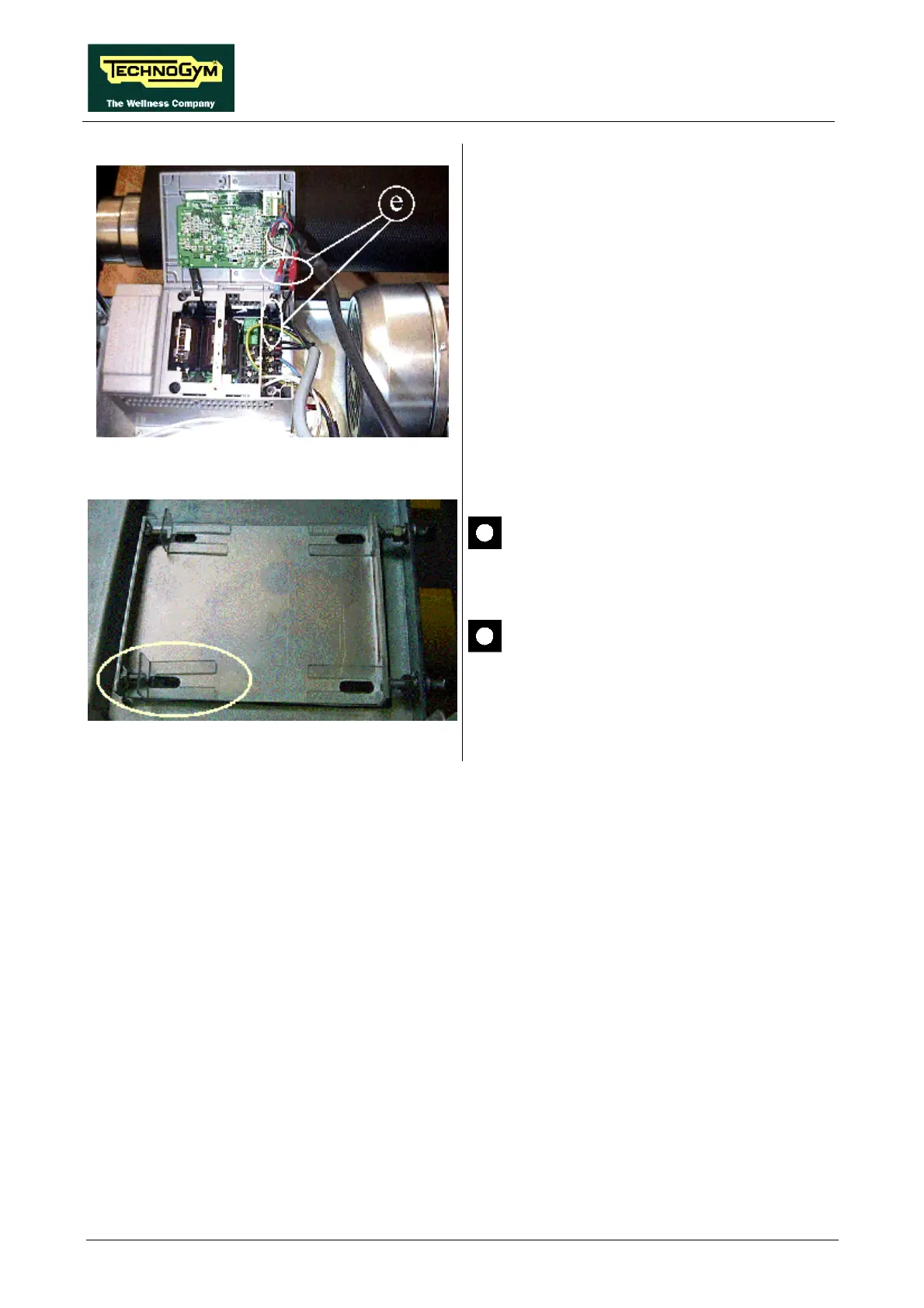

Figure 7.13-3
8. Disconnect connectors e.
9. Remove the BELT MOTOR.
To reassemble the BELT MOTOR, carry out the
above steps in reverse order.
Figure 7.13-4
Remember to reassemble the motor on
the plastic support shown in the figure
at left, that insulate it from the frame.
After completing the procedure, adjust
the tension and alignment of the
MOTOR BELT as described in
paragraph 8.4. .
