7.10. DISASSEMBLING THE FRONT PLATE

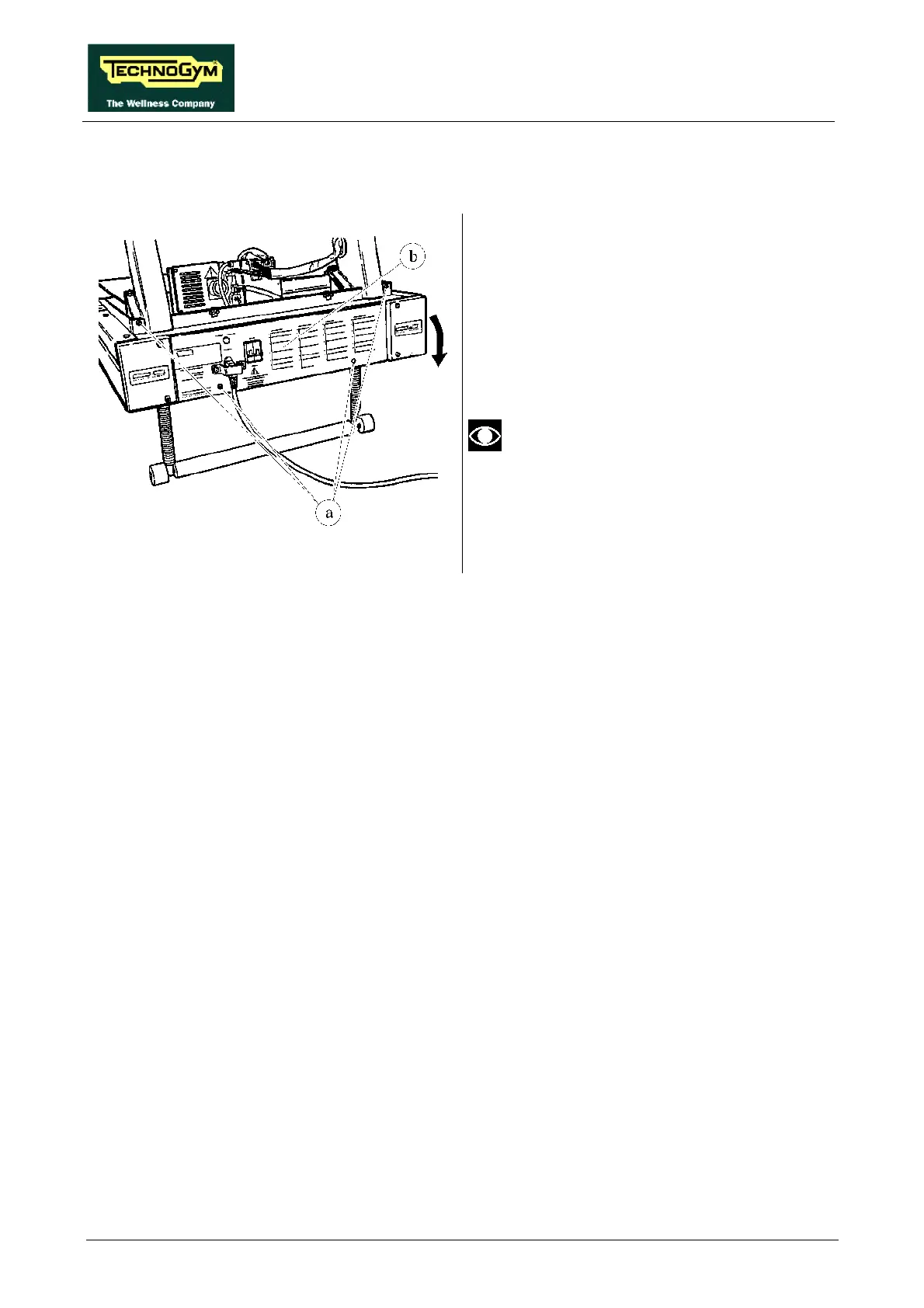

Figure 7.10-1
Carry out the procedure described in paragraph
7.9. “Disassembling the motor guard”.
1. Unscrew the 4 self-tapping screws a using a
large Phillips screwdriver.
2. Rotate the FRONT PLATE b downward.
The plate remains connected to the
frame by two steel cables.
To reassemble the FRONT PLATE, carry out the
above steps in reverse order.
