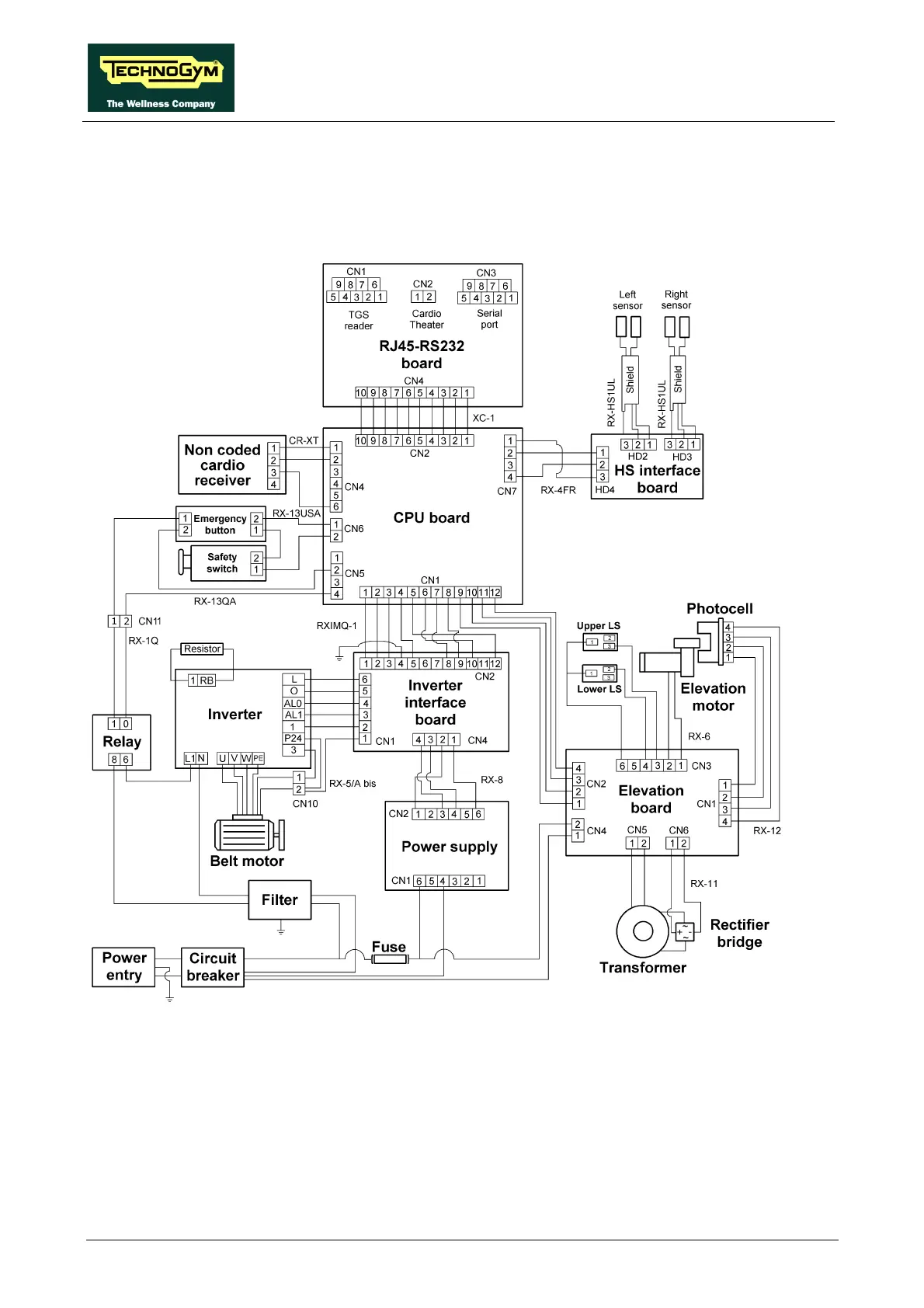

2.6. WIRING DIAGRAM FOR THE 220 USA MODEL
The differences in the 220 USA model are the high voltage power supply section and the presence
of an additional emergency device called a “Safety Switch”:
The differences compared to the 220 standard model are:
• power supply cable;
• high voltage wiring;
• use of a filter only for the inverter;
• presence of an additional emergency device called a “Safety Switch” in series with the standard
emergency button. This device consists of a reed relay and a magnet, connected to a cable which
clips onto the user running on the machine. If the user moves away from the display, the cable is
