RUN 600 XTPRO: Service & Maintenance Manual - rev. 1.3
Page 7.15
7.11. DISASSEMBLING THE RUNNING TRACK

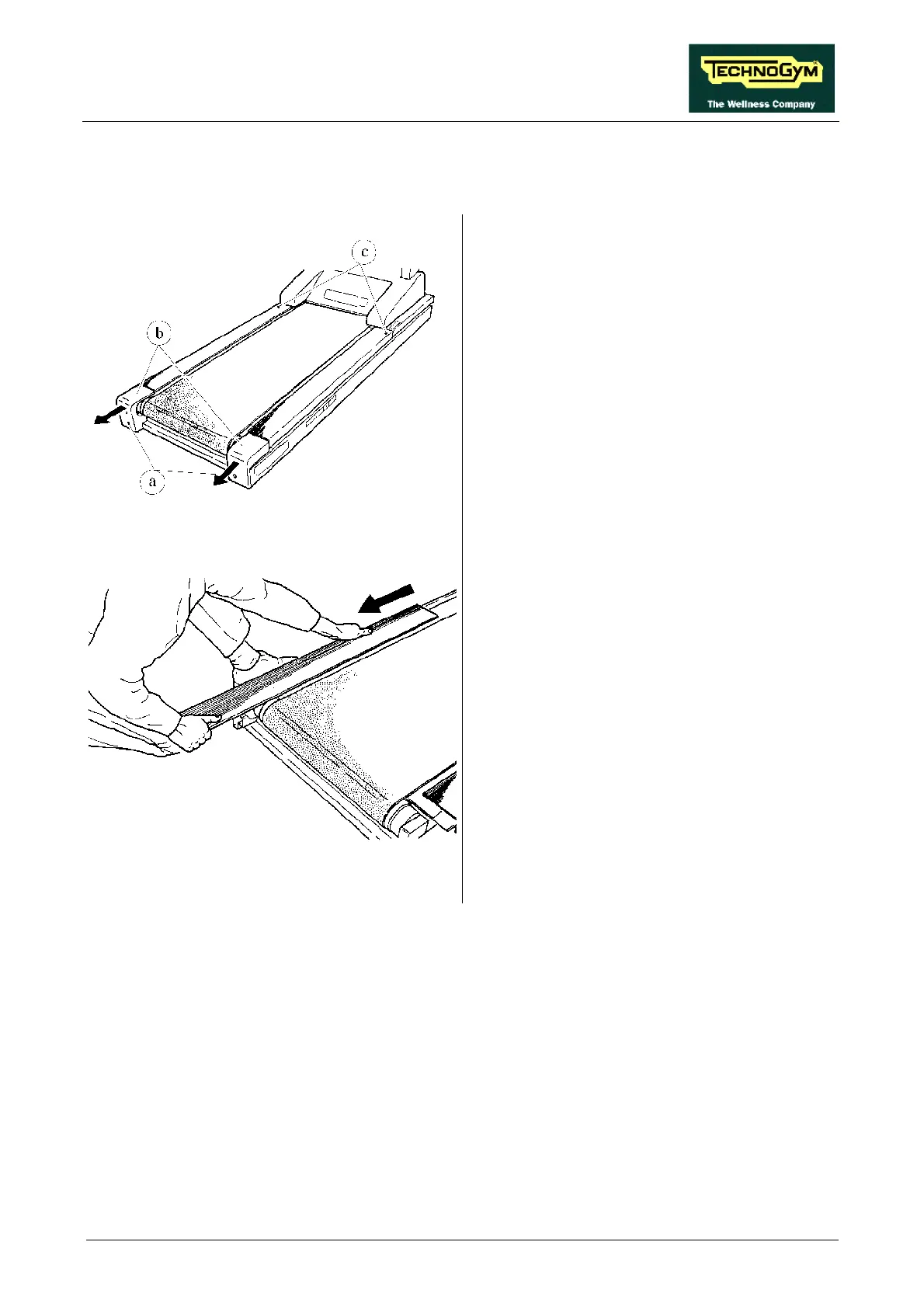

Figure 7.11-1
1. Turn off the machine and unplug the mains
lead from the wall outlet.
2. Unscrew the 2 screws a using a 6-mm Allen
T wrench.
3. Remove the rear caps b on the right and left
hand sides.
4. Unscrew the 2 screws c fixing the footrests
using a 5-mm Allen T wrench.
Figure 7.11-2
5. Remove the footrests by pulling them toward
the back of the machine.
Continued on the following page→
