RUN 600 XTPRO: Service & Maintenance Manual - rev. 1.3
Page 7.25
7.16. DISASSEMBLING THE ELEVATION MOTOR BELT

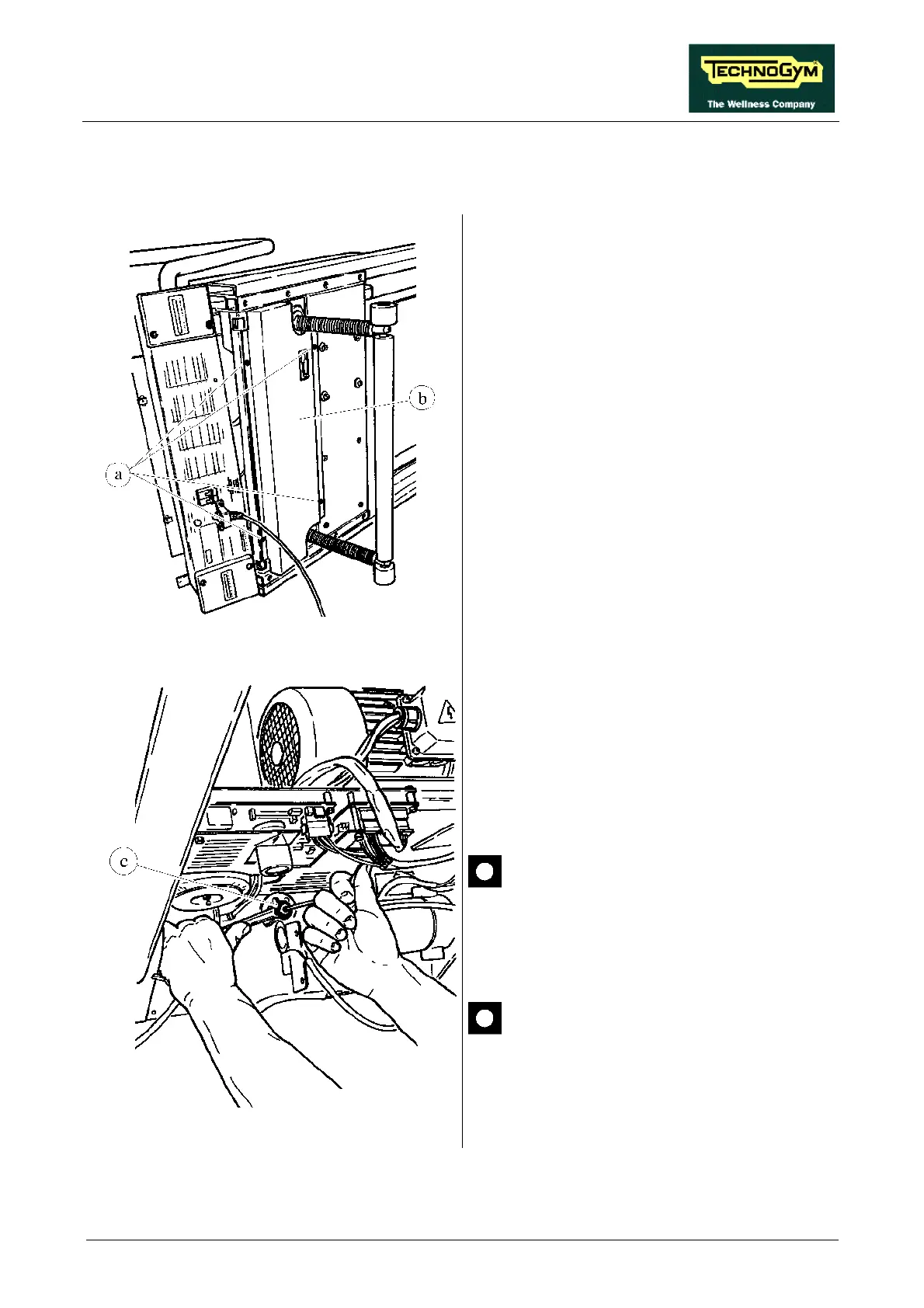

Figure 7.16-1
1. Set the elevation at 7%.
Carry out the procedures described in paragraphs
7.9. “Disassembling the motor guard” and 7.10.
“Disassembling the front plate”.
2. Overturn the machine on the right hand side.
3. Using a large Phillips screwdriver, unscrew
the 4 self-tapping screws a.
4. Remove the belt guard b.
Figure 7.16-2
5. Holding the pivot in place with a 5-mm Allen
T wrench, back off the self-tapping nut of
belt tensioner c using a 17-mm wrench.
6. Rotate the belt tensioner to slacken the
BELT.
7. Remove the BELT.
When removing the BELT, be careful
not to rotate the lead screw nuts.
To reassemble the BELT, carry out the above
steps in reverse order.
After completing this procedure, adjust
the tension of the ELEVATION
MOTOR BELT as instructed in
paragraph 8.5. .
