RUN 600 XTPRO: Service & Maintenance Manual - rev. 1.3
Page 7.5
7.4. DISASSEMBLING THE KEYBOARD

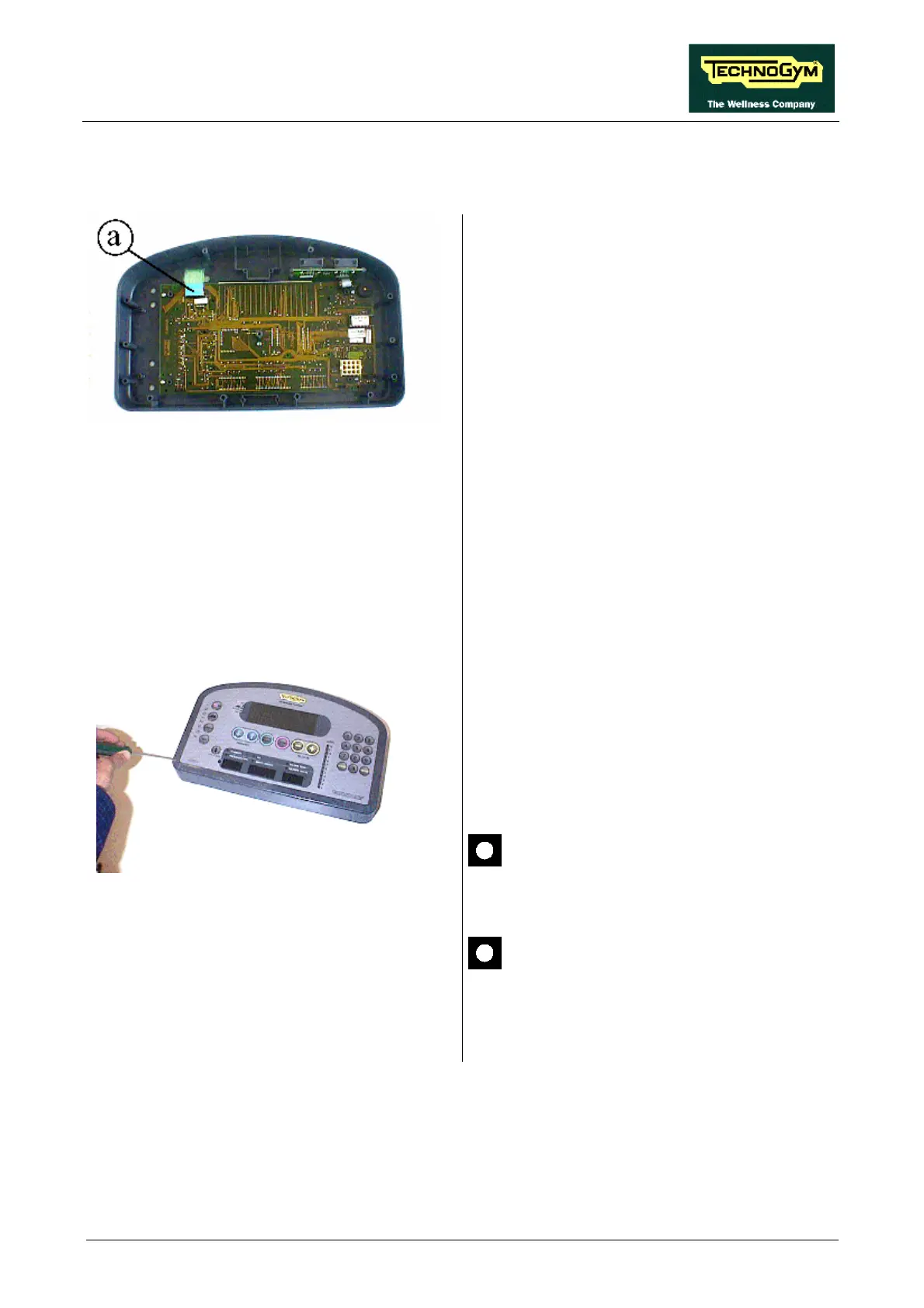

Figure 7.4-1
Carry out the procedure described in paragraph
7.1. “Disassembling the display”.
1. Disconnect KEYBOARD connector a.
Figure 7.4-2
With the display placed on a work bench:
1. Use a sharp tool to lift up a corner of the
KEYBOARD and detach it.
To assemble the new KEYBOARD, with the
display on a work bench:
1. Remove the backing film which protects the
adhesive.
2. Apply the adhesive part, starting from the left
and working towards the right, without
bending the KEYBOARD.
3. Insert the connector in the special slot on the
display and connect it to the CPU board.
4. Remove the protective film.
When reassembling the KEYBOARD,
make sure that none of the keys are bent
or remain pushed in.
The KEYBOARD assembly procedure
can only be carried out once, because
disassembly damages the tracks and
keys.
