7.15. DISASSEMBLING THE INVERTER

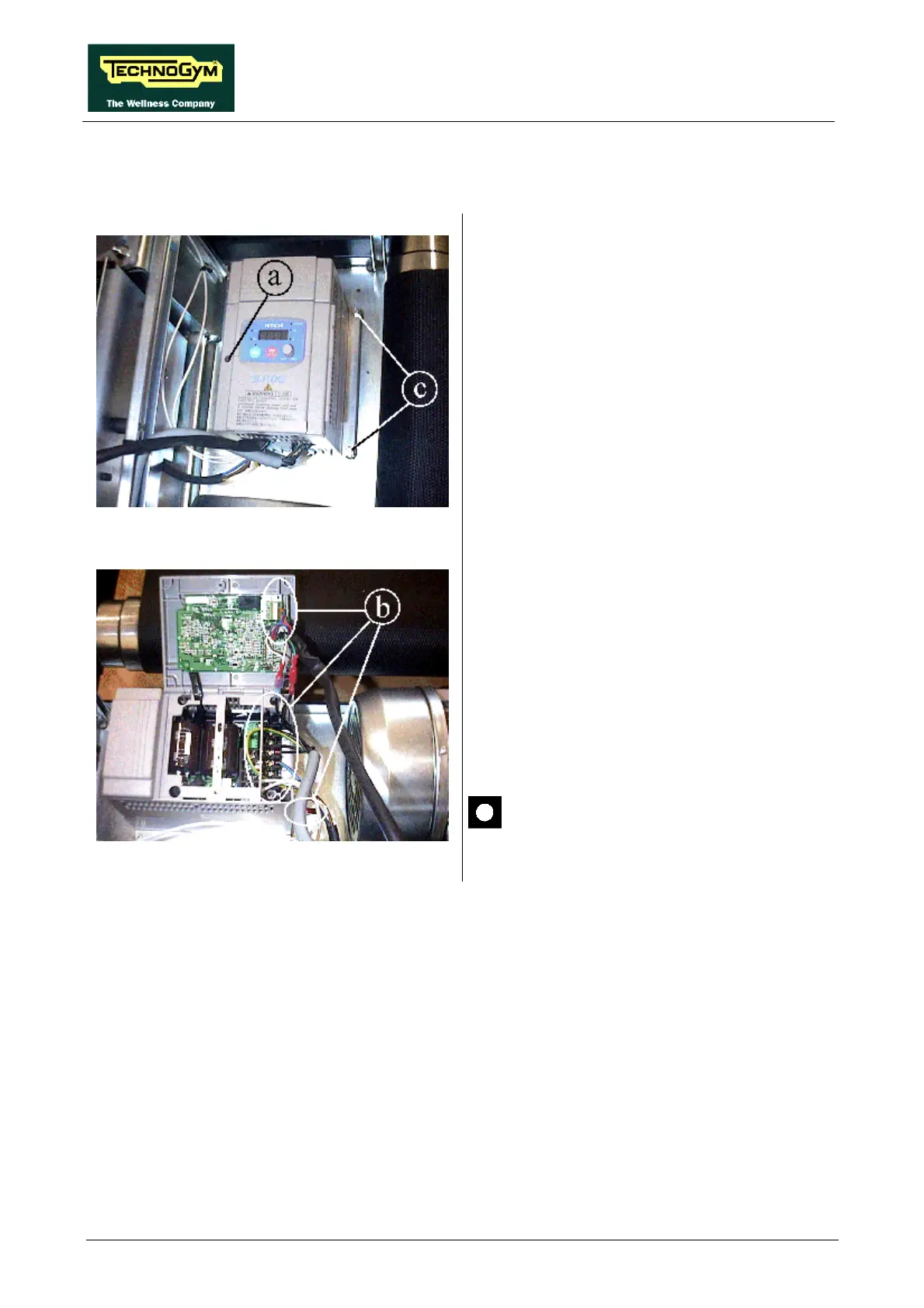

Figure 7.15-1
Carry out the procedure described in paragraph
7.9. “Disassembling the motor guard”.
1. Unscrew the screw d using a small Phillips
screwdriver.
2. Remove the INVERTER cover.
Figure 7.15-2
3. Disconnect the electrical cables b.
4. Unscrew the 4 fixing screws c (shown in
Figure 7.15-1) using an 8-mm wrench
holding the nut underneath in place with an
8-mm wrench.
5. Remove the INVERTER.
To reassemble the INVERTER, carry out the
above steps in reverse order.
After completing this procedure,
calibrate the speed as instructed in
paragraph 8.7. .
