RUN 600 XTPRO: Service & Maintenance Manual - rev. 1.3
Page 7.26
7.17. DISASSEMBLING THE ELEVATION MOTOR

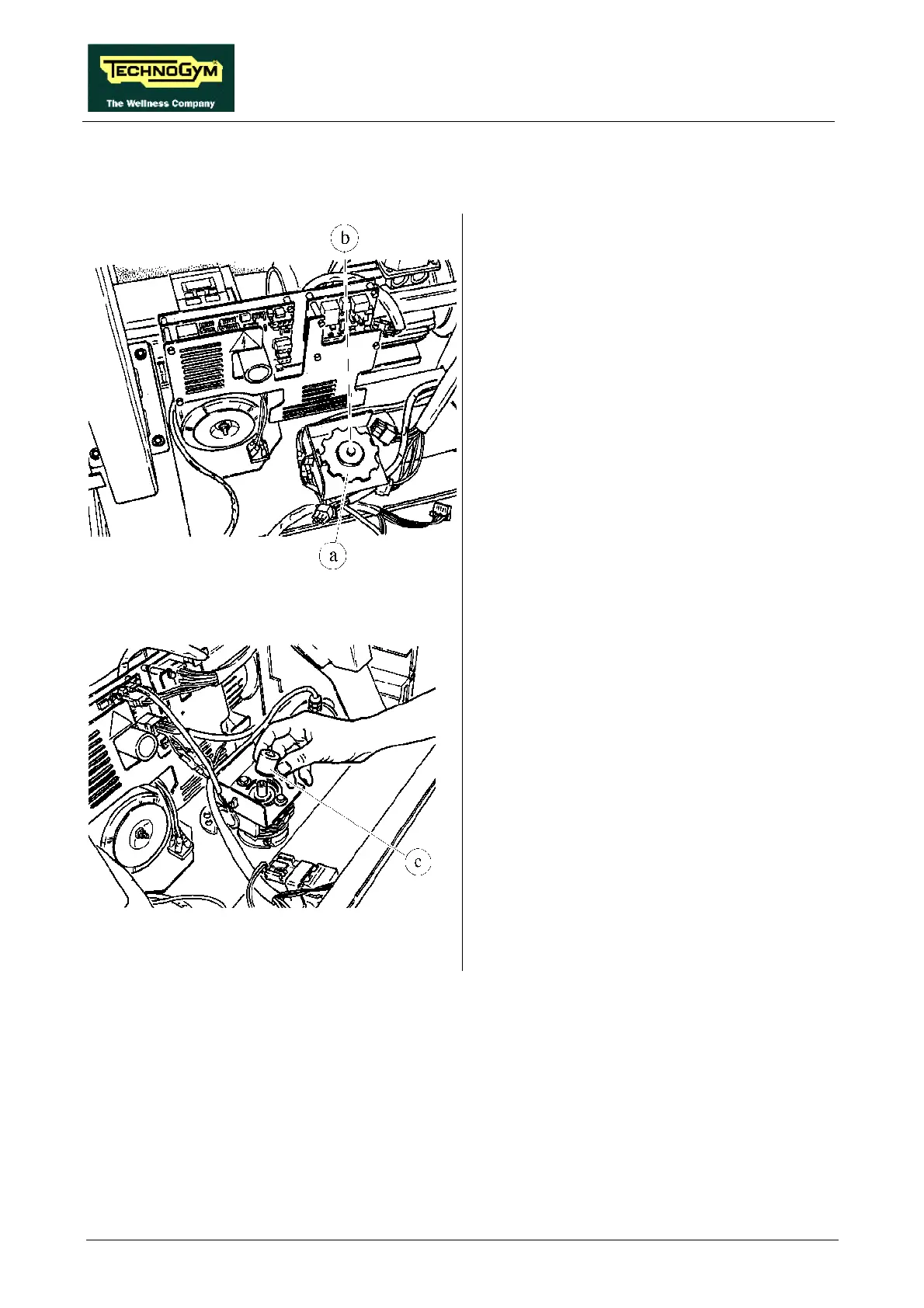

Figure 7.17-1
Carry out the procedure described in paragraph
7.16. “Disassembling the elevation motor belt”
up to the slackening of the belt (step 7).
1. Disconnect the motor power supply cable and
the photocell cable.
2. If present, use a 10-mm wrench to remove
the 2 fixing screws from the cover of the
protective housing of encoder wheel a.
3. Open the cover.
4. Use a 10-mm wrench to remove screw b.
5. Disassemble encoder wheel a.
Figure 7.17-2
6. Remove the spacer c.
Continued on the following page →
