RUN 600 XTPRO: Service & Maintenance Manual - rev. 1.3
Page 4.1
4. ACCESSORIES
4.1. CONNECTING TO THE TGS
The machine is connected to the Technogym System by means of the 9 pin male D-connector,
situated on the back of the control panel, which provides the RS 232 serial port for connecting the
TGS reader. The connecting cable is already directly connected to the TGS reader itself:
TGSRN1: Connecting cable
Control panel – Retrofit
Control panel
DB9 male
Signal Color Retrofit
1 +12 Vdc Yellow 8
5 Ground Green 6
3 Rx Brown 2
2 Tx White 1
For all further information, including troubleshooting, refer to the following manual: “Wellness
System: Installation Guide”.
4.2. CONNECTING TO THE CARDIO THEATER
The machine is connected to the Cardio Theater by means of an RJ45 connector which has the
following pin out:
RJ45 Connector Signal
5 +5 Vdc
7 Ground

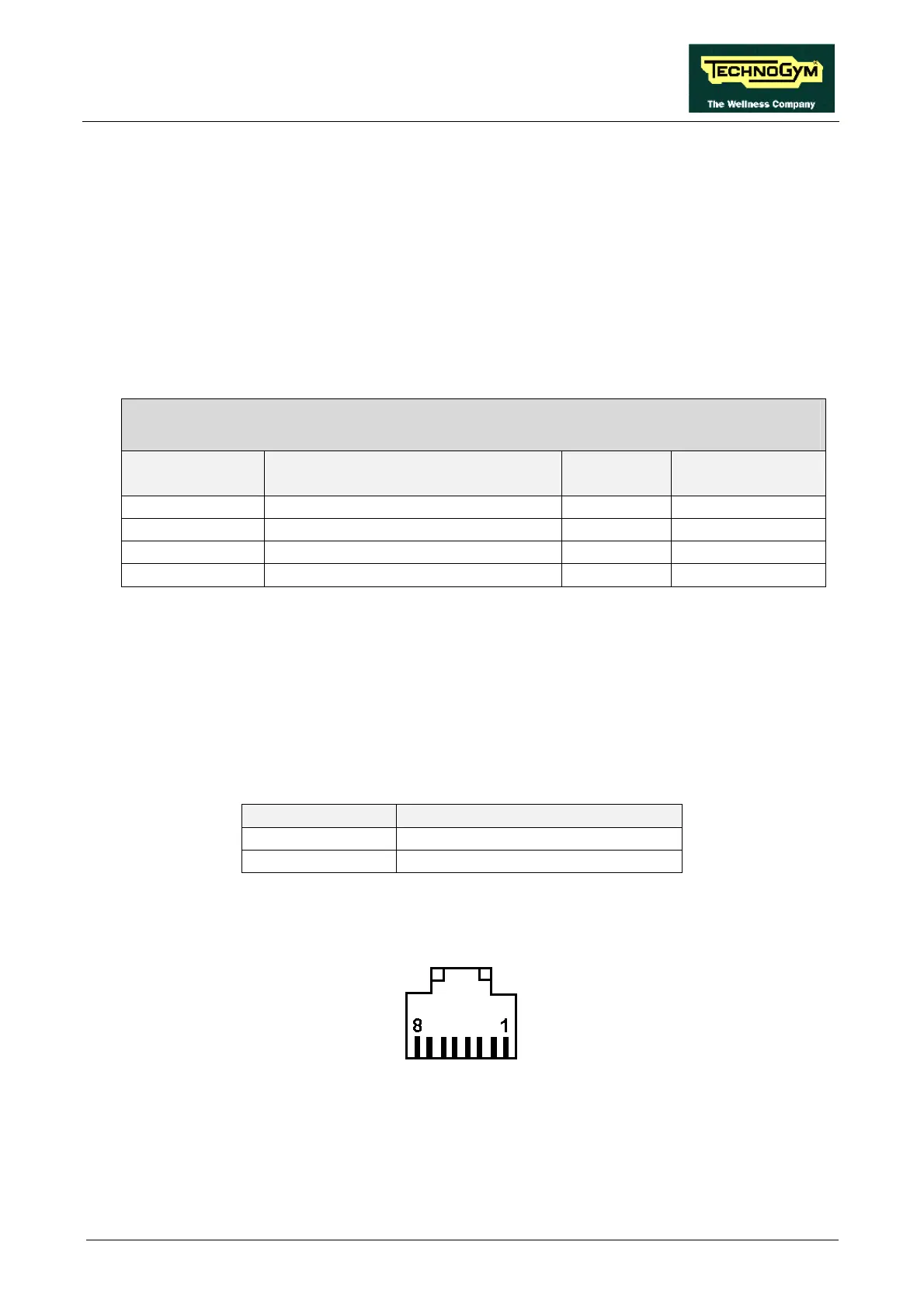

On the RJ45 connector, which is illustrated below, pin 1 is the one on the far right, with the locking
tab facing upward.
The remaining pins are not connected.
