RUN 600 XTPRO: Service & Maintenance Manual - rev. 1.3
Page 7.9

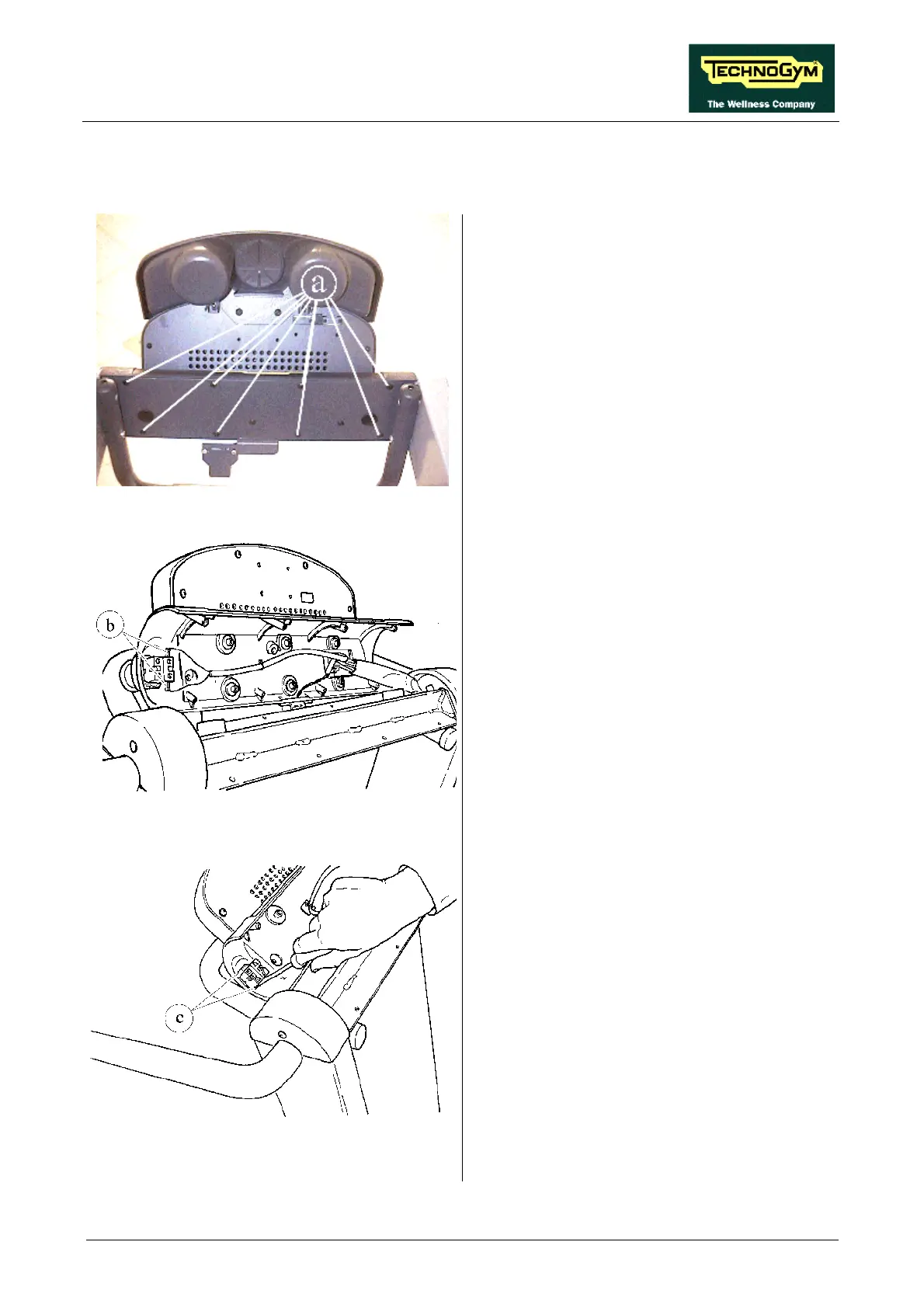

7.6. DISASSEMBLING THE EMERGENCY BUTTON
Figure 7.6-1
1. Turn off the machine and unplug the mains
lead from the wall outlet.
2. Unscrew the 8 self-tapping screws a using a
large Phillips screwdriver.
Figure 7.6-2
3. Open the display panel support.
4. Disconnect the two EMERGENCY
BUTTON wires b, using a large Phillips
screwdriver.
Figure 7.6-3
5. Back off the 2 screws c which fix the
EMERGENCY BUTTON to the panel using
a large Phillips screwdriver.
Continued on the following page→
