RUN 600 XTPRO: Service & Maintenance Manual - rev. 1.3
Page 7.28

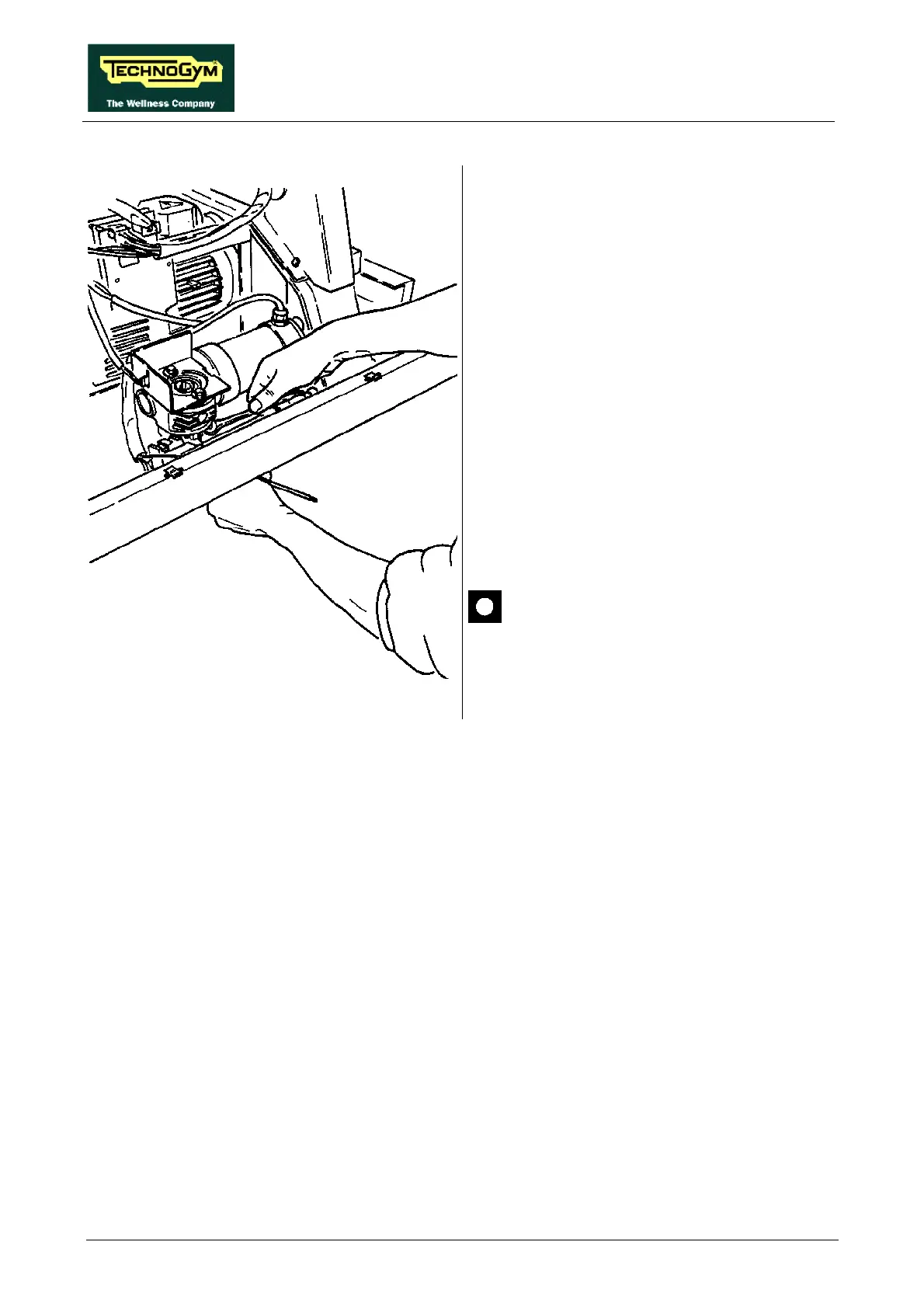

Figure 7.17-5
9. Disassemble protective housing of the
encoder wheel, using, depending on the type
of motor:
• “BONFIGLIOLI” motor: 10-mm wrench;
• “SITI” motor: 8-mm wrench.
10. Unscrew the 4 fixing screws of the
ELEVATION MOTOR using a 4-mm Allen
T wrench and holding the nut in place with a
10-mm wrench.
11. Remove the ELEVATION MOTOR.
To reassemble the ELEVATION MOTOR, carry
out the above steps in reverse order.
After completing the procedure, adjust
the tension of the elevation motor belt as
instructed in paragraph 8.5. .
