SYNCHRO EXCITE Class & Trend: Service & maintenance manual - rev. 2.0
Page 7.9

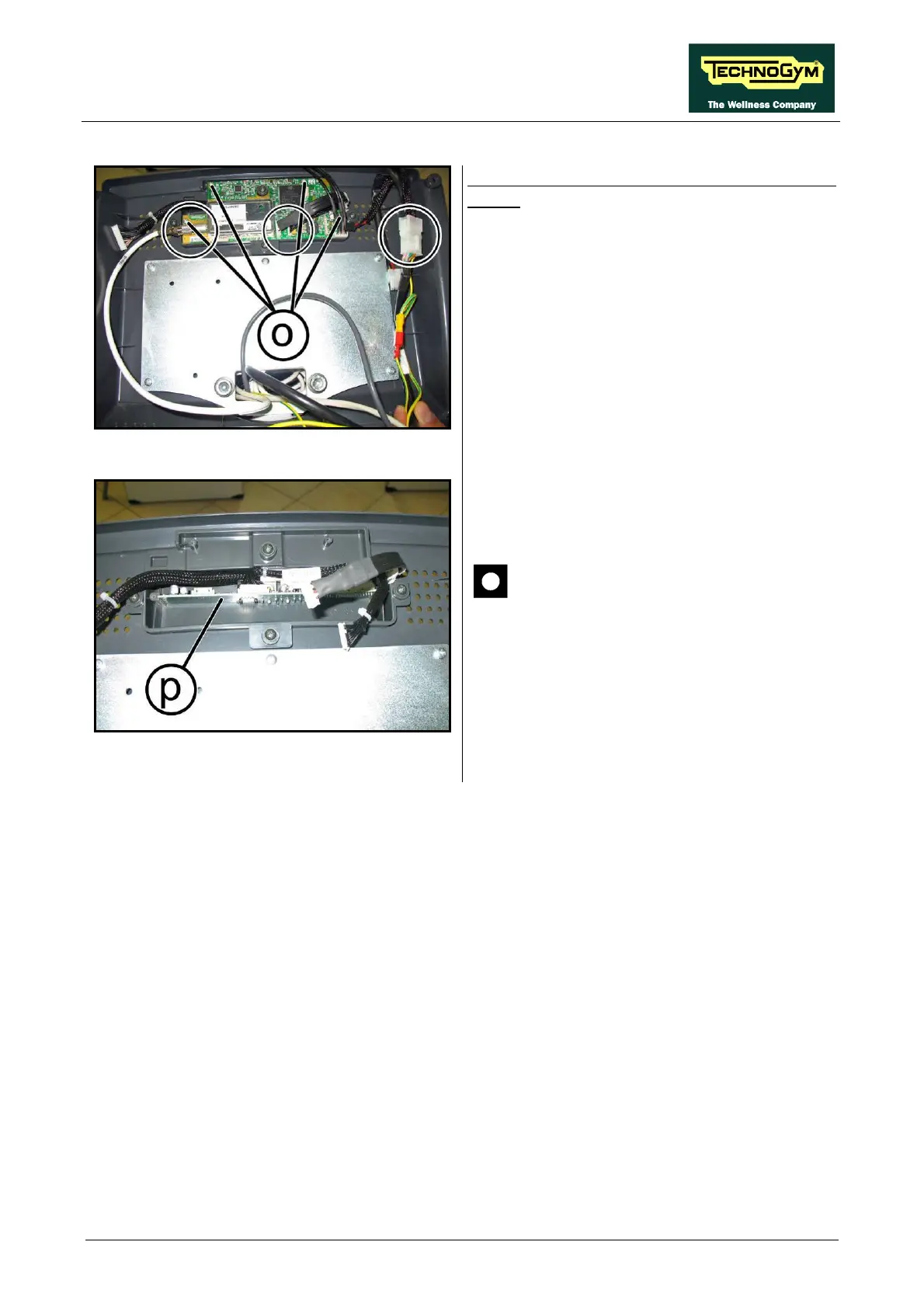

Figure 7.2-16
To disassemble the Digital TV and AUX input
Board:
1. Work on the rear display support.
2. Disconnect the cable coming from the Input
AUX Board and the antenna cable
highlighted in the figure and the power
supply cable.
3. Back off the 4 screws (o) with a medium
Phillips screwdriver.
4. Remove the Digital TV Board.
Figure 7.2-17
5. Slip off the AUX Input Board (p) from its
housing.
ATTENTION: During the reassembly of
the Digital TV Board, pay attentions to
not squash the cables under it.
To reassemble the circuit boards, carry out the
above steps in reverse order.
