Figure 3-7
3.7.8 Relay Output Description
6 ways relay alarm output. Provide external power to external alarm device.
To avoid over loading, please read the following relay parameters sheet
carefully.
(See below table)
The controllable +12v can be used to restore the smoke detector.

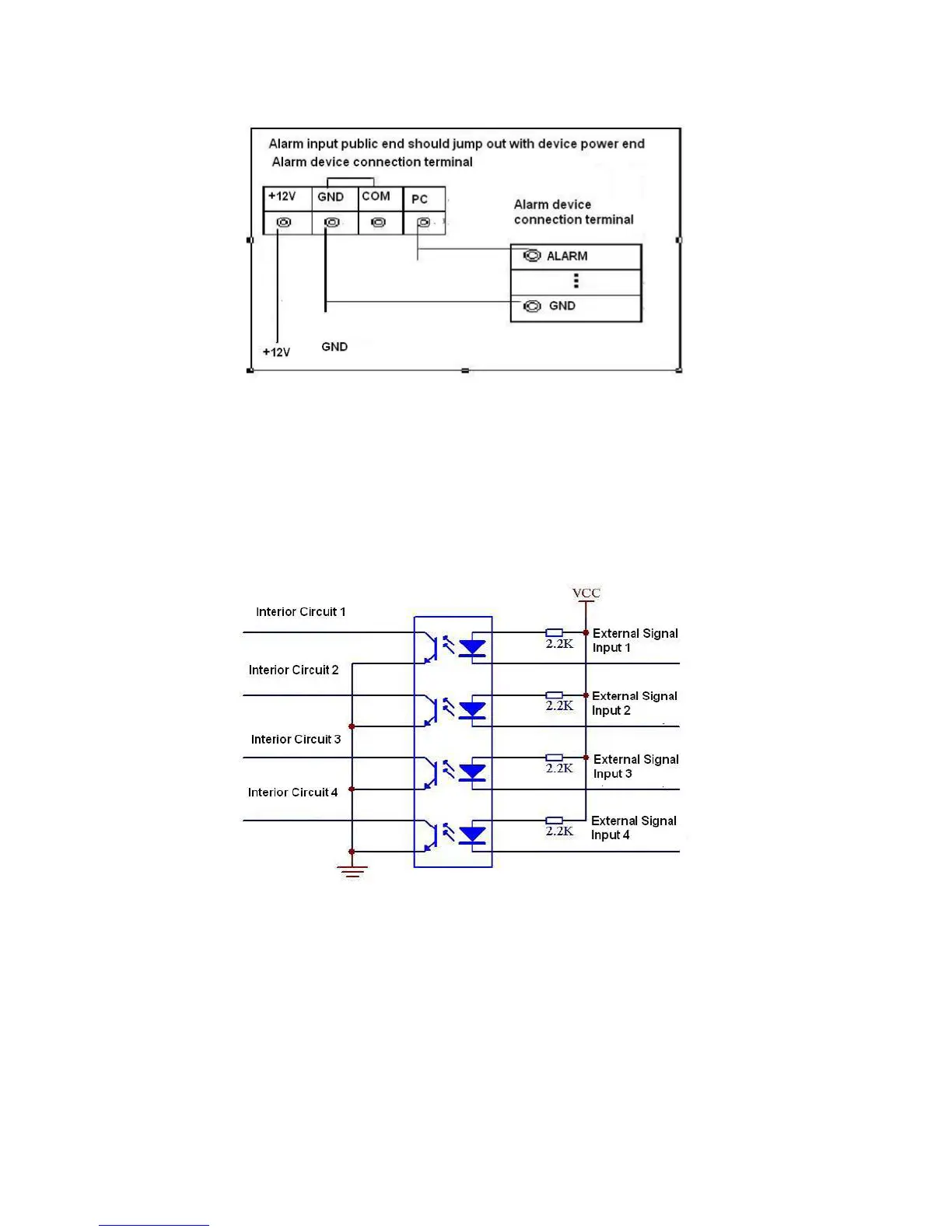

Please refer to Figure 3-9 for alarm input module information.
Figure 3-9
Please refer to Figure 3-10 for alarm output module information.
30
