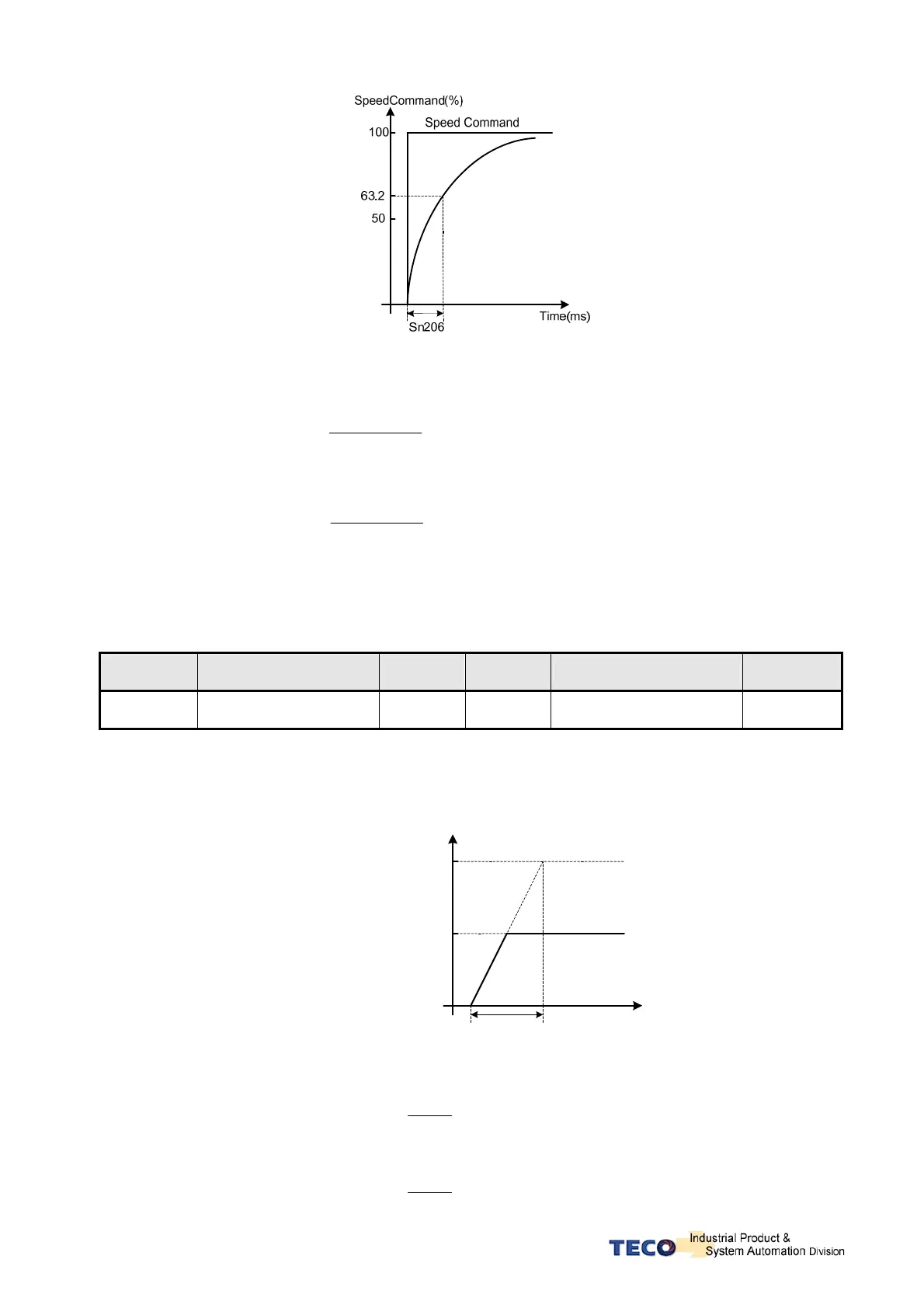

TECO JSDEP Series User Manual

5-14
Setting example:
(1) To achieve 95% of speed command output in 30msec:
Set
10(msec)
95%)-ln(1-
30(msec)
Sn206 ==
(2) To achieve 75% of speed command output in 30msec:
Set
22(msec)=
75%)-ln(1-
30(msec)
=Sn206
ln= Natural log
(2)Speed command linear acceleration/deceleration function:
Set Sn205=2 to enable the use of speed command linear acceleration/deceleration function.
Parameter Name Default Unit Setting range
Control
mode
Sn207
Speed command linear
accel/decel time constant
1 msec 1~50000 S
Linear acceleration/deceleration time corresponds to the time in which the speed increases
(linearly) from zero to the rated speed. As shown in the diagram below.
Speed Command
Time(ms)
Sn207
Current Speed Command
Rated Speed Command
Setting examples:
(1) To achieve 50% of rated speed output in 10msec:
Set
20(msec)
50%
100%
10(msec)Sn207 =×=
(2) To achieve 75% of rated speed output in 10msec:
Set
13(msec)
75%
100%
10(msec)Sn207 =×=
