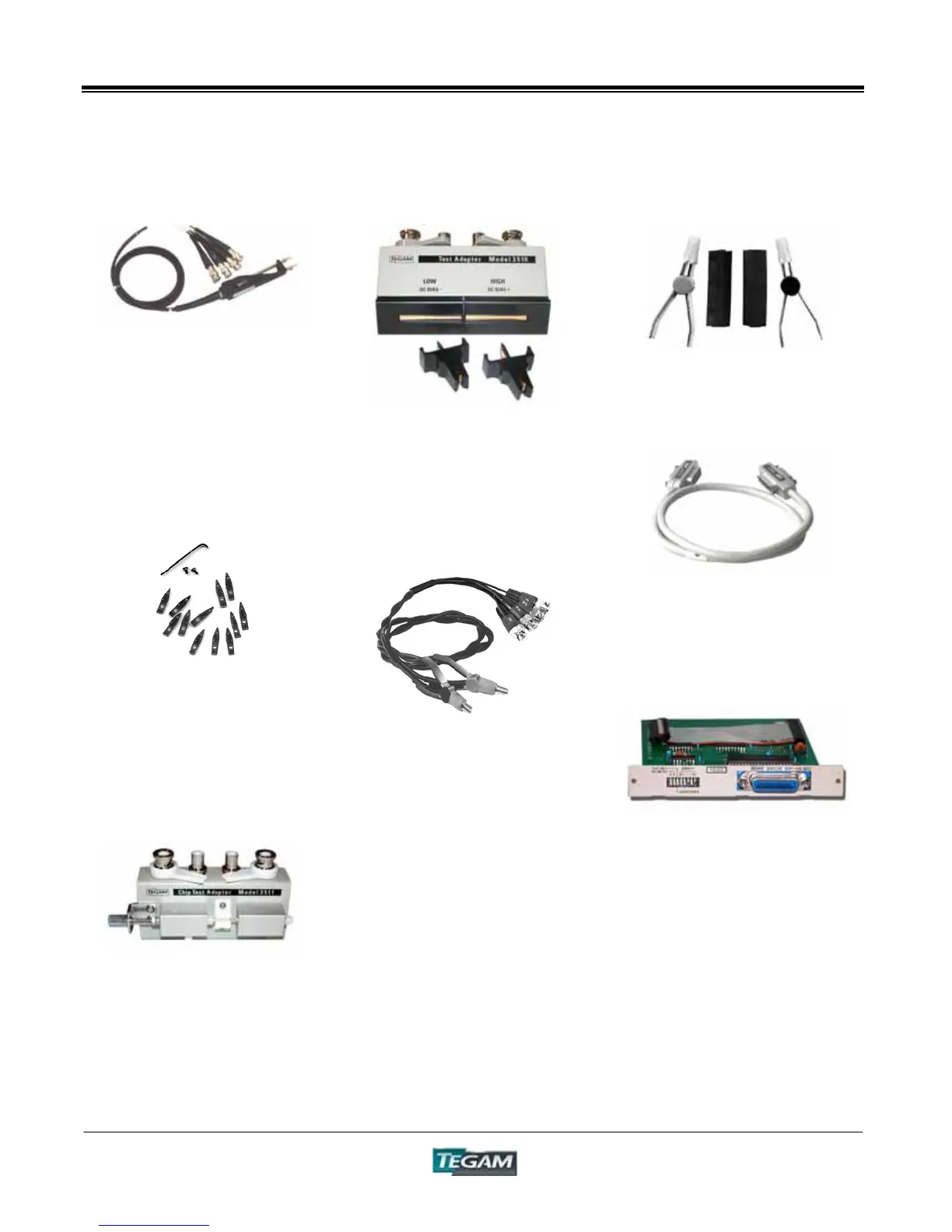

3550 Options and Accessories
2005B - Chip Tweezers (5ft)
This four-terminal tweezer set makes
solid connections to chip components
in manual sorting applications.
Capacity of jaws is 12.7mm (0.5
in.). The 2005B Chip Component
Tweezer Set includes a 1.5m (5 ft)
cable for connection to the
2150/2160. Contact tips are
replaceable. P/N 47422.
47422 Chip Tweezer
Replacement Kit
Tweezer tips are intended to last
100,000 to 500,000 operations. An
optional tip replacement kit includes
12 replacement tips, 2 screws and 1
wrench.
3511 - SMD Test Fixture
Available for performing three
terminal measurements on surface
mount devices. Connects directly to
the front panel of the 3550. Use the
3511 for medium and high
impedance measurements.
3510-Radial Lead Adapter
This sorting fixture allows for efficient
four-wire measurement of leaded parts.
The test fixture features spring action
contacts for easy insertion and removal
of test components.
47454 – Kelvin Klips
Kelvin Klips allow solid four-terminal,
Kelvin connections to leaded
components. The jaws are assembled
with hardened gold-plated, beryllium
copper, which ensures low contact
resistance, low thermal emf to copper,
high corrosion resistance, and long
service life. An alligator clip is provided
allowing connection of a passive guard.
The assembly includes a 5 ft (1.5m)
cable for connection to the 3525.
NOTE: Under certain measurement
conditions, Kelvin Klips can cause a loss
of measurement accuracy. Fixtures
3510, 3511, or 2005B chip tweezers are
recommended for the following
component values:
C<100pF; L < 100µH; R > 1Mƻ
KK100- Kelvin Klip™ Rebuild
Kit
Kelvin Klip™ replacements for
construction or repair of Kelvin Klip
leads.
GPIB (IEEE-488) Cables
1583-3 – 1-meter GPIB buss cable
1583-6 – 2-meter GPIB buss cable
1583-9 – 3-meter GPIB buss cable
3505 – GPIB Interface
3550-900-01 – User’s Manual-
Hard Copy
