Getting Started

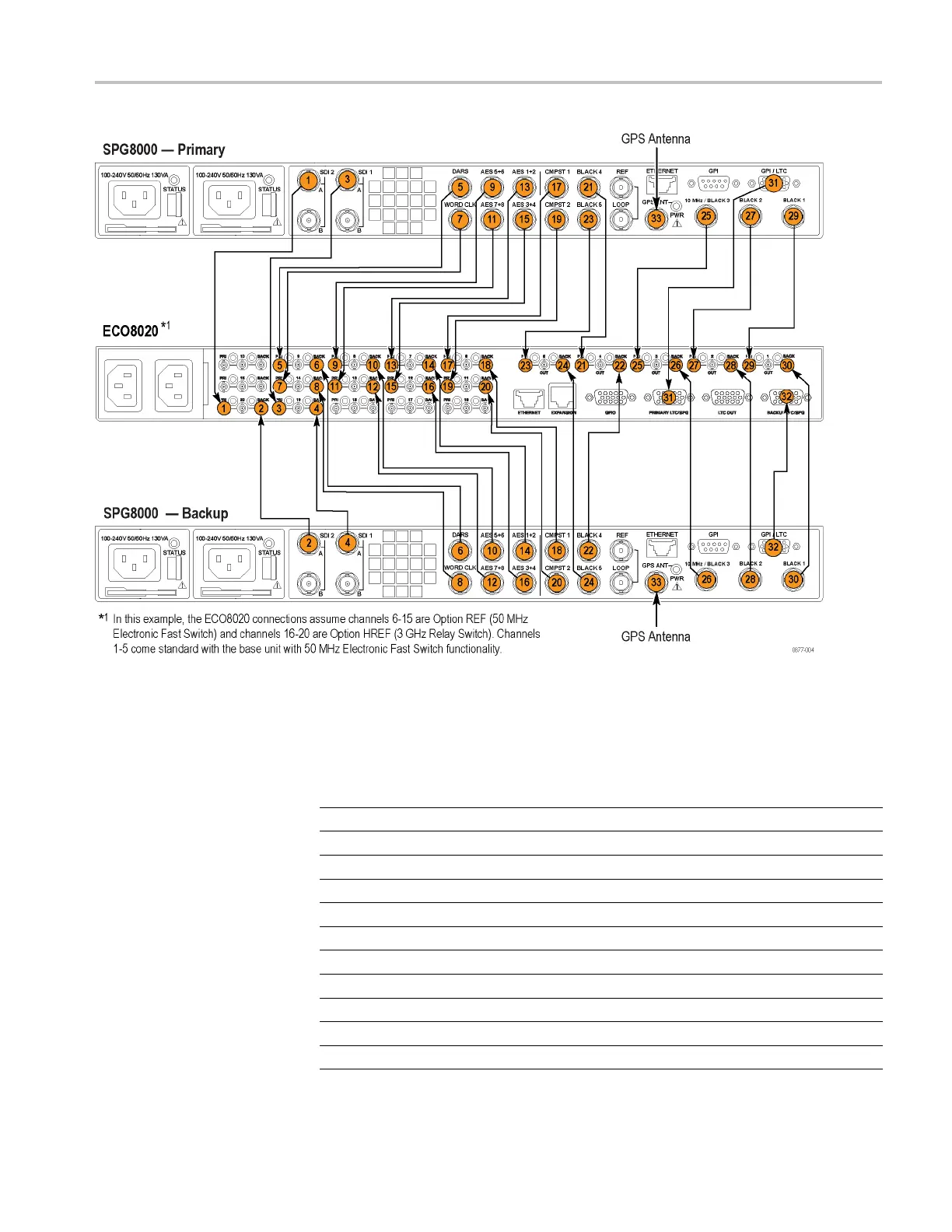

Figure 4: ECO8020 and SPG8000 system installation example
Table 6: ECO8020 and SPG8000 system installation example connections
Connection
number (See
Figure 4.)
External
signal
SPG8000
primary
connector
SPG8000
backup
connector
ECO8000
connector
1
SDI 2
PRI 20
2
SDI 2 BACK 20
3
SDI 1
PRI 19
4
SDI 1 BACK 19
5
DARS
PRI 9
6
DARS BACK 9
7
WORD CLK
PRI 14
8
WORD CLK BACK 14
9
AES 5+6
PRI 8
10
AES 5+6 BACK 8
11
AES 7+8
PRI 13
ECO8000 Series Automatic Changeover Unit User Manual 15
