Menus
Menu readout updates
Many of the menu
readouts are static and d o not update when instrument
conditions change. To view the latest menu readout information, press the BACK
button to exit the current menu and then press the ENTER button to r eenter the
menu and view t he current readout inform ation. This is especially useful when
viewing items in the STATUS menu.
Main menu
The Main menu is the top level menu and appears by default when the instrument
is turned on. Use the Main menu t o access the STATUS, CHAN NEL, and
SYSTEM CON
FIG menus. Use the up (▲)anddown(▼) arrow buttons to scroll
through the menu selections. If you have navigated to a submenu, you may need
to press the BACK button several times to return to this top-level menu.

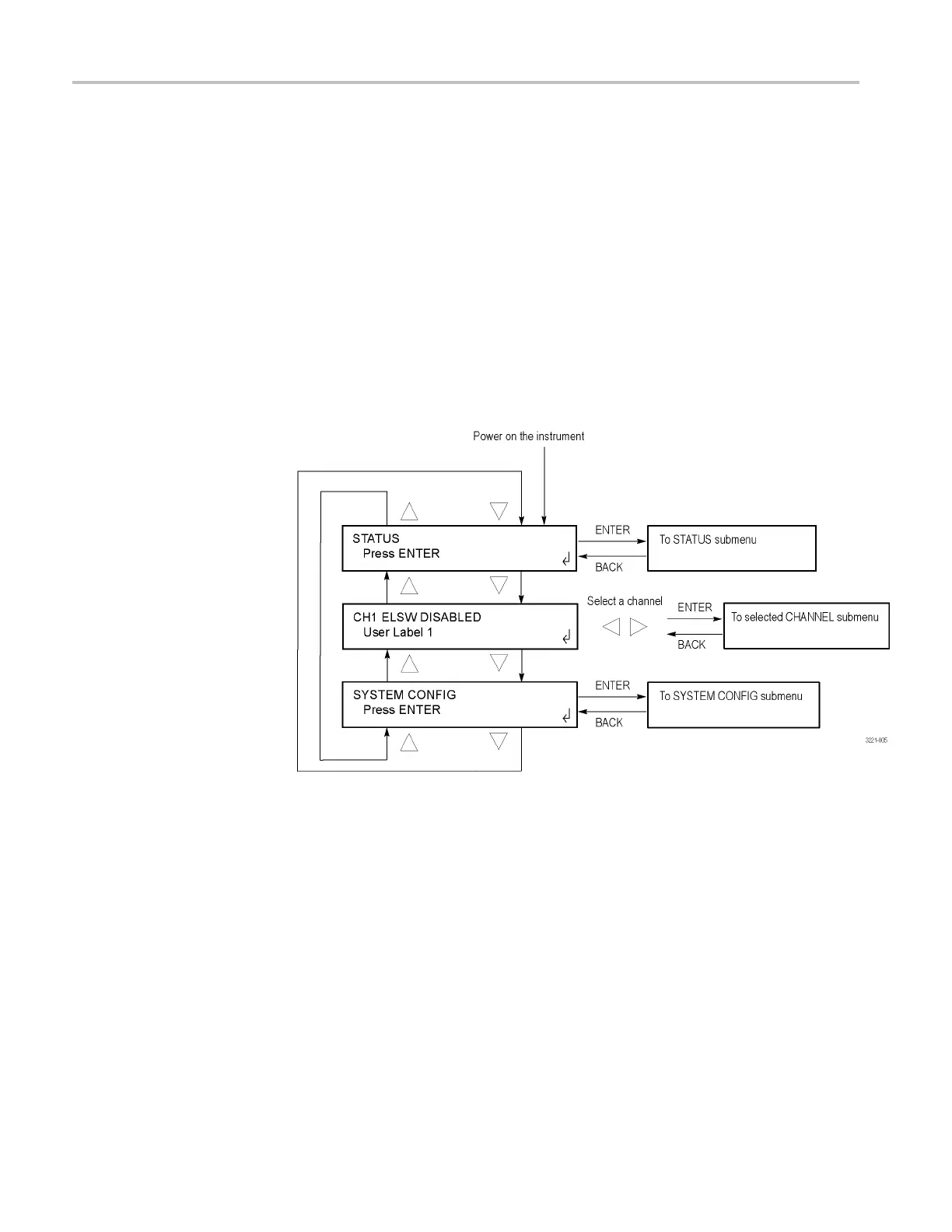

Figure 11: Main menu
54 ECO8000 Series Automatic Changeover Unit User Manual
