Operating Basics

Controls, con

nectors, and LED indicators

The following ﬁgures show the front-panel controls and rear-panel connectors for

the ECO8000 and ECO8020 changeover units. See the following table for a

description

of each control and connector.

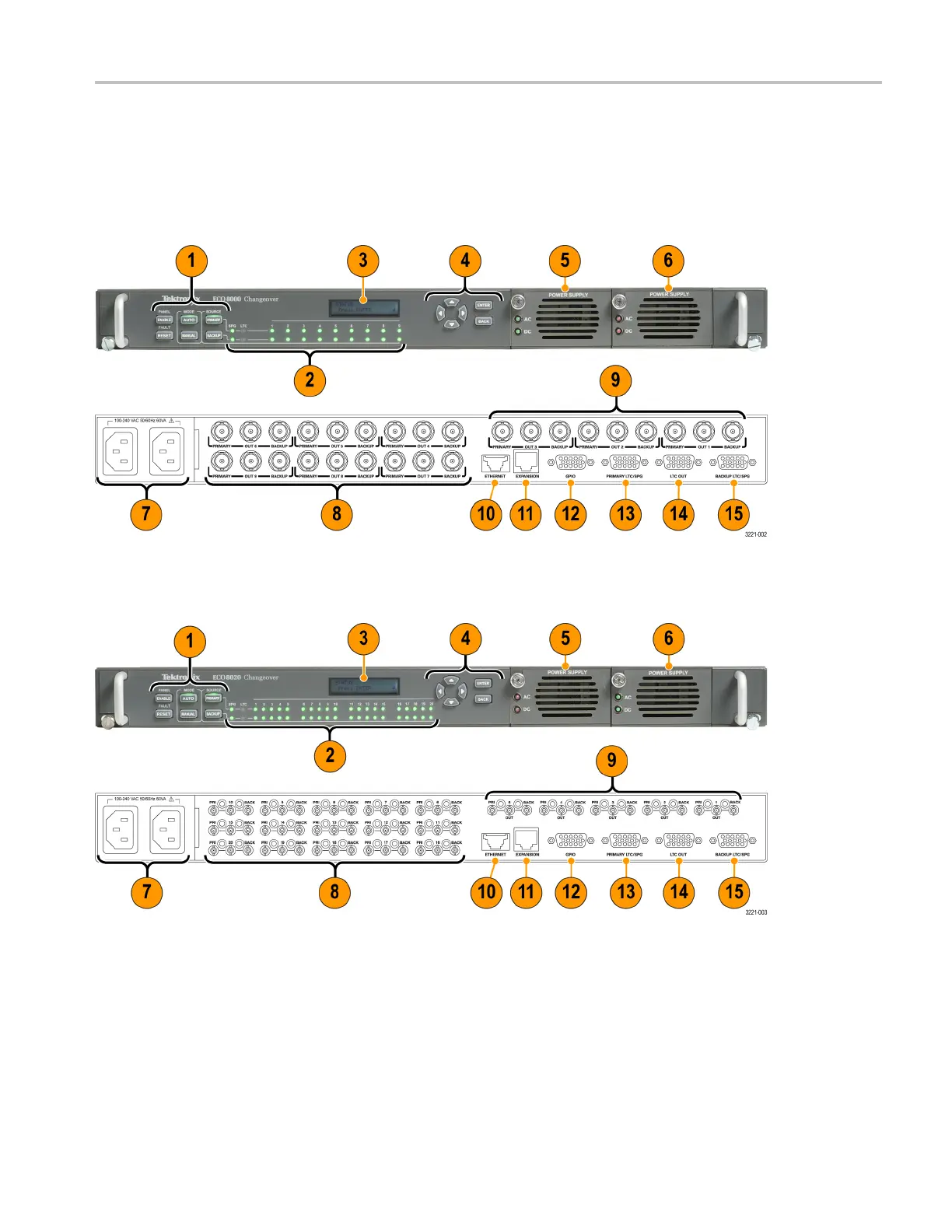

Figure 6: ECO8000 controls and connectors

Figure 7: ECO8020 controls and connectors

ECO8000 Series Automatic Changeover Unit User Manual 19
