4200A-SCS Parameter Analyzer User's Manual Section 8: Use the 4200A-CVIV Multi-Switch
4200A-900-01 Rev. D/April 2020 8-7
2. From the project tree, select the cvu-cviv-comp-collect action.

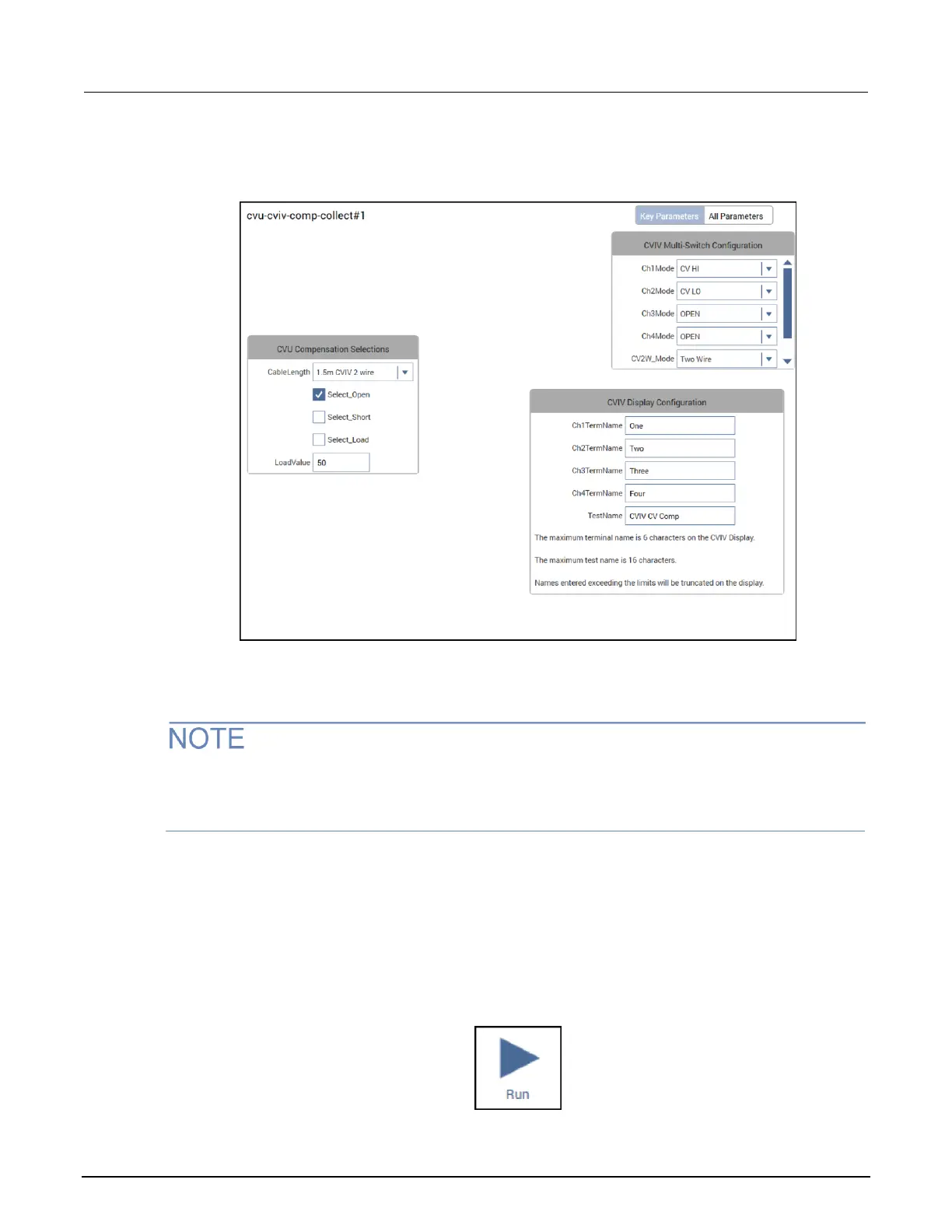

Figure 109: cvu-cviv-comp-collect Action
3. From the CVIV Multi-Switch Configuration terminal settings box, set the output mode of the
4200A-CVIV to Two Wire.
The following step changes the name of each channel to match the corresponding MOSFET terminal
of each channel. This step is not necessary for the action to run, but it does allow you to see which
terminals correspond to each output terminal on the 4200A-CVIV display.
4. In the CVIV Display Configuration box, set channel 3 (Gate) to CV HI and the remaining channels
(1, 2, and 3) to CV LO.
5. From the CVU Compensation Selections, enable open correction by selecting Select_Open.
6. Make sure that the DUT is disconnected.
7. Select Run to configure the 4200A-CVIV and collect compensation constants.
Figure 110: Run the action
