Section 8: Use the 4200A-CVIV Multi-Switch 4200A-SCS Parameter Analyzer User's Manual
8-10 4200A-900-01 Rev. D/April 2020
Configure the action
To configure the action:
1. Select Configure.

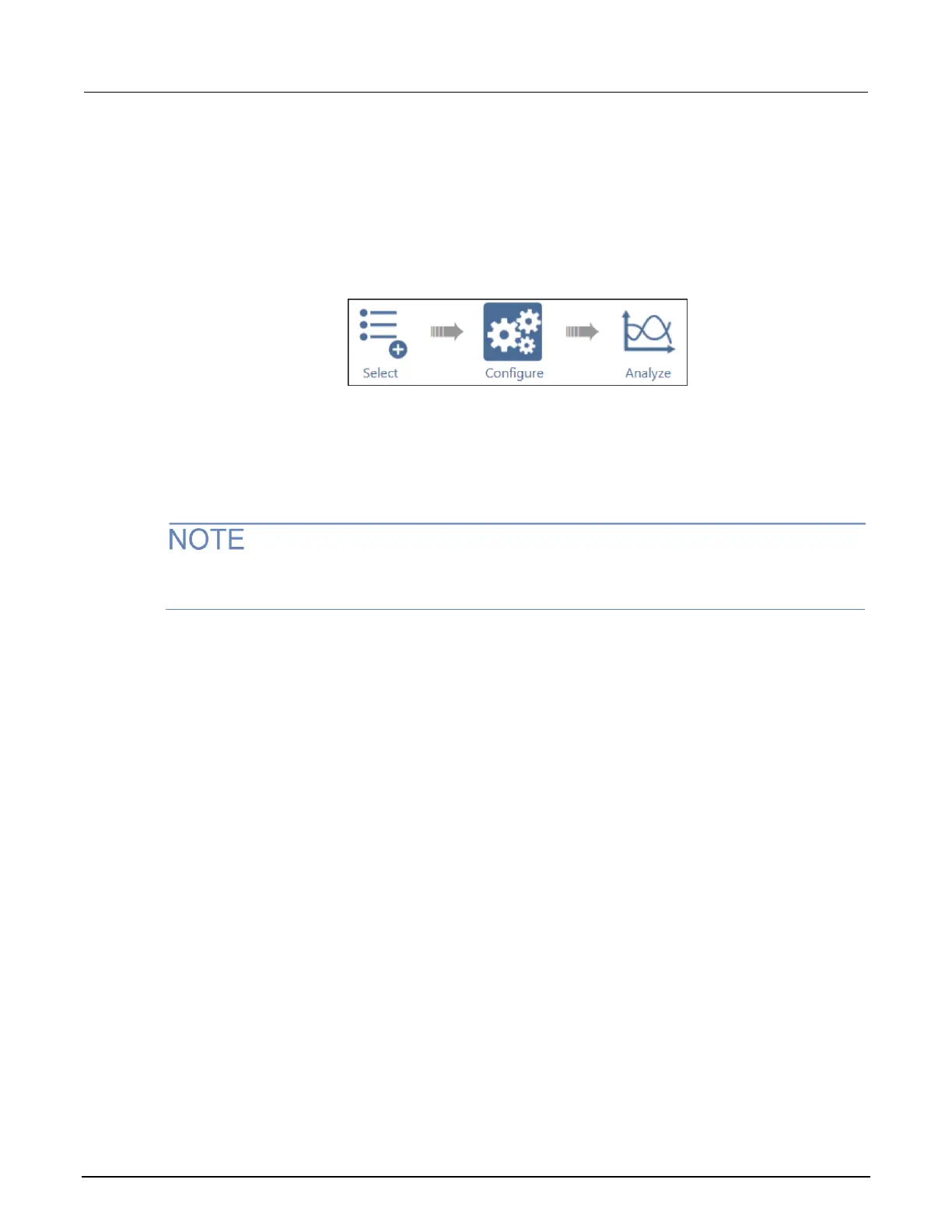

Figure 112: Configure highlighted
2. In the project tree, select the cviv-configure action.
3. In the CVU 2/4 Wire Mode settings, set the output mode of the 4200A-CVIV to Two Wire.
4. In the CVIV Display Config settings, change the name of each channel to match the
corresponding MOSFET terminal. These names appear on the display of the 4200A-CVIV.
This step is not necessary for the test to run, but it allows you to see which terminal each output is
connected to on the 4200A-CVIV display.
