Section 8: Use the 4200A-CVIV Multi-Switch 4200A-SCS Parameter Analyzer User's Manual
8-14 4200A-900-01 Rev. D/April 2020
3. In the CVU 2/4 Wire Mode box, set the output mode of the 4200A-CVIV to Two Wire.
4. In the CVIV Display Config box, change the name of each channel to match the corresponding
MOSFET terminal they are connected to.
5. In the CVIV Multi-Switch Channel Config box, set Ch3Mode to CV HI and the remaining three
terminals to CV LO.
Add a test for making C-V measurements
To add a test:
1. Choose Select.

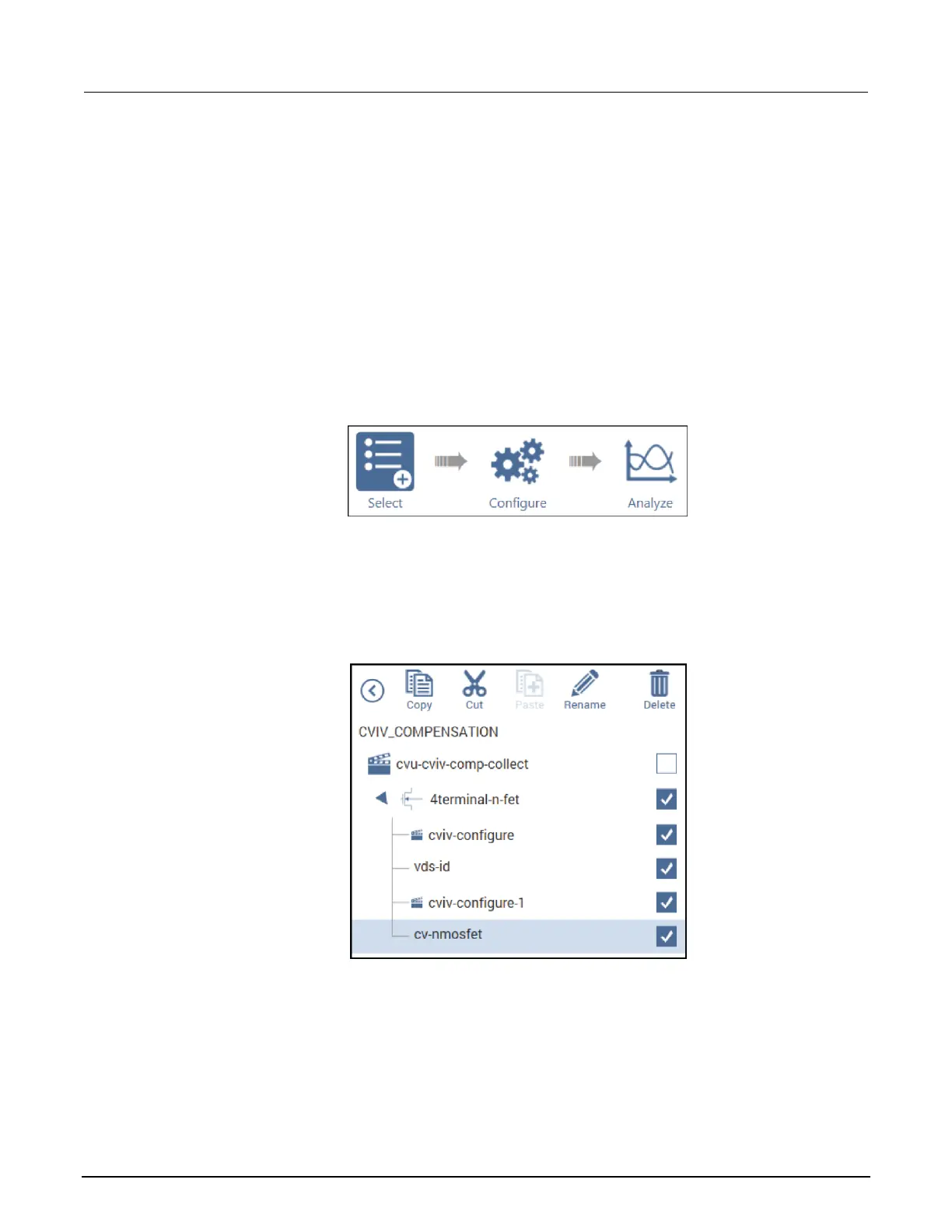

Figure 120: Select highlighted
2. Select Tests.
3. Type cv-nmosfet into the search bar, then select Search.
4. Select the cv-nmosfet test, then select Add to copy it to the project tree.
Figure 121: Project tree before enabling open compensation
