Section 9: PMU for pulsed I-V measurements on a MOSFET 4200A-SCS Parameter Analyzer User's Manual
9-6 4200A-900-01 Rev. D/April 2020
Search for and select an existing test
To search for and select an existing test:
1. Select Tests.
2. Type MOSFET into the search bar, then select Pulse in the Filters pane under Measurements.
3. Select the MOSFET Pulse I-V Drain Family of Curves (pulse-vds-id) test, then Add it to the
project tree. Notice that the device is automatically added.

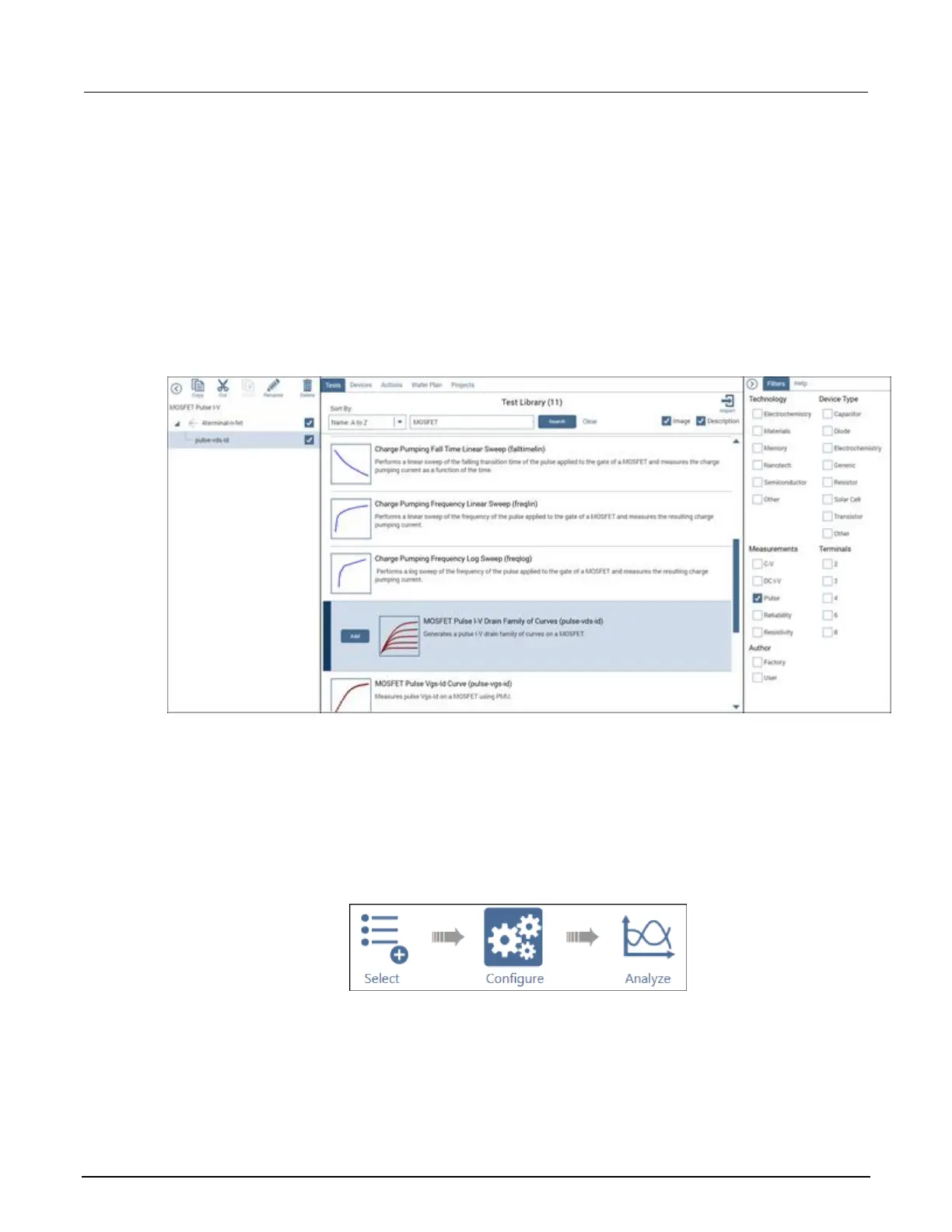

Figure 130: Selecting the MOSFET Pulse I-V Drain Family of Curves test from the Test library
Configure the test
To configure the test:
1. Select Configure.
Figure 131: Configure button highlighted
