Section 4: Use the RPM to switch the SMU, CVU, and PMU 4200A-SCS Parameter Analyzer User's Manual
4-10 4200A-900-01 Rev. D/April 2020
2. In the project tree, select the vfd test.
3. Adjust the Anode settings in the Key Parameters pane as needed.

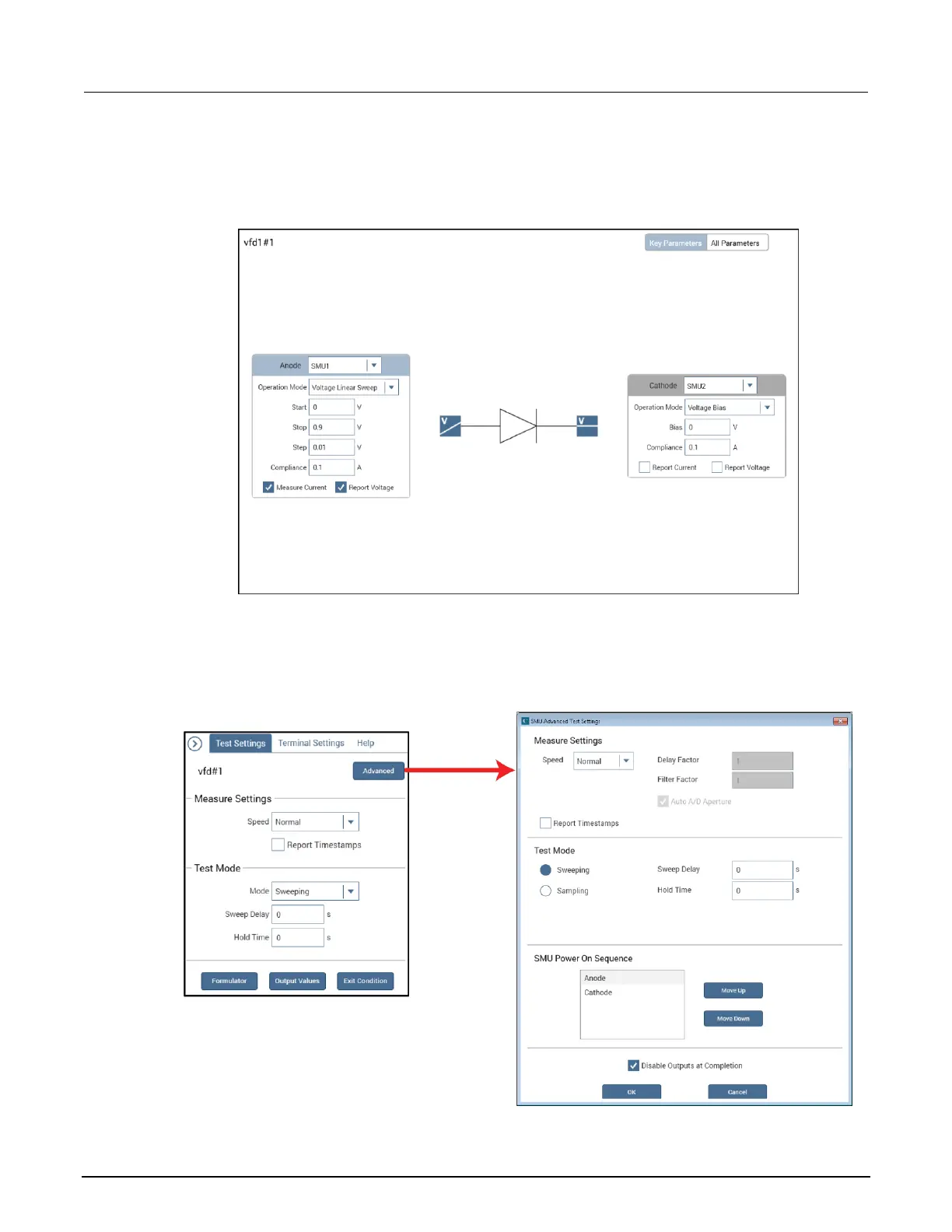

Figure 40: Forward I-V sweep, vfd terminal settings
4. In the Test Settings pane, select Advanced.
5. Adjust the parameters as needed. Be sure to include the delay between sweep steps.
Figure 41: Test Settings pane and Test Settings Advanced dialog box
