Section 5: Configure and use a Series 700 Switching System 4200A-SCS Parameter Analyzer User's Manual
5-10 4200A-900-01 Rev. D/April 2020
18. Select Save to save the system configuration.
19. Select System Configuration Summary, then scroll down to the Connections section. You need
the names from the Terminal ID column when setting the switching system connections in Clarius.
You can select Save Configuration As or Print Configuration to record the terminal IDs. The
default values for the most common instruments are shown in the next figure.

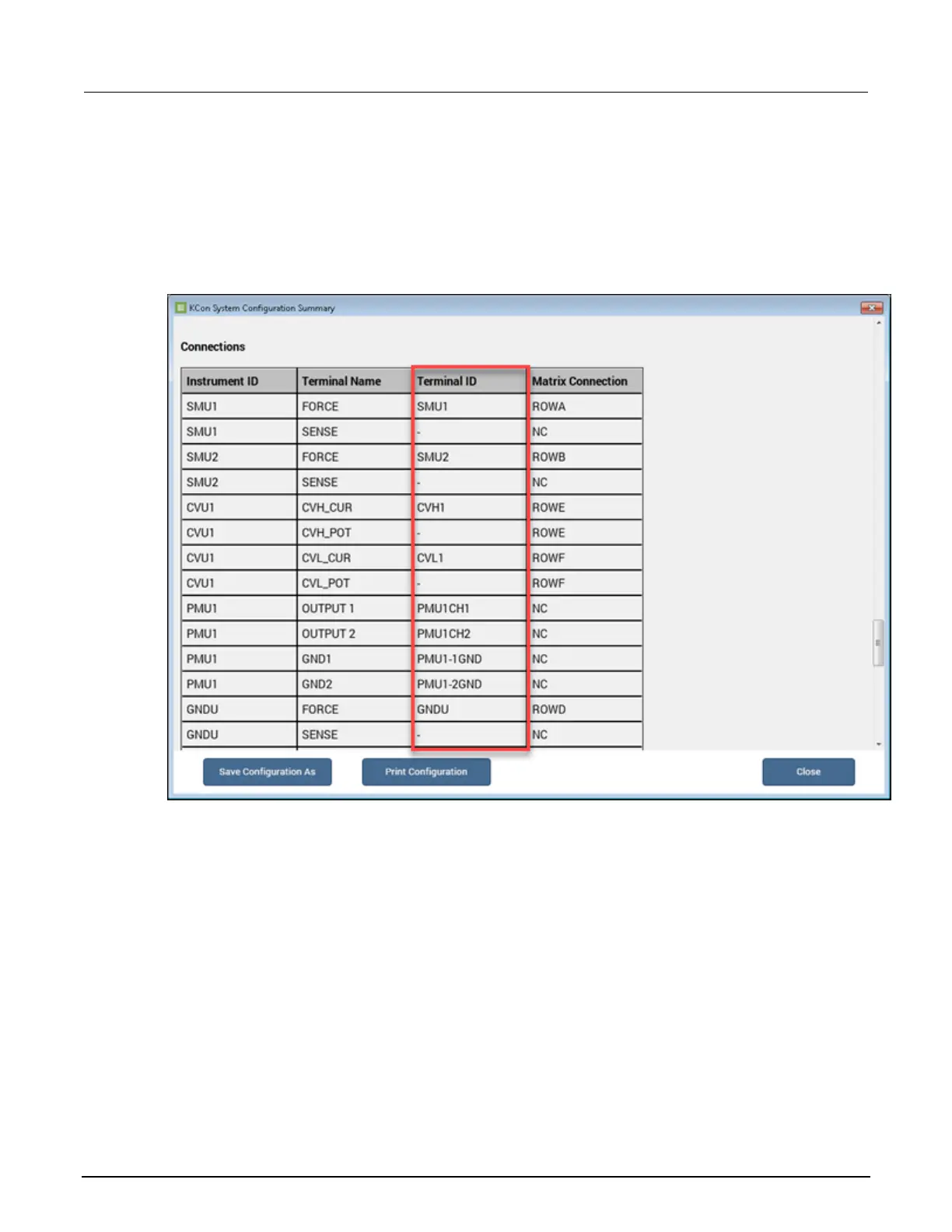

Figure 61: System Configuration Summary: Default Terminal ID Connections
20. Close the window when you are finished.
21. Close the KCon application.
