3. Make the following connections using the pairs of TermIdStr# and Pin# fields in the action:
▪ SMU1 – Pin 3
▪ SMU2 – Pin 2
▪ SMU3 – Pin 1
▪ GNDU – Pin 4
When you are finished, the Key Parameters view of the action should look like the next graphic. The
order of the instruments does not matter if each instrument is paired with the correct pin number.
In this example, assigning TermIdStr1 to SMU1 and Pin 1 to 3 connects SMU1 to Pin 3 on the matrix.

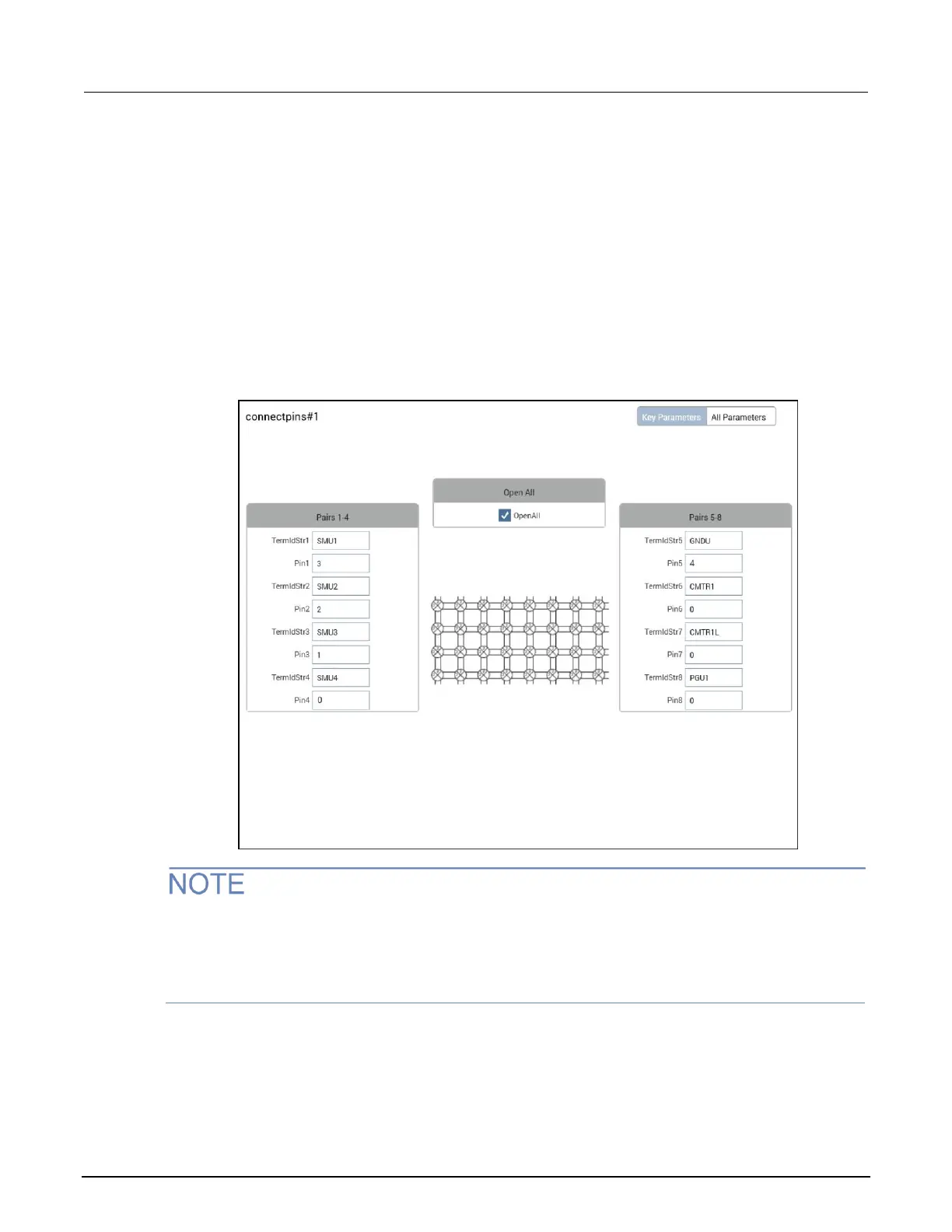

Figure 66: connectpins device connections
If the OpenAll check box is selected, the connectpins action opens all crosspoints before closing
the specified pairs. This is the default and is usually the preferred behavior. However, since
connectpins only has eight field pairs, the action can only close eight crosspoints during each run.
To close more crosspoints, use multiple connectpins actions.
